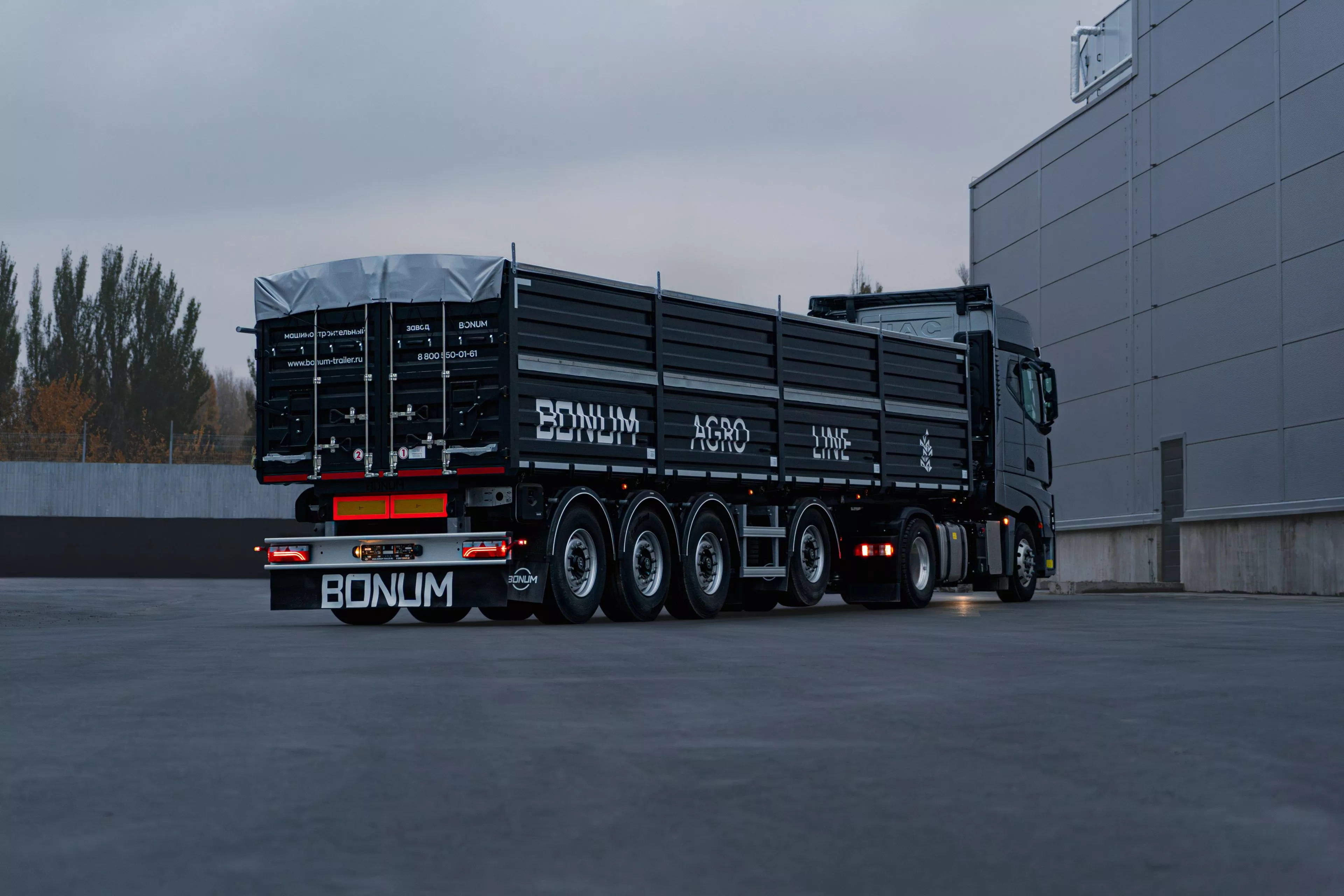

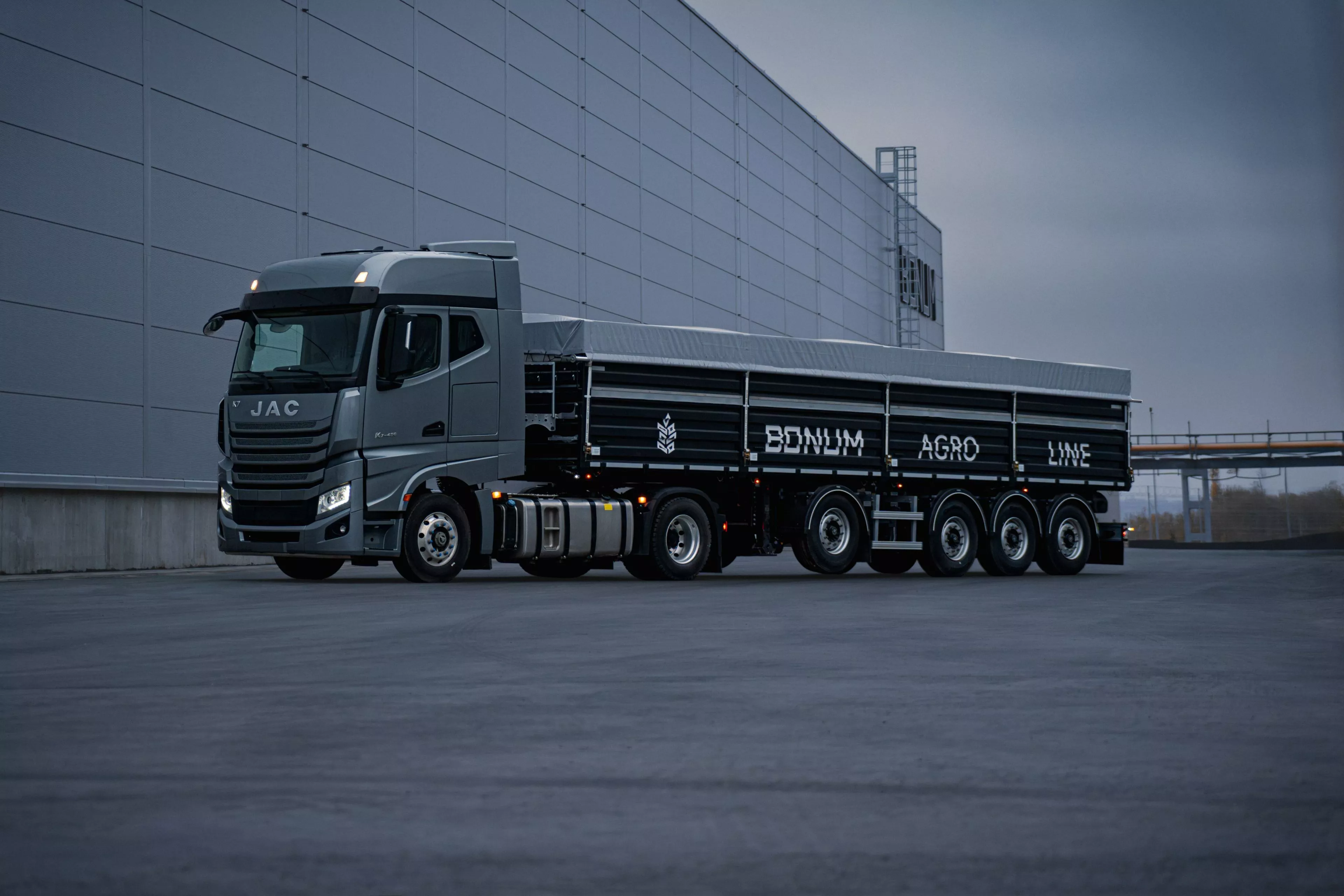

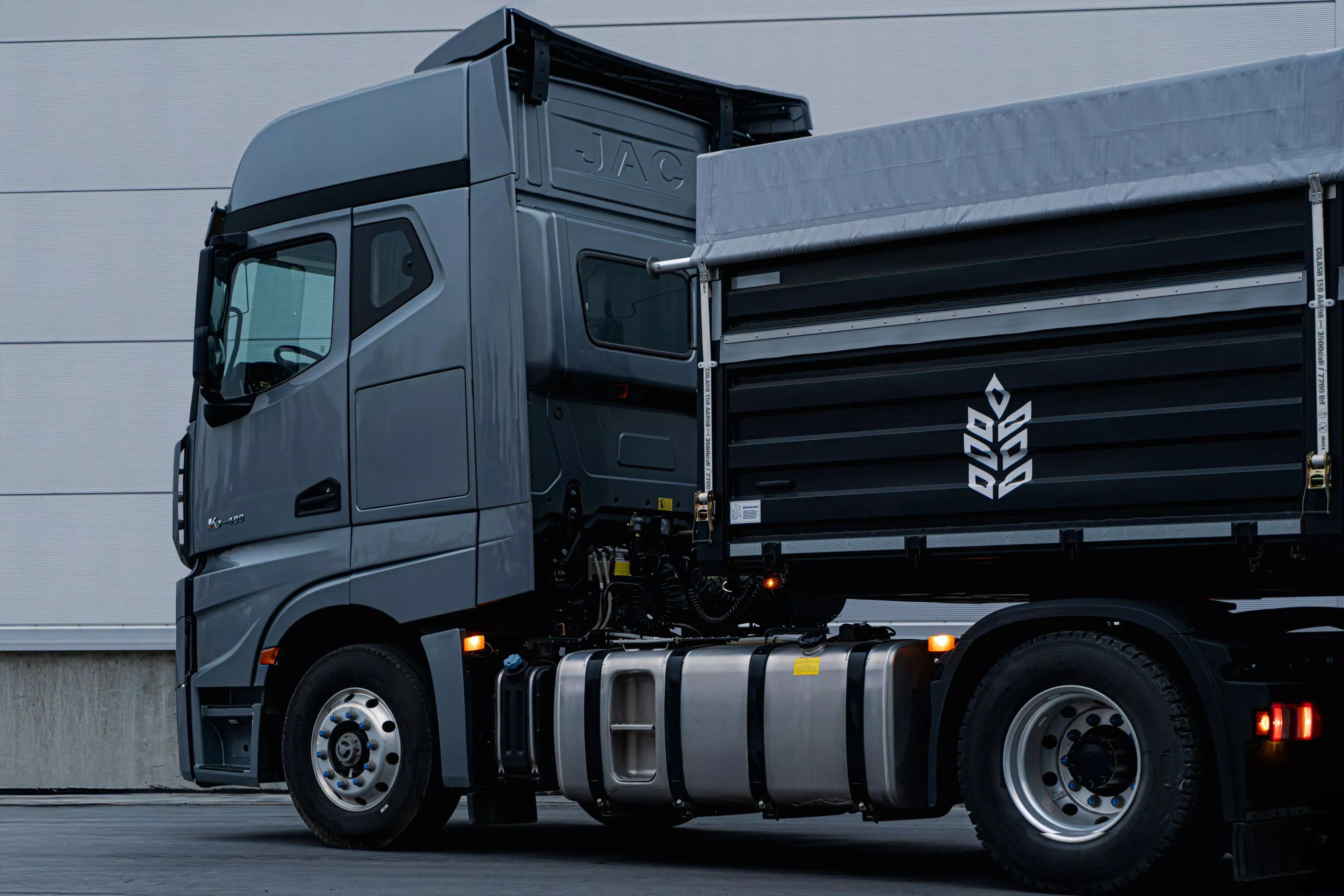

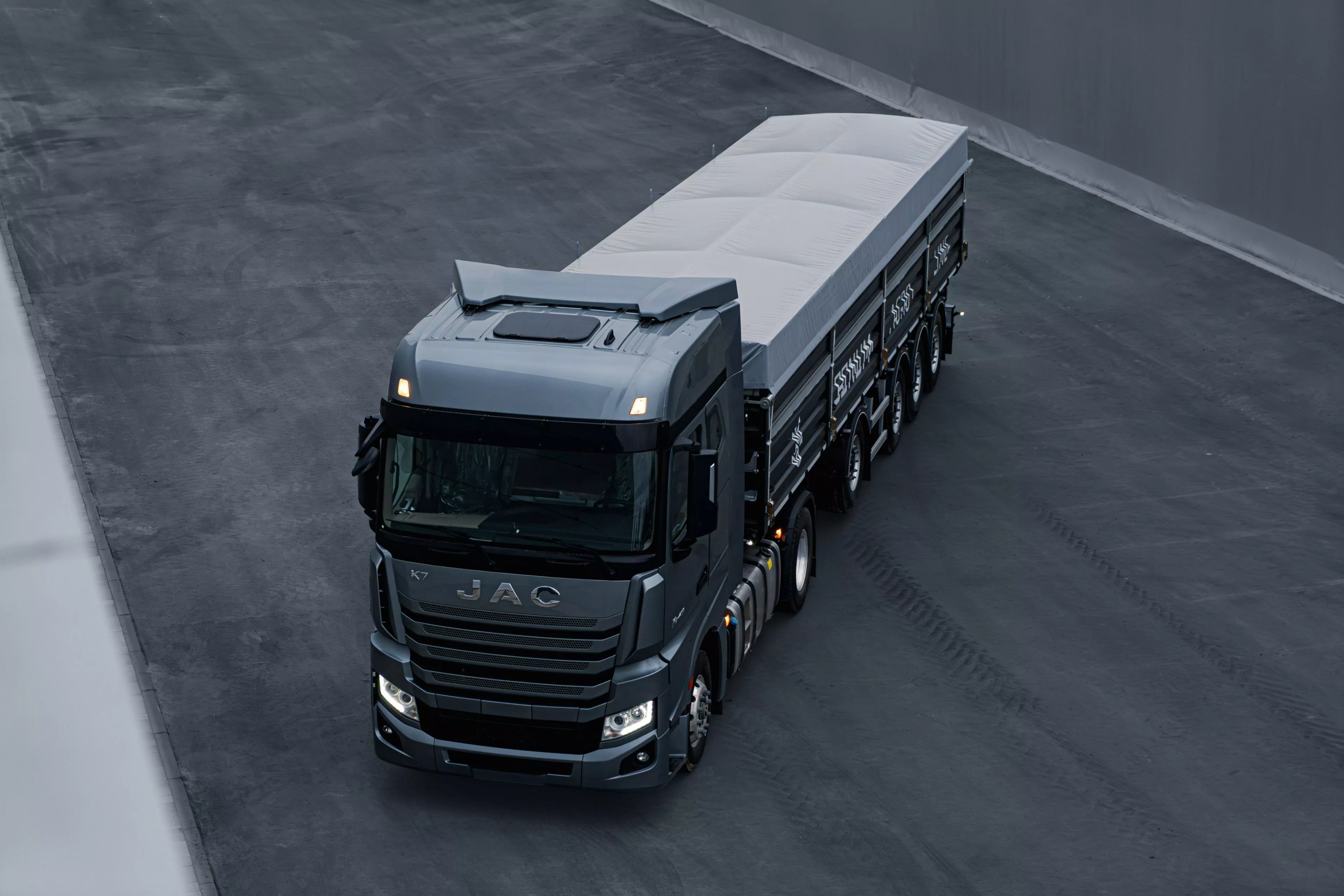

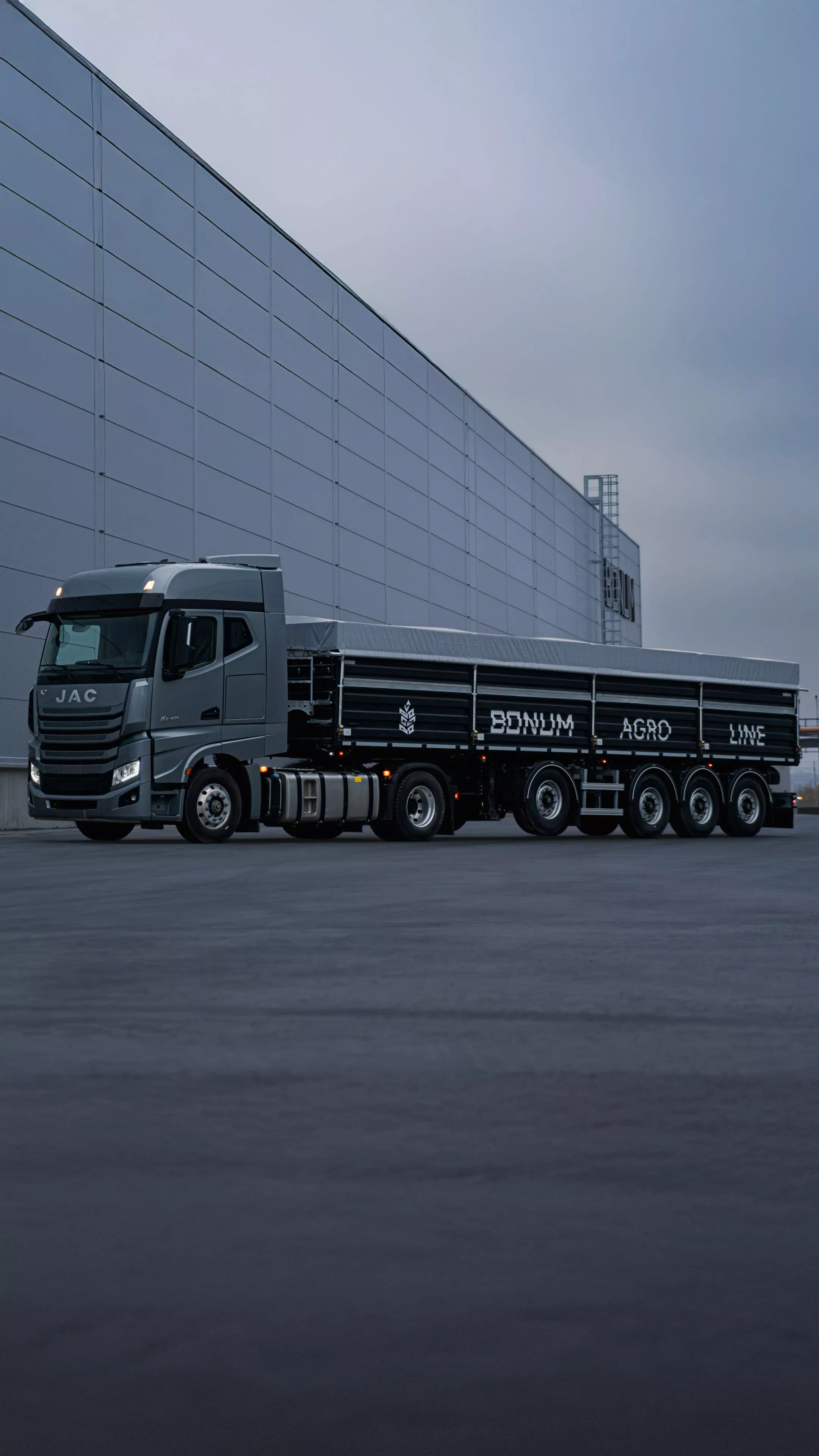

Lightweight onboard grain carriers 46 m3

Lightweight onboard grain carriers 46 m3
  • Volume
    46 m3
  • Number of axes
    3 axes / 3+1 axes / 4 axes
  • Curb weight
    from 5,900 kg

Technical data

  • Curb weight

    from 5,900 kg
  • Type of equipment

    on-board semi-trailer
  • Number of axes

    3 axes / 3+1 axes / 4 axes
  • Fifth-wheel coupling height

    1,150 mm
  • Overall dimensions

    • height: from 3,190 mm
    • length: from 11,600 mm
    • width: 2,550 mm
  • Brake system

    pneumatic two-circuit.
  • Electrical equipment

    Aspoeck / Hella / Ermax or similar.
  • Body

    • body with unloading on the left and right sides;
    • folding side boards with an upper hitch;
    • thickness of the side profile - 1.5 mm ("BONUM" side);
    • locking fittings for Suer (Germany)/ Hildebrand (Germany) / Rapid (Germany) or similar;
    • each side opens separately and is fixed in the open position;
    • rubber strip in the upper part of the folding sides (to protect the hinge hinges from precipitation);
    • steps on the rear wall of the body for canopy maintenance;
    • steps on the front wall inside the body for access inside;
    • rigid ties inside the body to preserve the geometry of the body;
    • rubber seals on the inner perimeter of the sides to prevent spillage of cargo.
  • Canopy and fastening system

    • PVC canopy with a density of 630-680 gr./m2 (color as agreed);
    • the direction of unwinding of the awning - to the right side (to the left side is an option);
    • canopy overhang on each side - 40 cm (30 cm is an option)
    • fixing the canopy with the help of tension belts and rattles on the body racks;
    • winding device of the canopy made of aluminum profile with a rotating handle;
    • canopy platform in the front part of the body;
    • arches of the canopy in the "house" form on each pair of body racks, the central longitudinal inserts-pipes between the arches – aluminum, quick-detachable.
  • Suspension and tires

    • 3 axes / 3+1 axes / 4 axes;
    • drum/disc type brake mechanisms;
    • tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 8 pcs.
  • Painting

    THE SEMI-TRAILER IS PAINTED ACCORDING TO THE PROPRIETARY THREE-STAGE PAINTING SYSTEM "PRIME SYSTEM":
    • surface treatment in a shot blasting chamber;
    • coating with a primer containing anticorrosive elements;
    • painting with premium enamel.
View all
Chassis
Other
Optional equipment
Chassis
  • welded frame of reinforced construction of two I-beam spars connected by cross beams;
  • the landing gear is two-speed with manual one-way drive;
  • pin with a diameter of 2” JOST (Germany) of international type with a base plate or an analog;
  • removable spare wheel basket;
  • two tow loops in the rear of the frame;
  • rear protective device;
  • galvanized brackets for attachments.
Other
individual wings with brackets Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
6 pcs pcs
rear wheel mudguards Domar (Italy) or similar
2 pcs pcs
Lokhen (Italy) / Parlok (Finland) / Lago (Italy) water tank with faucet and dispenser for liquid soap
1 pcs pc.
tool box Daken (Italy) / Parlok (Finland) / Lago (Italy) or an analog with a locking mechanism
1 pcs pc.
two anti-rollback stops Lokhen (Italy) / Parlok (Finland) / Lago (Italy) or similar
contour reflective marking with premium quality tape
Takler anti-rolling protection (Italy) or equivalent
Optional equipment
They are selected based on your wishes and the specifics of your business
Painting of the semi-trailer according to the customer's layout (branding)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Tool box Daken Welvet 1000 (81008022) 1030x500x455 mm, 155.5 l
Grain tank side
Rear opening side
Rear swing gate (including folding upper beam)
Installation of an additional 2" pin with a plate
(plate 10 mm)
Non-standard semi-trailer paint color
