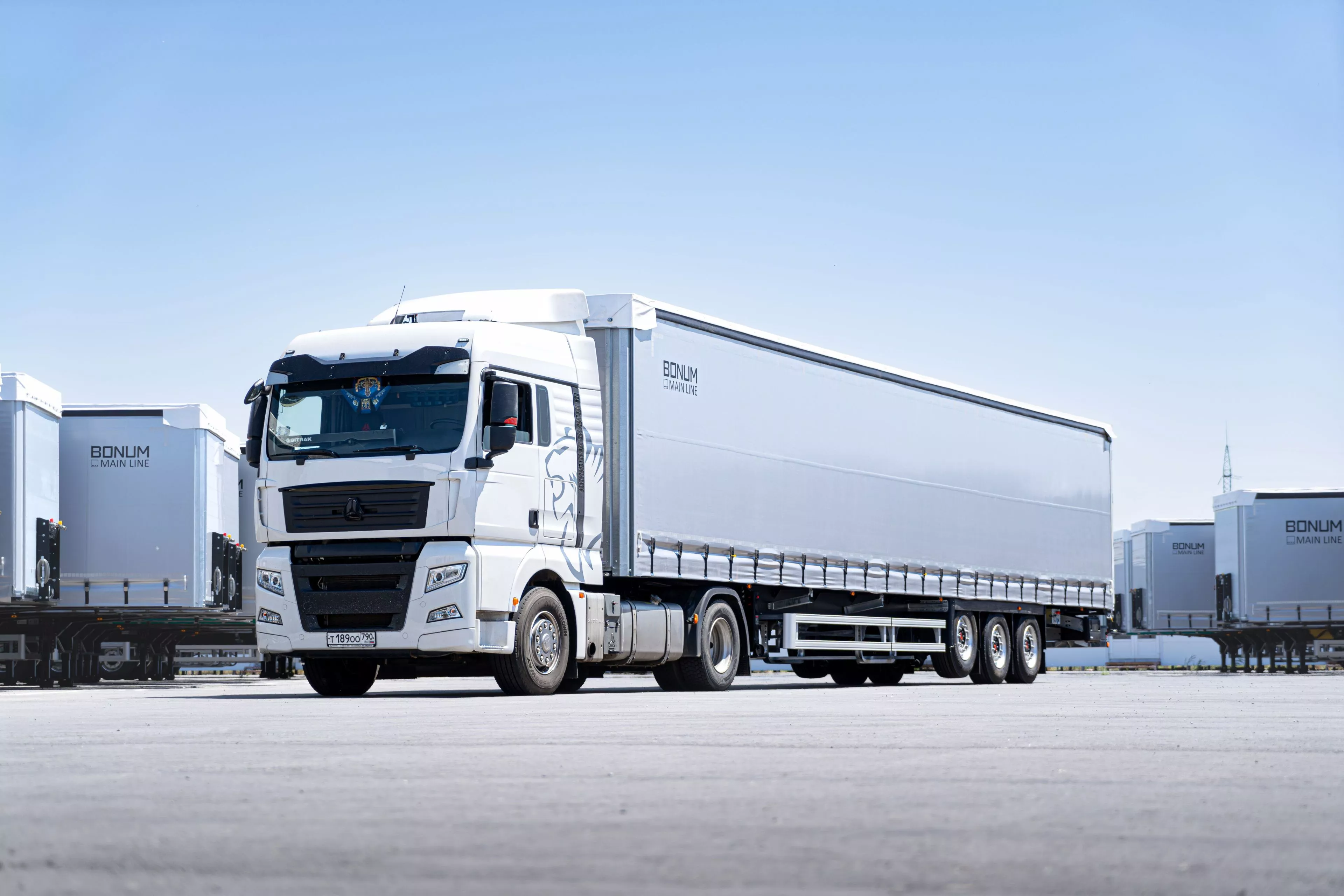

Curtain semi-trailer 16,52 m with outrigger axle
Curtain-side semi-trailer 13,62 m

Curtain semi-trailer 16,52 m

914296-04
Curtain semi-trailer 16,52 m
price list order
  • Volume
    111 m3
  • Number of axes
    3 axles
  • Curb weight
    from 7,750 kg

Photo gallery

Curtain semi-trailer 16,52 m
Curtain semi-trailer 16,52 m Curtain semi-trailer 16,52 m
Curtain semi-trailer 16,52 m
Curtain semi-trailer 16,52 m Curtain semi-trailer 16,52 m
Curtain semi-trailer 16,52 m
Curtain semi-trailer 16,52 m

Technical data

  • Volume

    111 m3.

  • Overall dimensions

    length 16 820 mm;

    width 2 550 mm;

    height 4 000 mm.

  • Type of equipment

    curtain semi-trailer.

  • Curb weight

    from 7 750 kg.

  • Electrical equipment

    Aspoeck / Hella / Ermax or similar.

  • Brake system

    pneumatic two-circuit.

  • Painting

    frame is painted according to the three-stage painting system “Prime System”
    • surface treatment in a shot blasting chamber;
    • coating with a primer containing anticorrosive elements;
    • painting with premium european quality enamel.

  • Suspension and tires

    • 3 axles;
    • drum/disc brake mechanisms;
    • 6 wheels 385/65 R22.5 (tires on manufacturer’s choice).

  • Awning and roof

    • side tarpaulin (gray/silver) made of high-strength PVC material with density 900 gr./m2(EU production);
    • side tarpaulin tensioning ratchets (EU production) in the rear on both sides;
    • roof tarpaulin (white) made of PVC material with a density of 680 gr./m2(EU production);
    • sliding roof (EU production).

  • Add - on

    • aluminium front wall and steel corner posts;
    • aluminium rear gates (with integrated turn rods and embedded door locks) and steel posts;
    • 4 pairs of sliding pillars with timber holders;
    • frame floor with 27...30 mm laminated transport plywood;
    • cable TIR;
    • reflective conspicuity tape;
    • plugin laths.
View all
Construction
Equipment
Extra options
Construction
  • reinforced welded high-strength steel frame;
  • 2″ kingpin JOST / SAF / OMS (or analogue);
  • outer frame sockets for 80×80 mm posts;
  • practical post depot / box;
  • hidden lashing rings in outer frame;
  • two towing lugs in the rear frame;
  • 2-speed landing gear with manual drive;
  • wheel carrier (for two spare wheels);
  • lateral protection with aluminum profile;
  • rear underrun protection with rear lights panel;
  • pullout ladder.
Equipment
Domar / Parlok / Lago mudguards/half-wings (or analogue)
2 pcs Lokhen wheel chocks (or analogue)
2 pcs pcs
1 pcs Daken / Parlok / Lago toolbox with locks (or analogue)
1 pcs pc.
Extra options
They are selected based on your wishes and the specifics of your business
Painting of the semi-trailer according to the customer's layout (branding)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Installation of a metal tool box Bawer 550х440х330 (TD251549)
Installation of a metal tool box Bawer 730х580х470 (TD252077)
Tool box Daken Welvet 1000 (81008022) 1030x500x455 mm, 155.5 l
Tool box Daken Welvet 500 (81002) 480x400x400 mm, 39.5 l
Galvanized cones (manufactured in Russia) 10 pcs. 80x80x2300 mm
Installation of pockets for danger signs (3 diamonds)
Installation of a pencil case for a fire extinguisher (including an OP-6 fire extinguisher)
TIR version of the curtain semi-trailer

Equipment

Domar / Parlok / Lago mudguards/half-wings (or analogue)
2 pcs Lokhen wheel chocks (or analogue)
2 pcs pcs
1 pcs Daken / Parlok / Lago toolbox with locks (or analogue)
1 pcs pcs

Construction

  • reinforced welded high-strength steel frame;
  • 2″ kingpin JOST / SAF / OMS (or analogue);
  • outer frame sockets for 80×80 mm posts;
  • practical post depot / box;
  • hidden lashing rings in outer frame;
  • two towing lugs in the rear frame;
  • 2-speed landing gear with manual drive;
  • wheel carrier (for two spare wheels);
  • lateral protection with aluminum profile;
  • rear underrun protection with rear lights panel;
  • pullout ladder.

Extra options

They are selected based on your wishes and the specifics of your business
Painting of the semi-trailer according to the customer's layout (branding)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Installation of a metal tool box Bawer 550х440х330 (TD251549)
Installation of a metal tool box Bawer 730х580х470 (TD252077)
Tool box Daken Welvet 1000 (81008022) 1030x500x455 mm, 155.5 l
Tool box Daken Welvet 500 (81002) 480x400x400 mm, 39.5 l
Galvanized cones (manufactured in Russia) 10 pcs. 80x80x2300 mm
Installation of pockets for danger signs (3 diamonds)
Installation of a pencil case for a fire extinguisher (including an OP-6 fire extinguisher)
TIR version of the curtain semi-trailer
