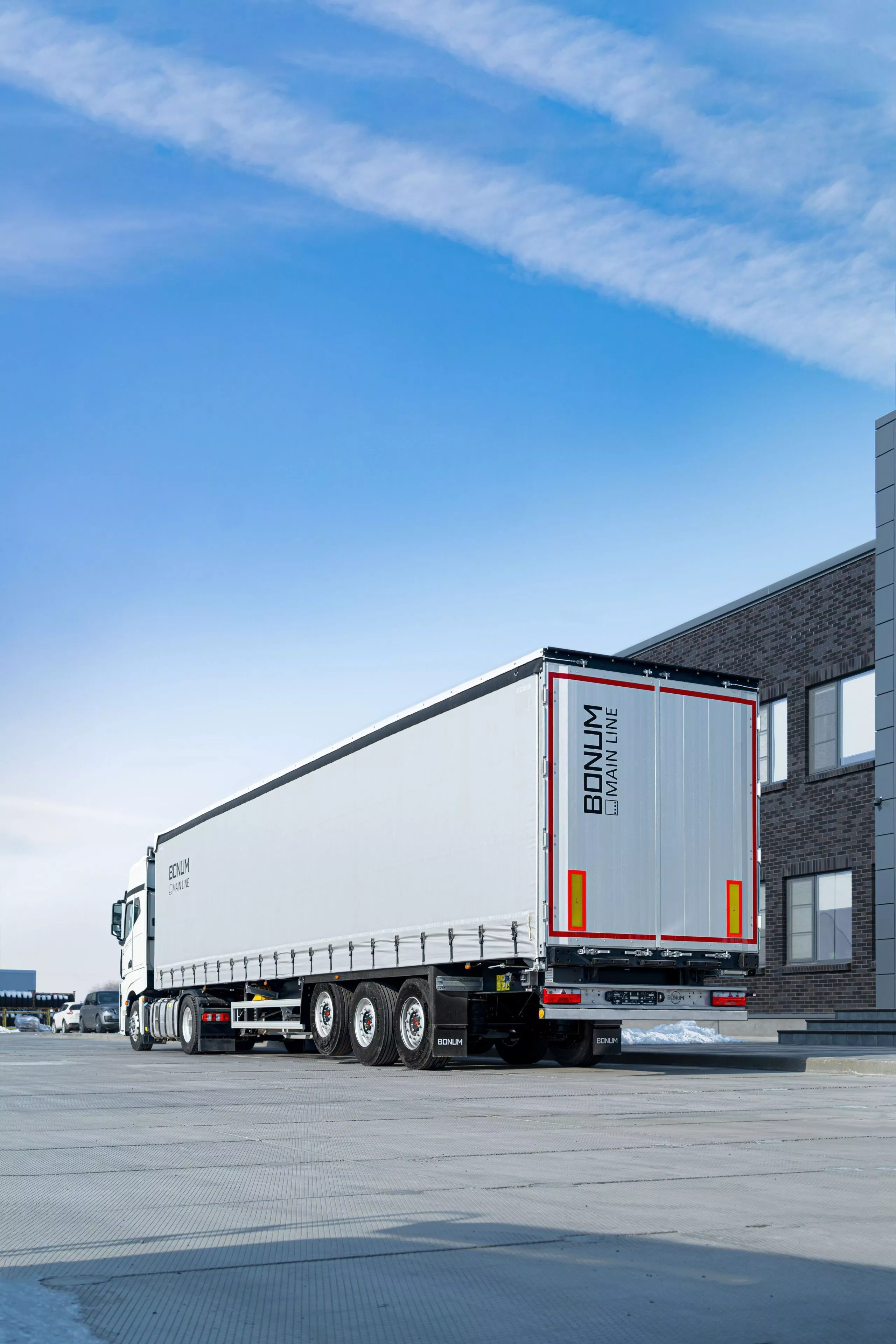

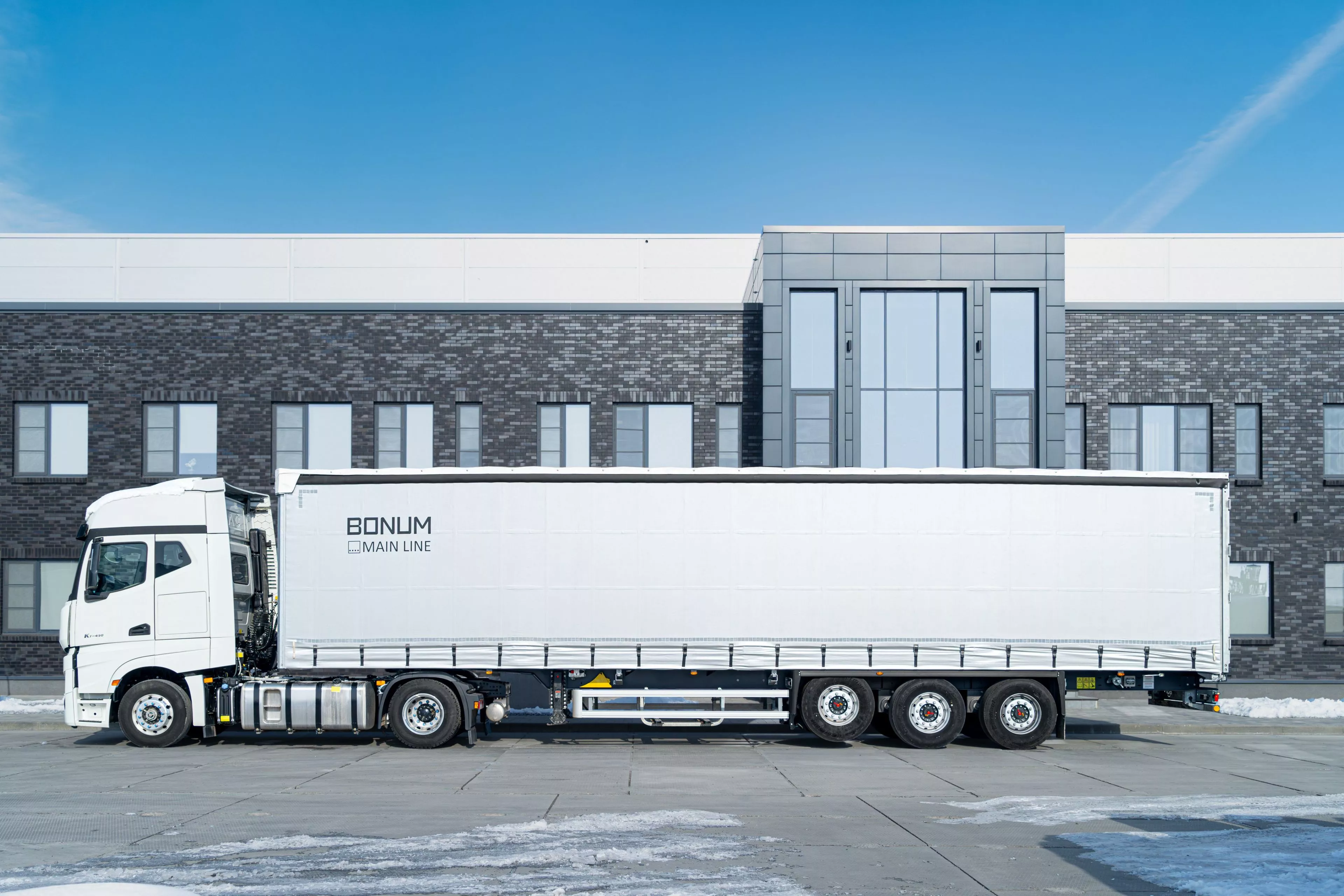

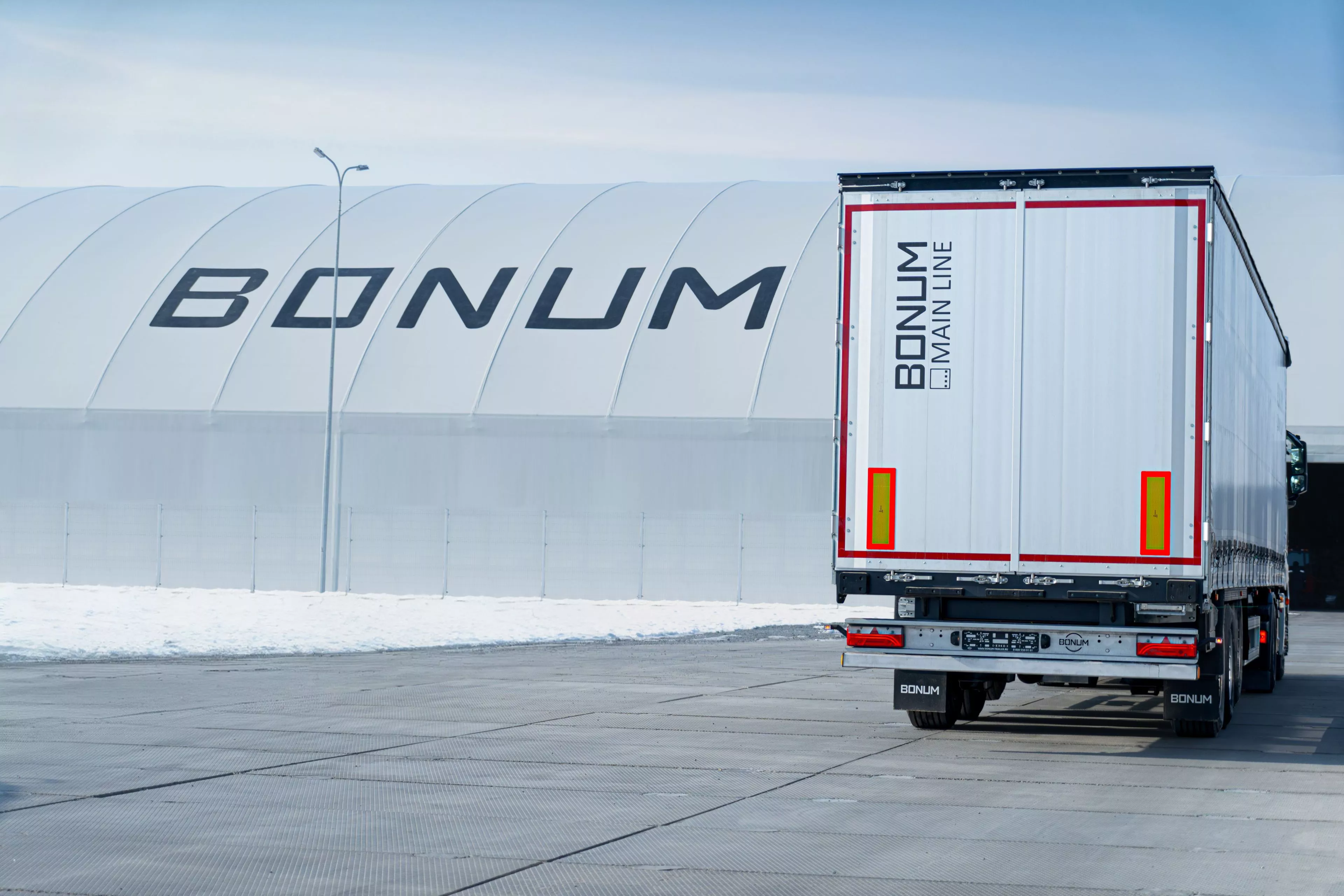

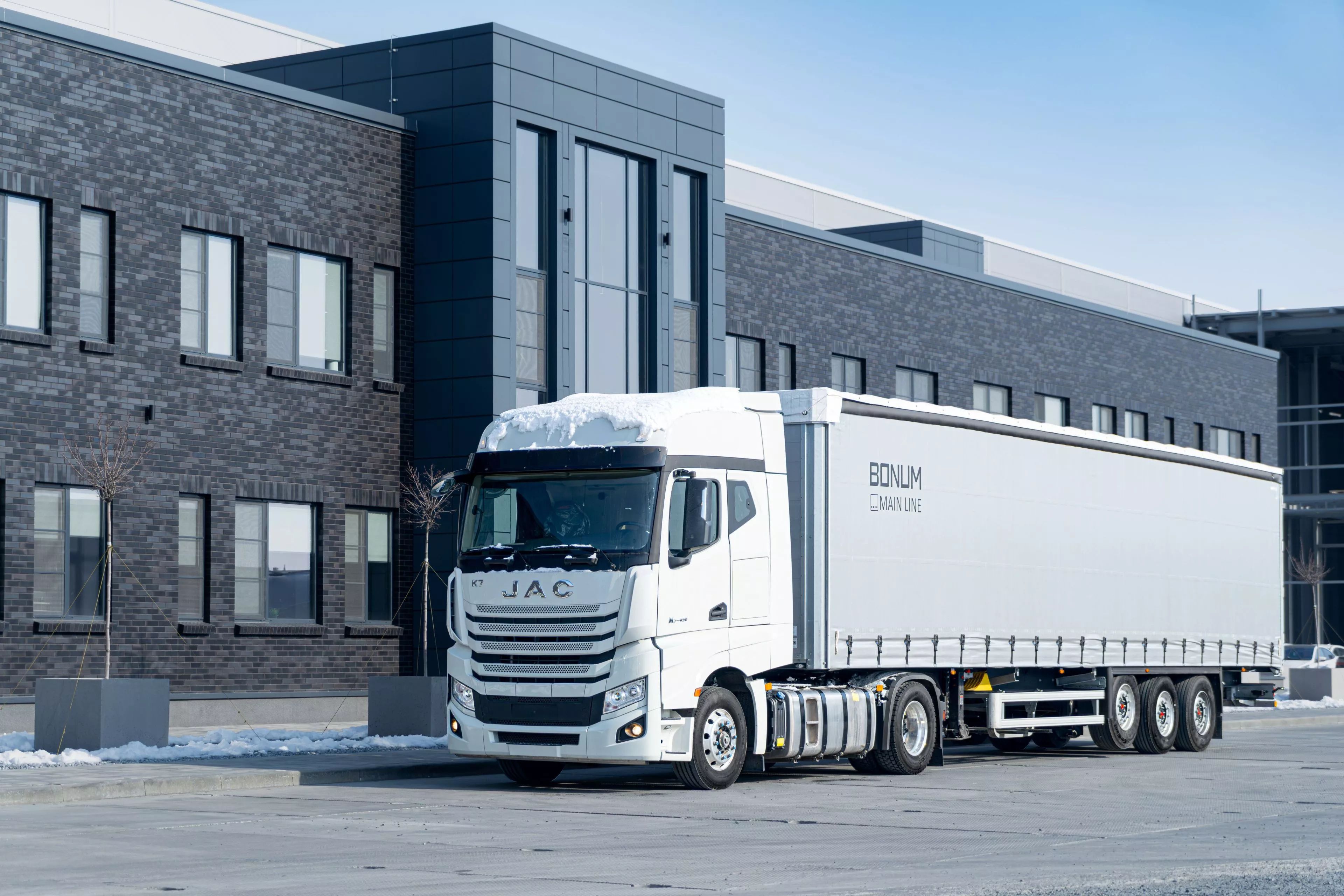

Curtain semi-trailer 13,62 m
Photo gallery
Technical data
-
Volume
91 m3. -
Overall dimensions
length 13,920 mm;
width 2,550 mm;
height 4,000 mm. -
Type of equipment
awning semi-trailer. -
Curb weight
from 6,700 kg.
-

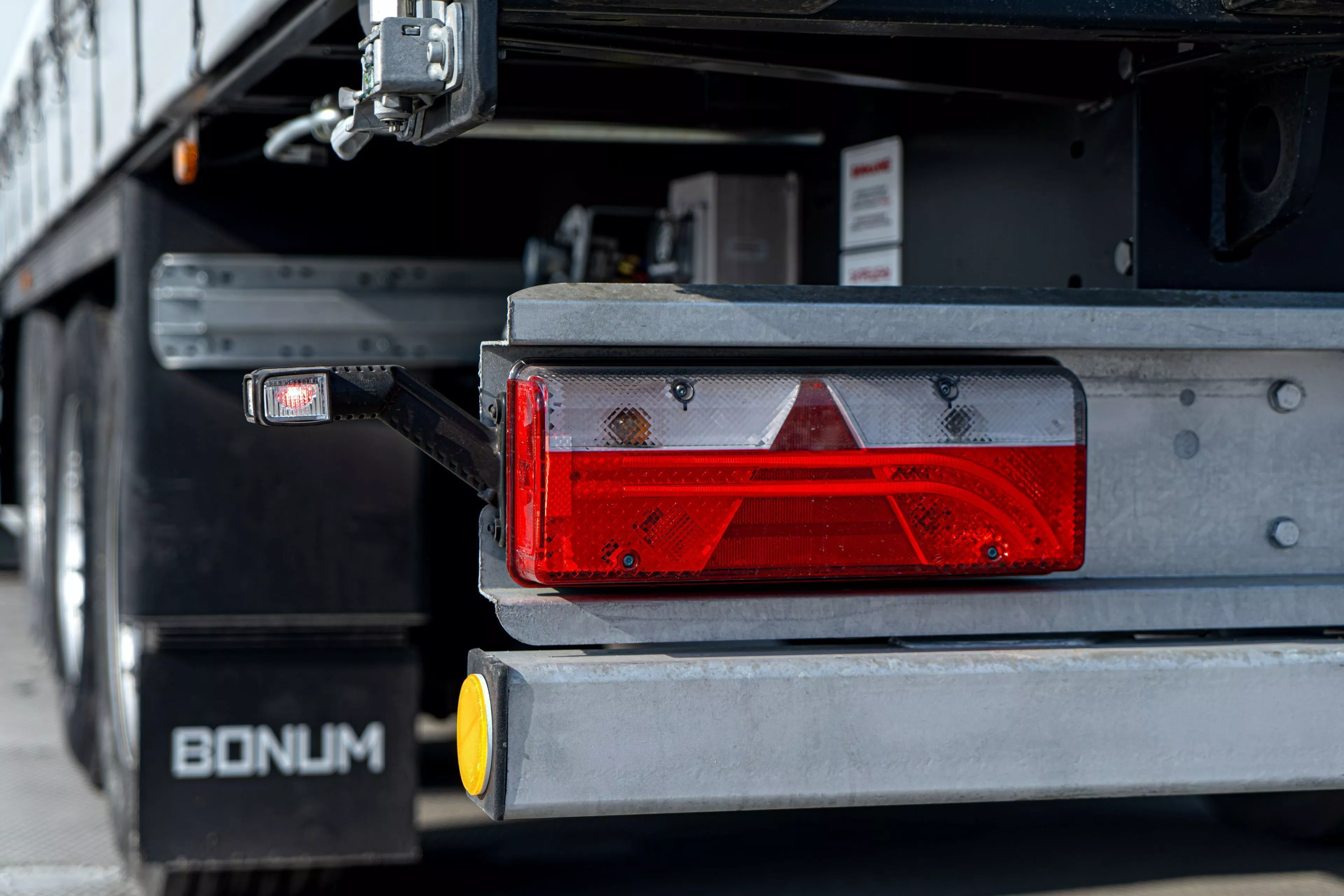

Electrical equipment
Aspoeck / Hella / Ermax or similar.
-
Brake system
pneumatic two-circuit. -
Painting
the frame is painted according to the proprietary three-stage painting system
«Prime System»
- surface treatment in a shot blasting chamber;
- coating with a primer containing anticorrosive elements;
- painting with premium enamel of European production.
-

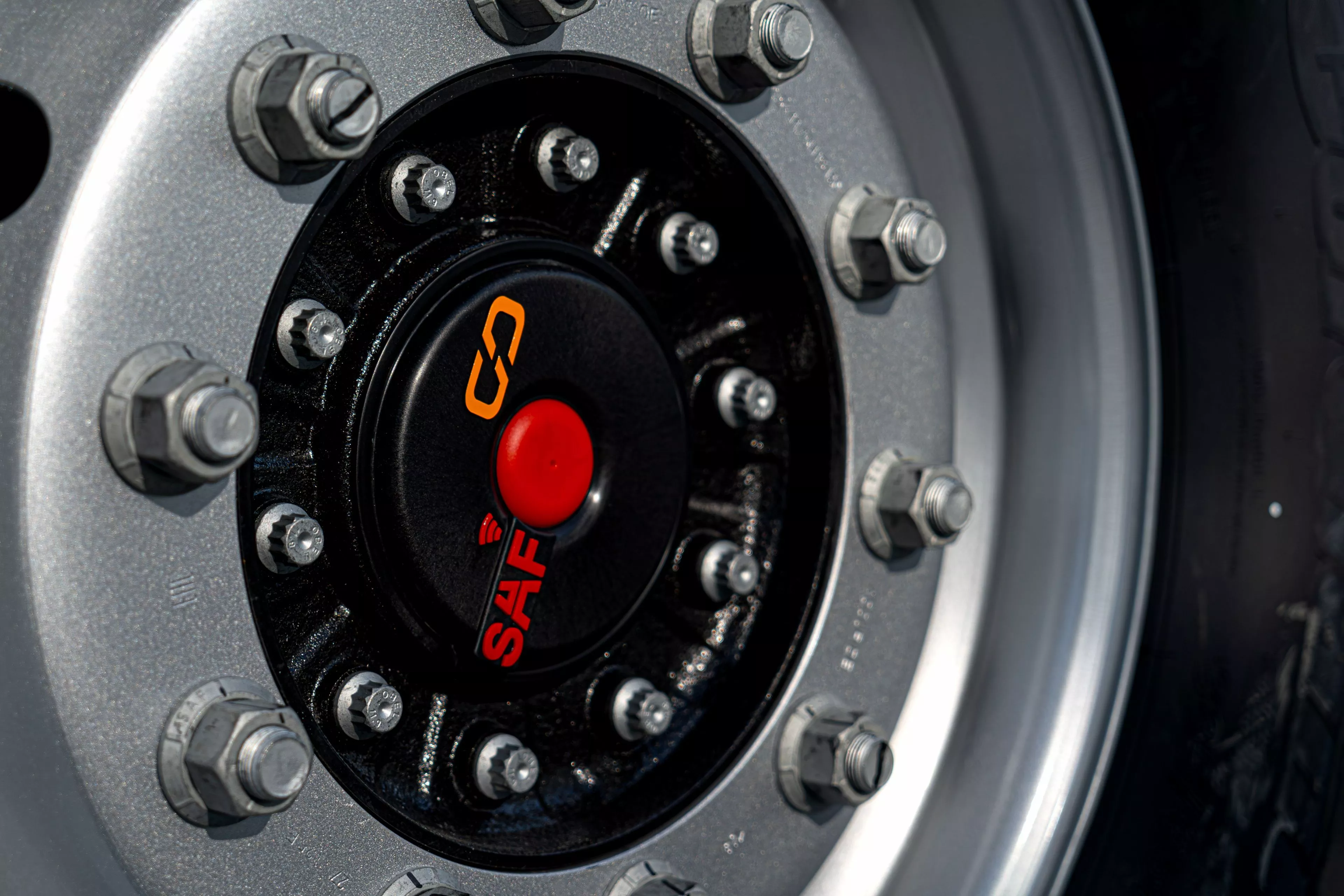

Suspension and tires
- 3 axes;
- drum/disc type brake mechanisms;
- tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 6 pc.
-
Awning and roof
- side awning (gray/silver) made of high-strength PVC fabric 900 gr./m2 of European production;
- side awning tensioning mechanisms (European production) – in the rear on both sides;
- roof awning (white) made of PVC fabric with a density of 680 gr./m2 of European production;
- movable roof of European production.
-
Add - on
- front portal made of aluminum profile with steel posts;
- rear aluminum swing gates with 4 locks (2 per leaf) and steel posts;
- 3 pairs of side sliding racks with pockets under the crate;
- laminated plywood floor with a thickness of 27-30 mm;
- sealing cord;
- reflective marking;
- crate.
