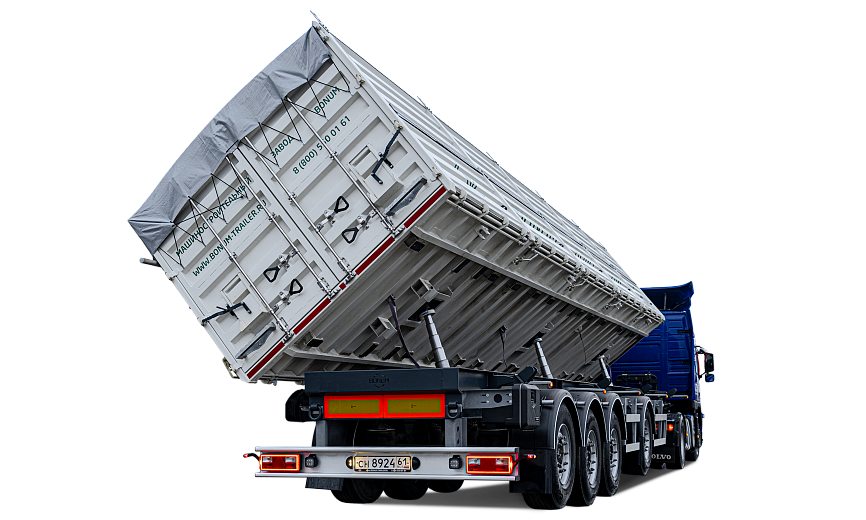

Grain dump trailer 46-58 m3

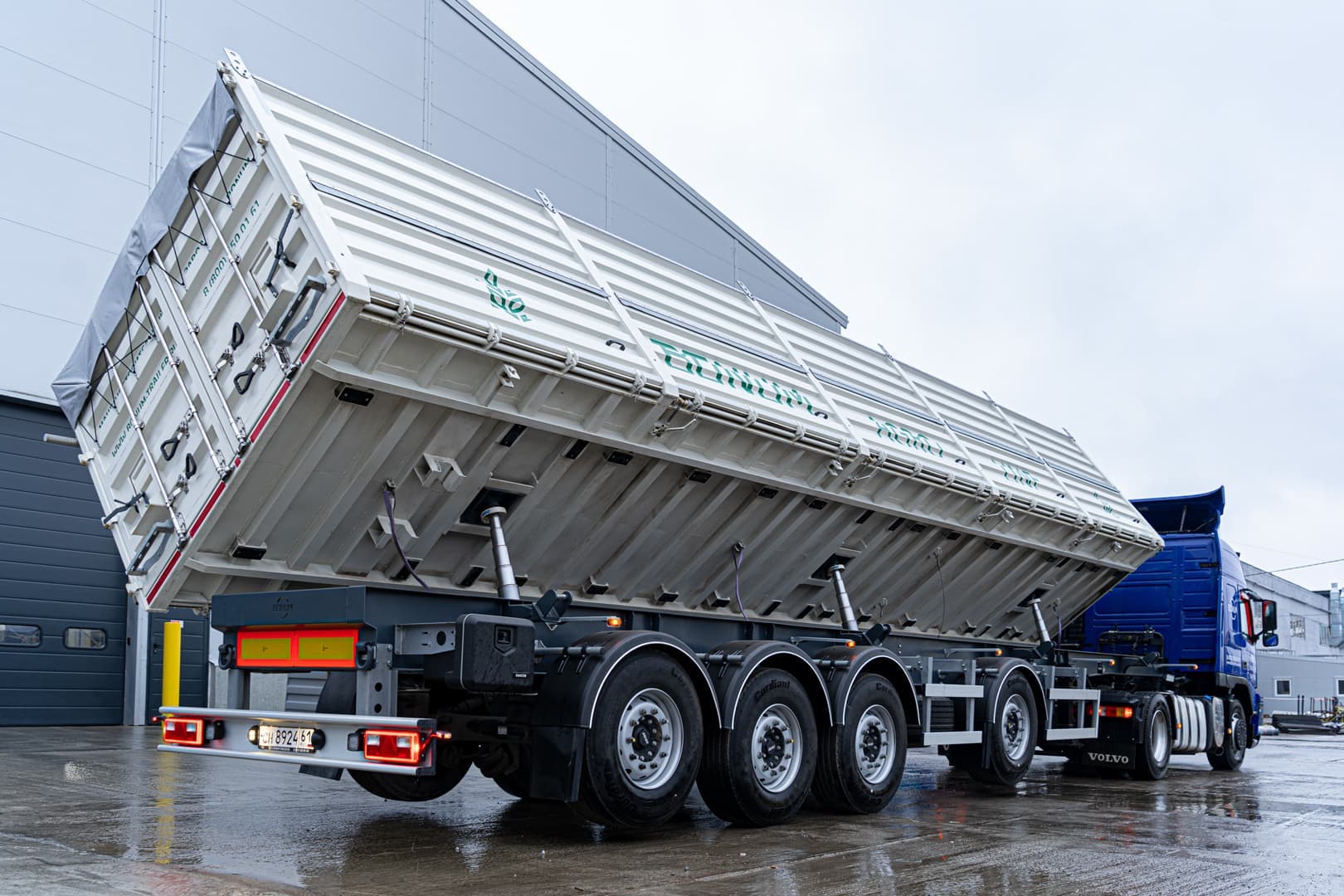

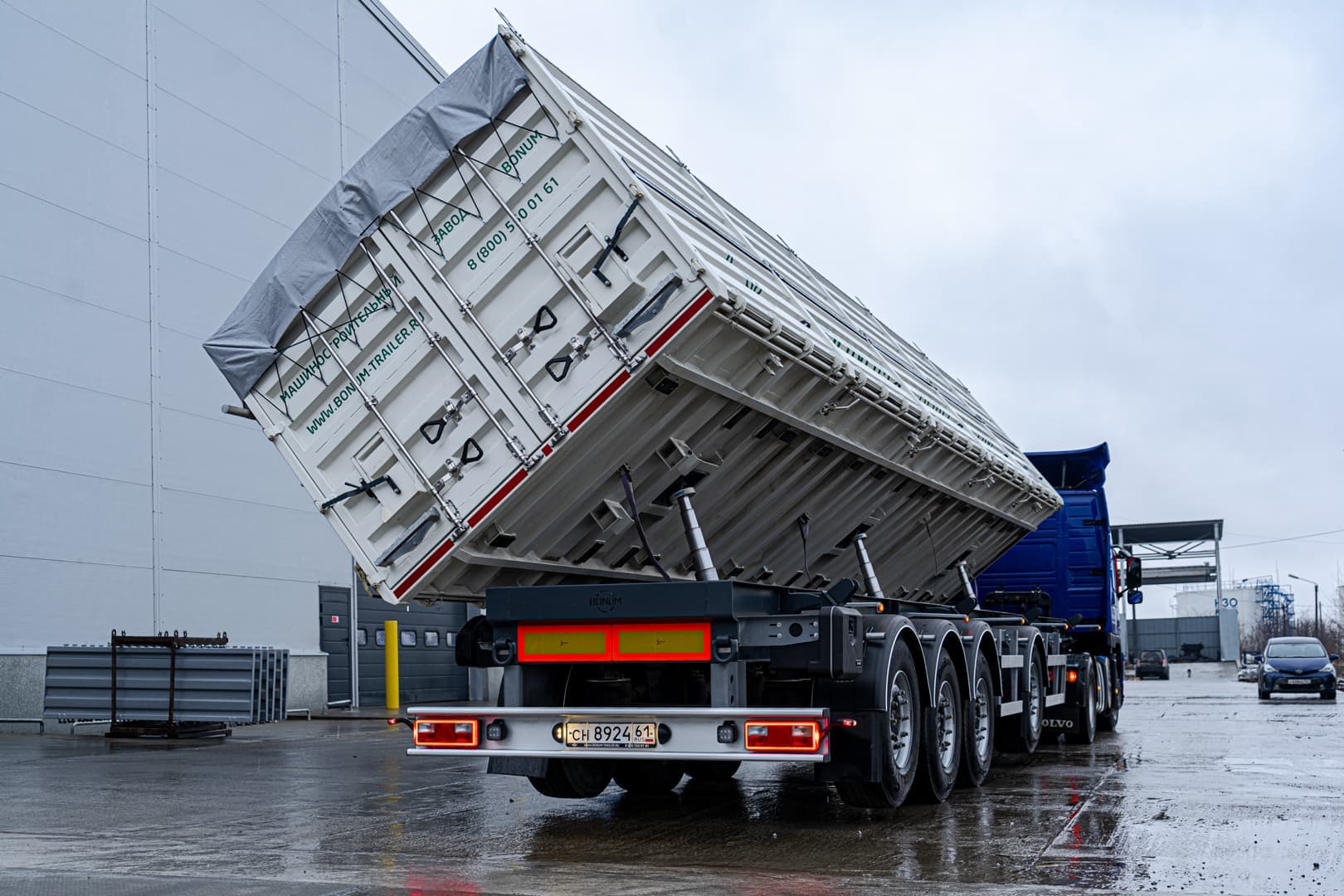

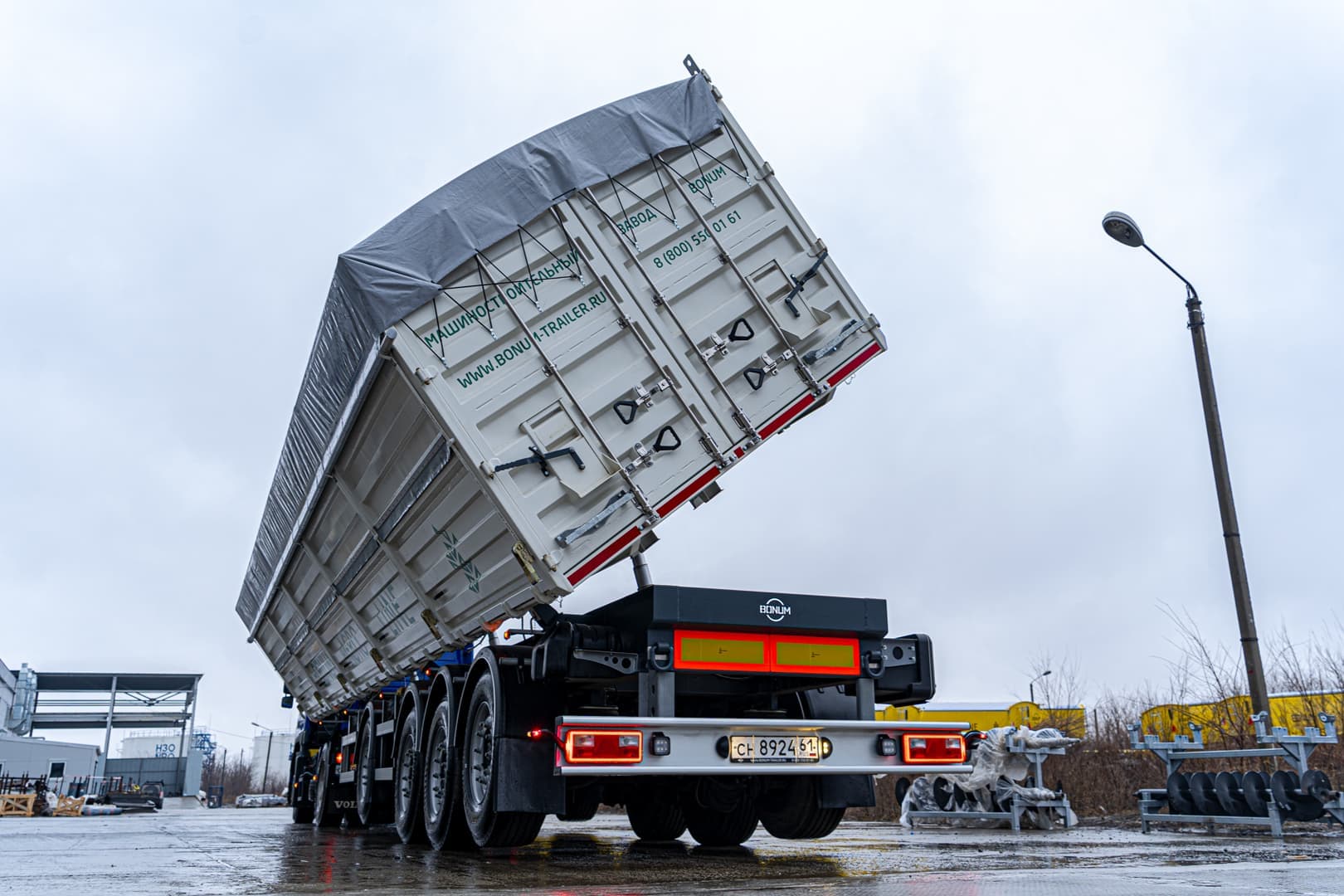

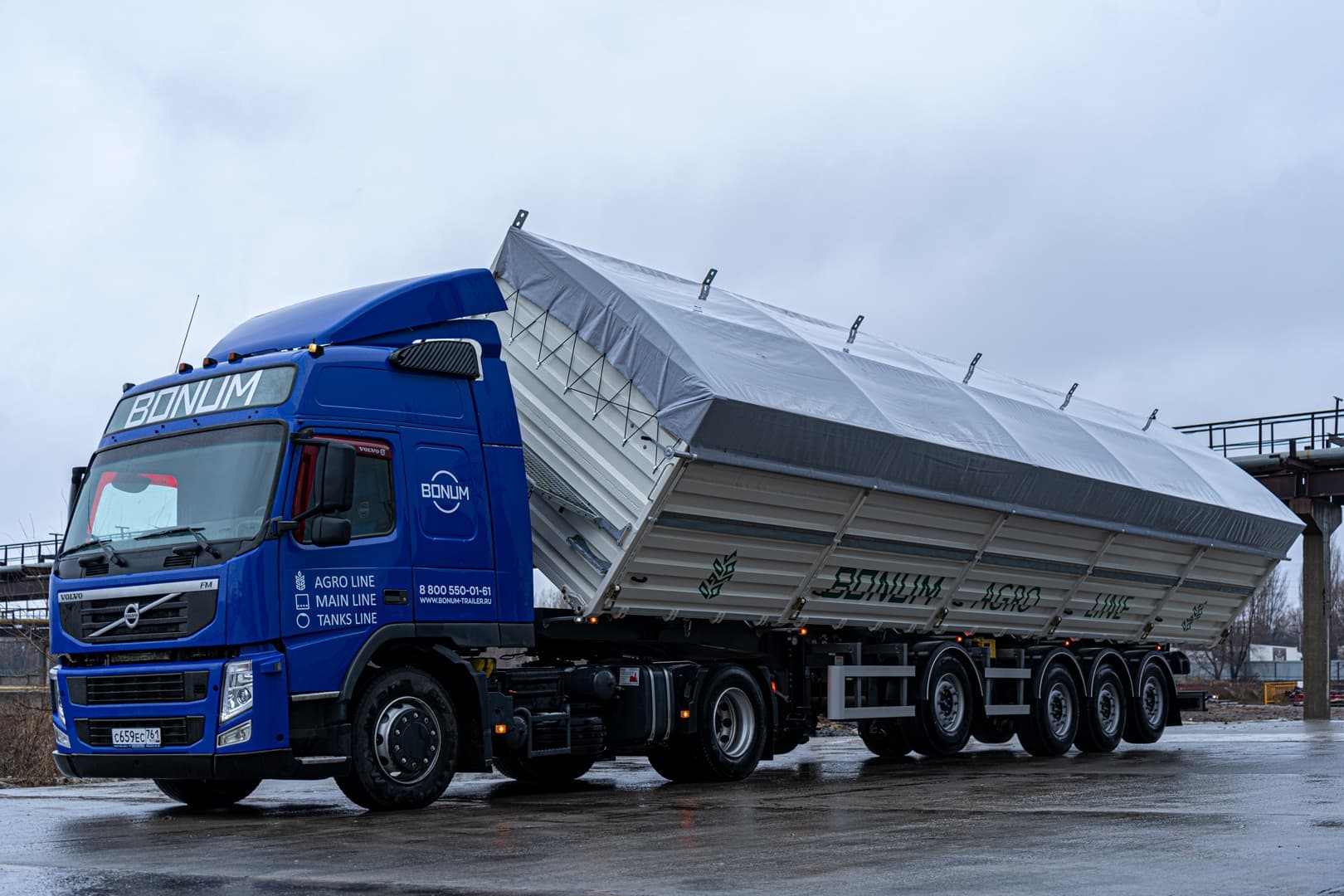

Photo gallery
Technical data
-
Curb weight
from 7 900 kg -
Center distance
1,310 mm -
Fifth-wheel coupling height
1,150 mm -
Brake system
Pneumatic two-circuit. -
Number of axes
3 axes / 3+1 axes / 4 axes -
Hydraulic system
- 3 hydraulic cylinders Mariz (Binotto) or equivalent;
- lateral two-way unloading.
-
Lighting and electrics
Aspoeck / Hella / Ermax or similar. -
Suspension and tires
- 3 axes / 3+1 axes / 4 axes;
- drum/disc type brake mechanisms;
- tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc.
-
Canopy and fastening system
- PVC canopy with a density of 630-680 gr./m2 (color as agreed);
- the direction of unwinding of the awning - to the right side (to the left side is an option);
- canopy overhang on each side - 30-40 cm;
- fixing the canopy with tension straps and rattles on the body;
- winding device of the canopy made of aluminum profile with a rotating handle;
- canopy platform in the front part of the body;
- arches of the canopy in the "house" form on each pair of body racks, the central longitudinal inserts-pipes between the arches – aluminum, quick-detachable.
-
Body
- steel body with unloading on the left and right sides;
- folding side boards with an upper (or lower) hitch;
- thickness of the side profile - 1.5 mm ("BONUM" side);
- locking fittings for Suer (Germany)/ Hildebrand (Germany) / Rapid (Germany) or similar;
- each side opens separately and is fixed in the open position;
- rubber strip in the upper part of the folding sides (to protect the hinge hinges from precipitation);
- steps on the rear wall of the body for canopy maintenance;
- steps on the front wall inside the body for access inside;
- rigid ties inside the body, tpreserve the geometry of the body;
- rubber seals on the inner perimeter of the sides to prevent spillage of cargo.
