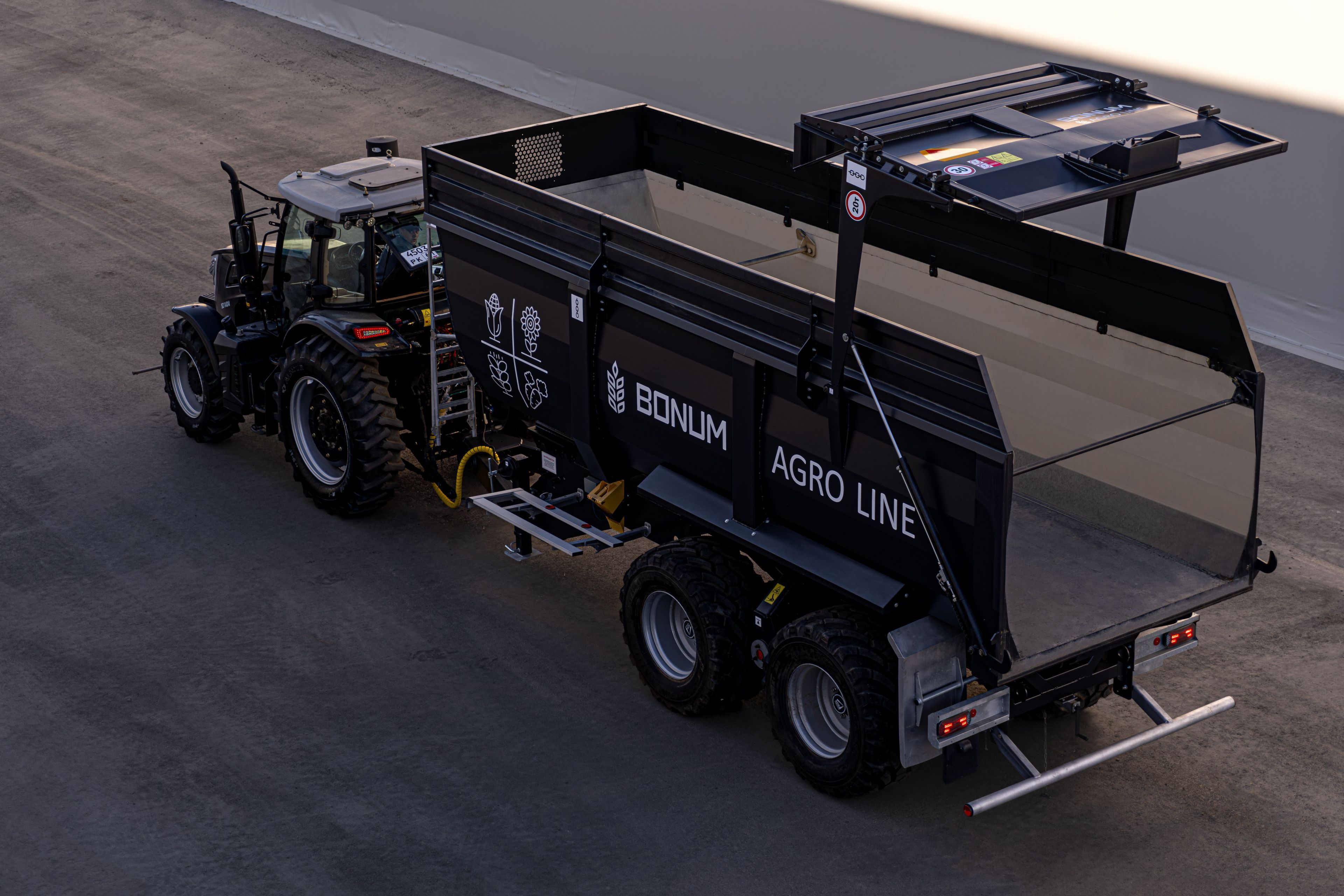

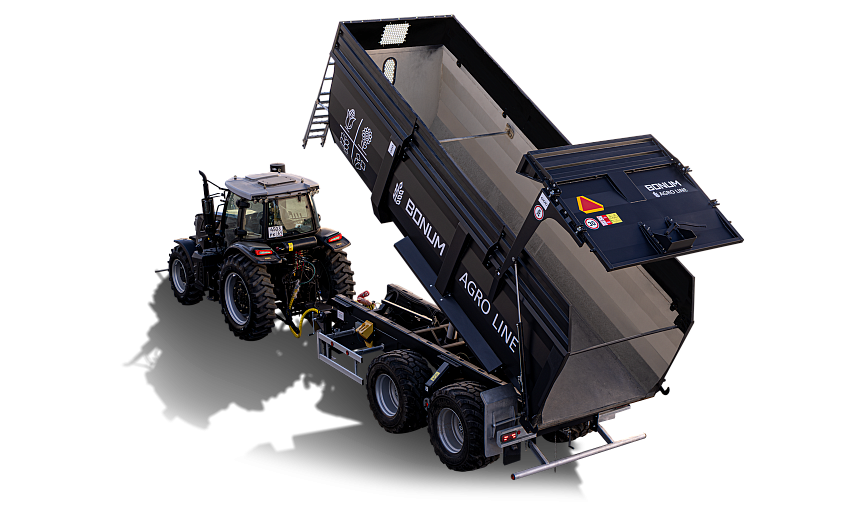

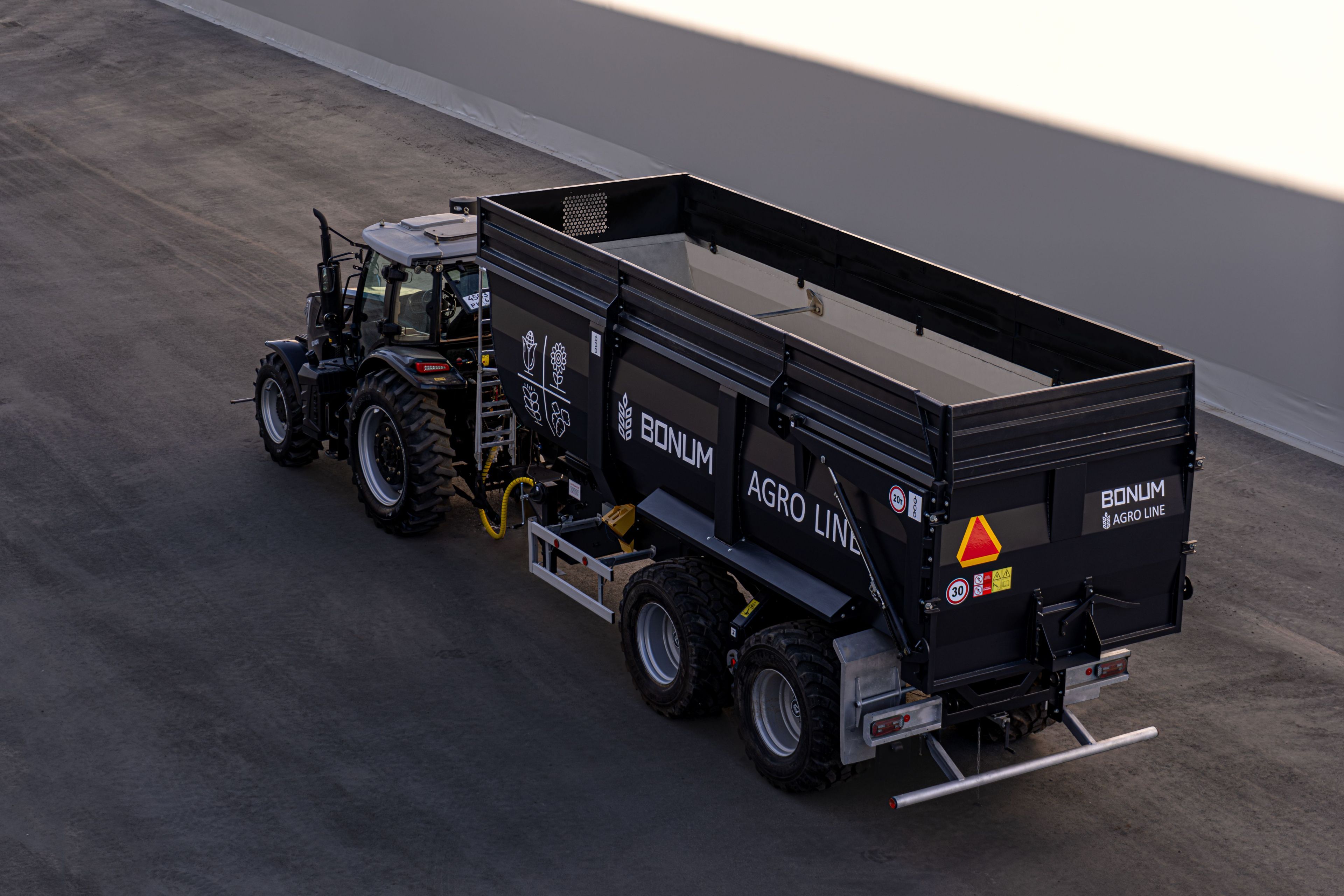

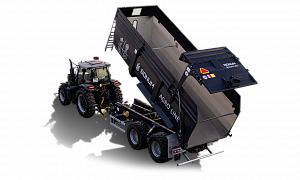

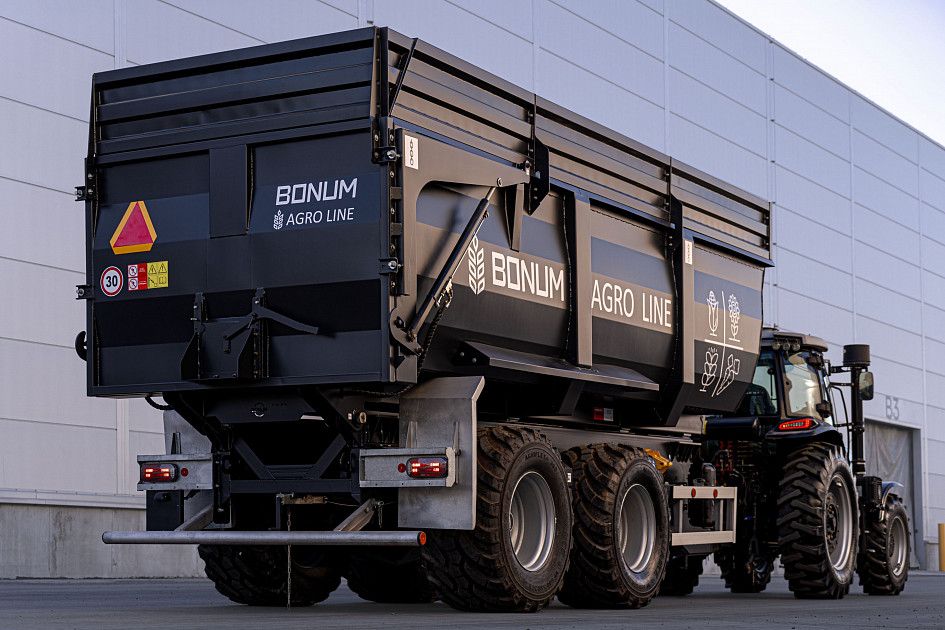

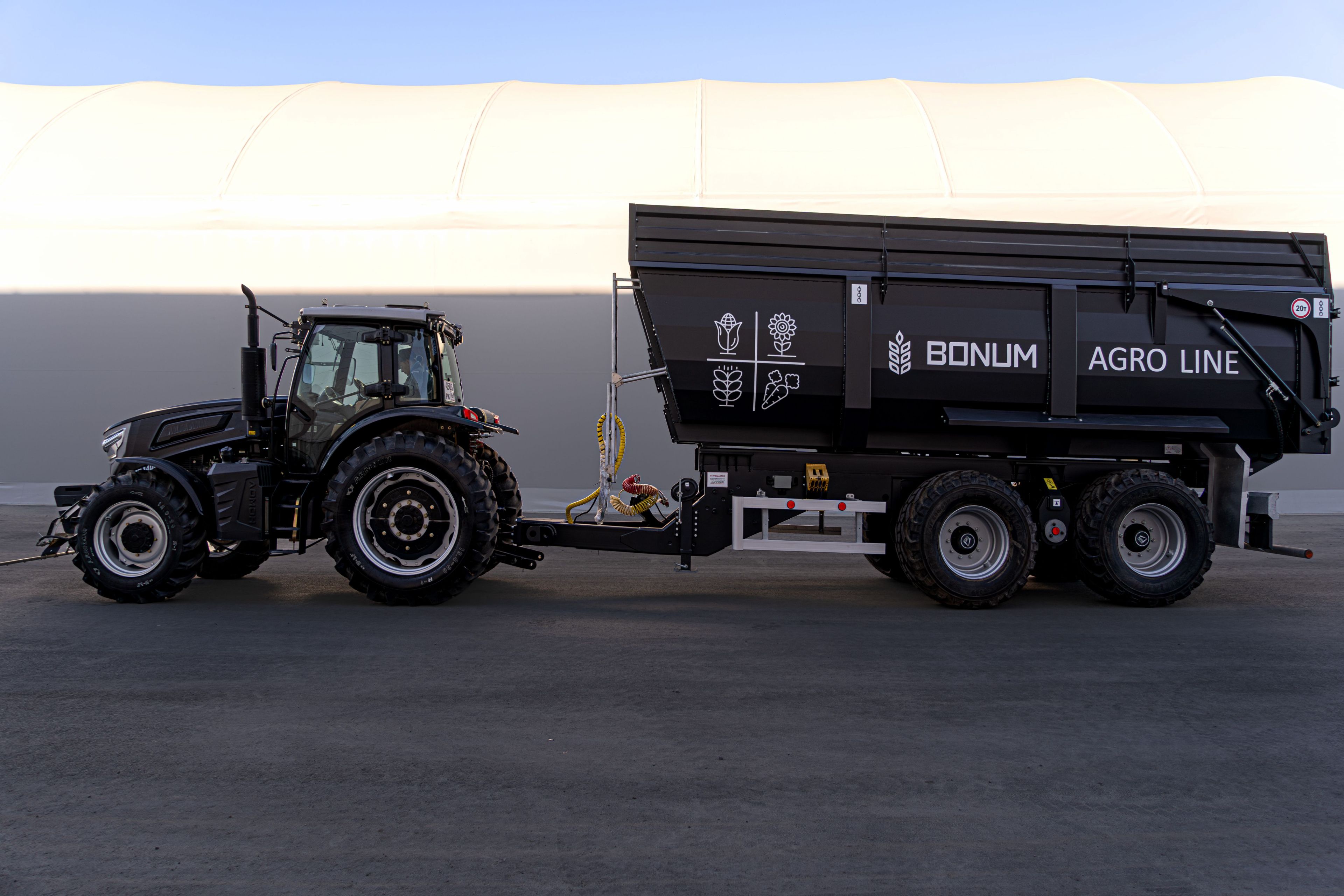

Tipper tractor semi-trailer 20 m3

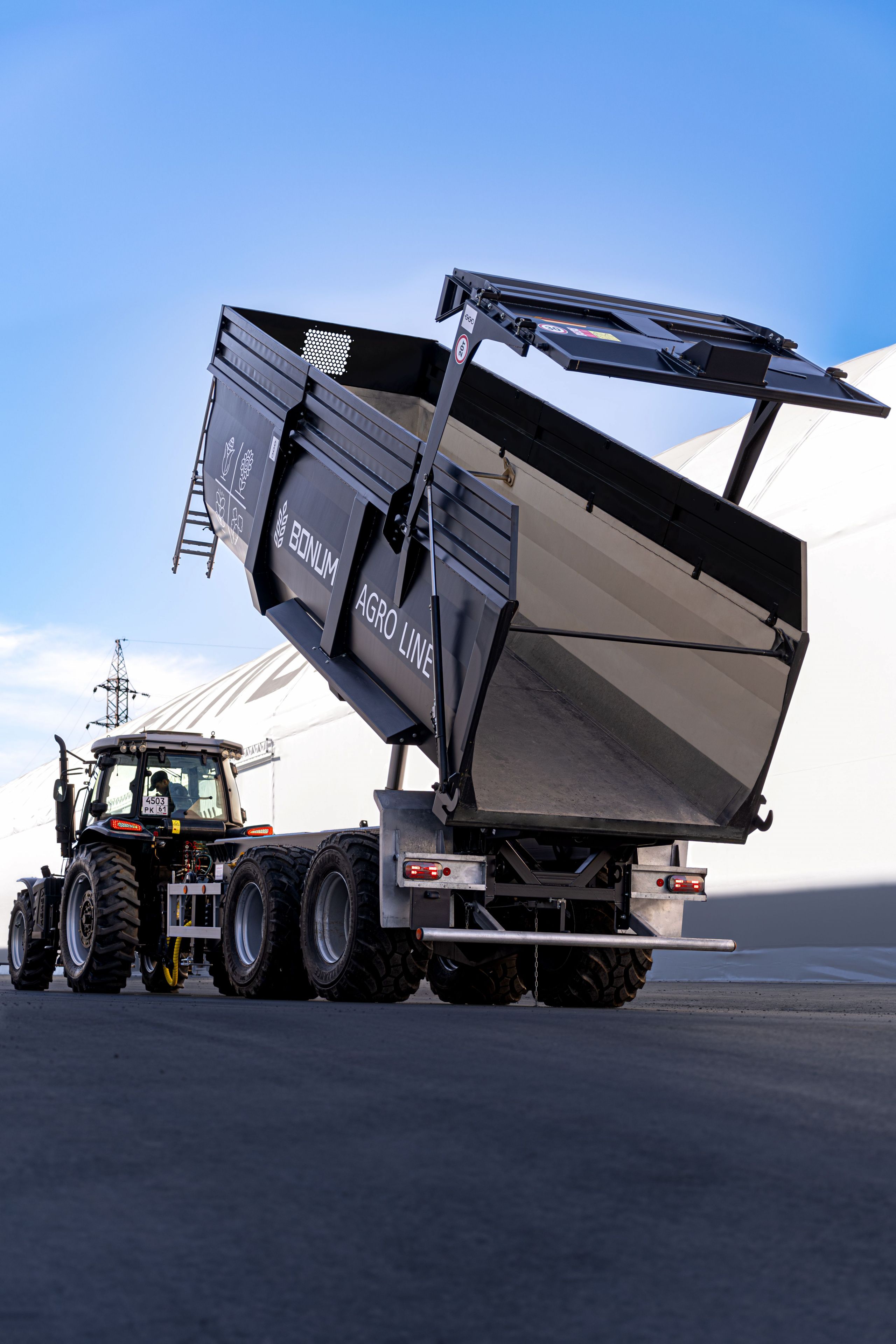

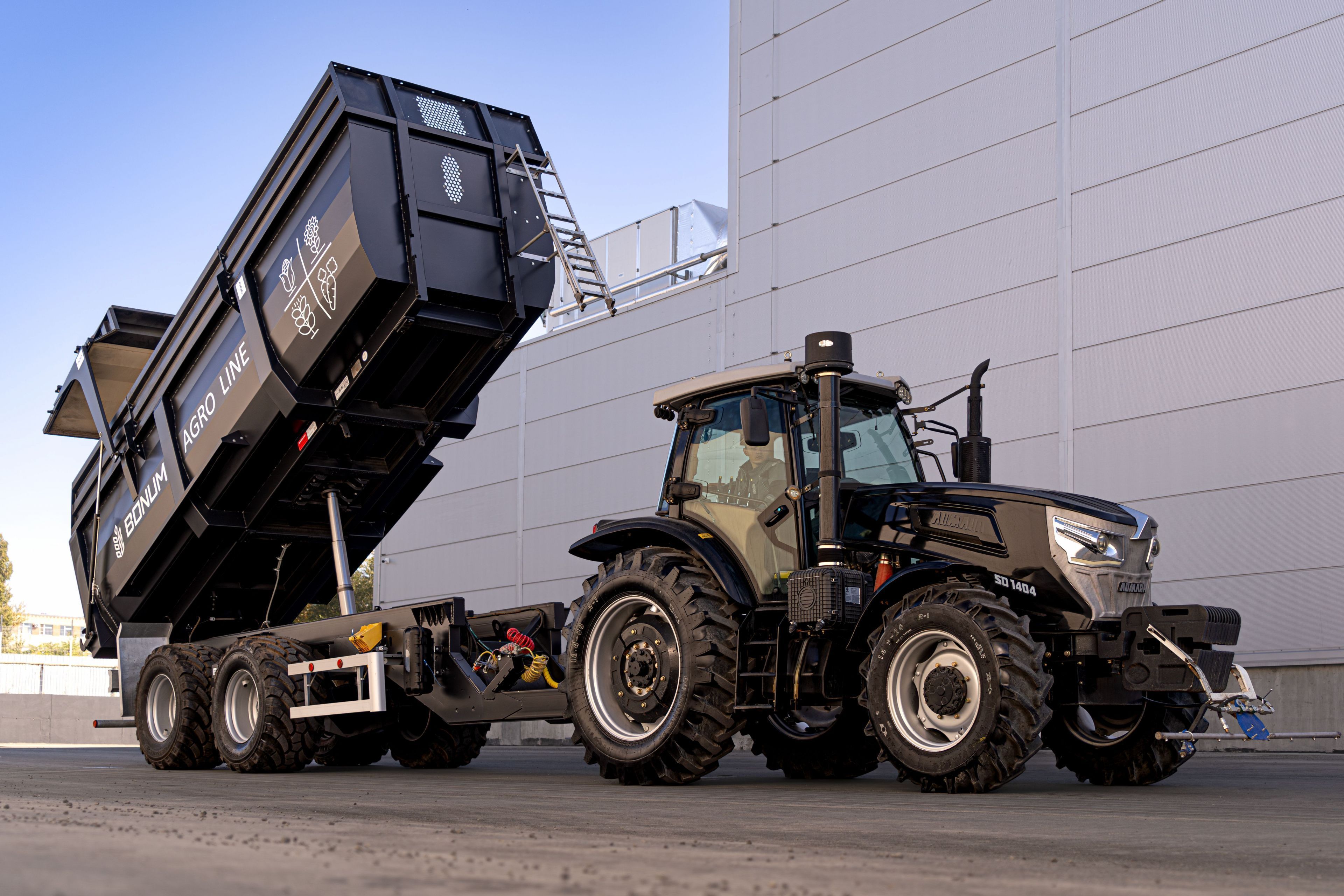

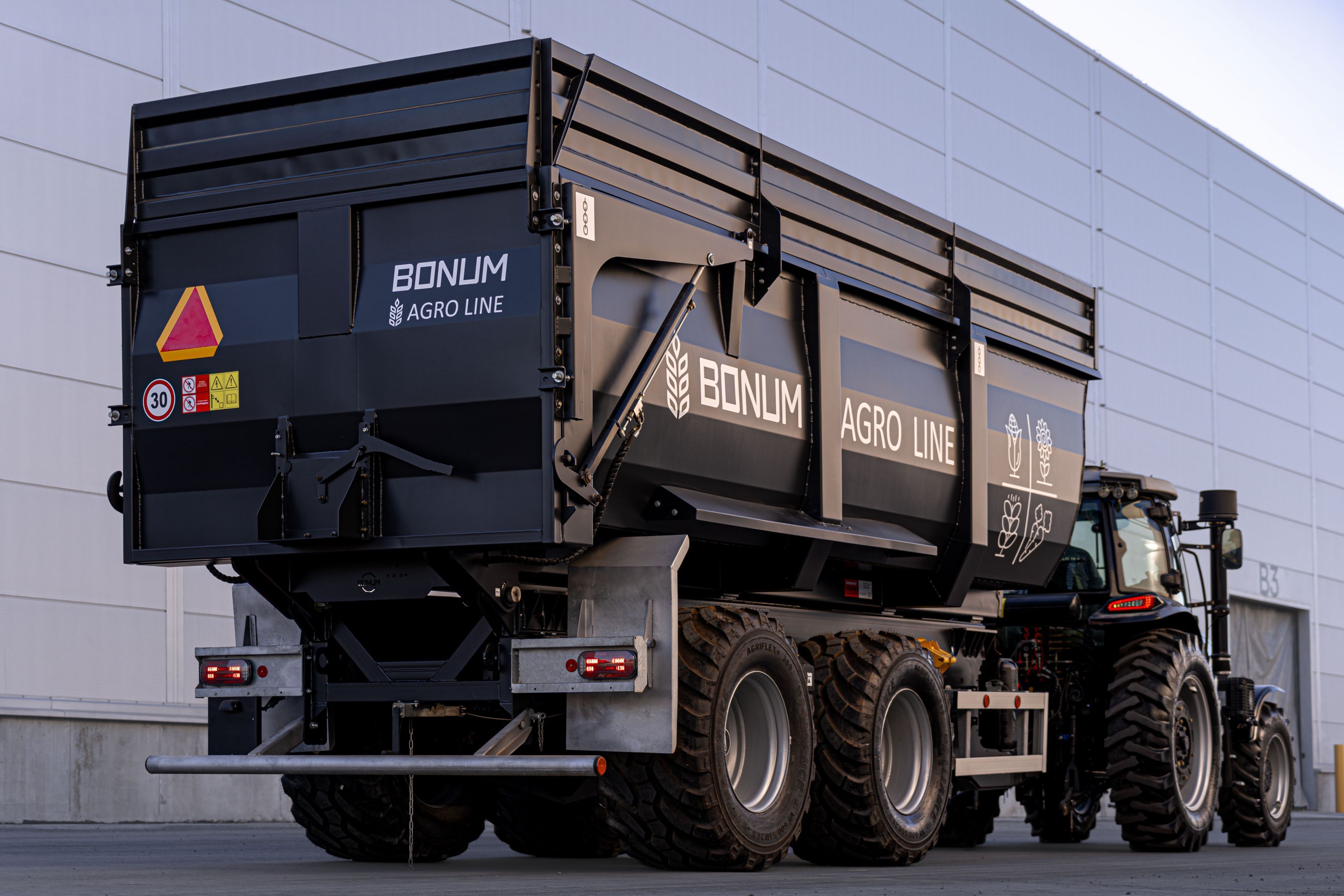

Photo gallery
Technical data
-
Volume
20 m3 -
Type of equipment
tractor semi-trailer -
Curb weight
from 6,500 kg -
Load capacity
20,000 kg -
Number of axes
2 axes -
Overall dimensions
length: 8,700 mm
width: 2,550 mm
height: 3,200 mm
-
Suspension and tires

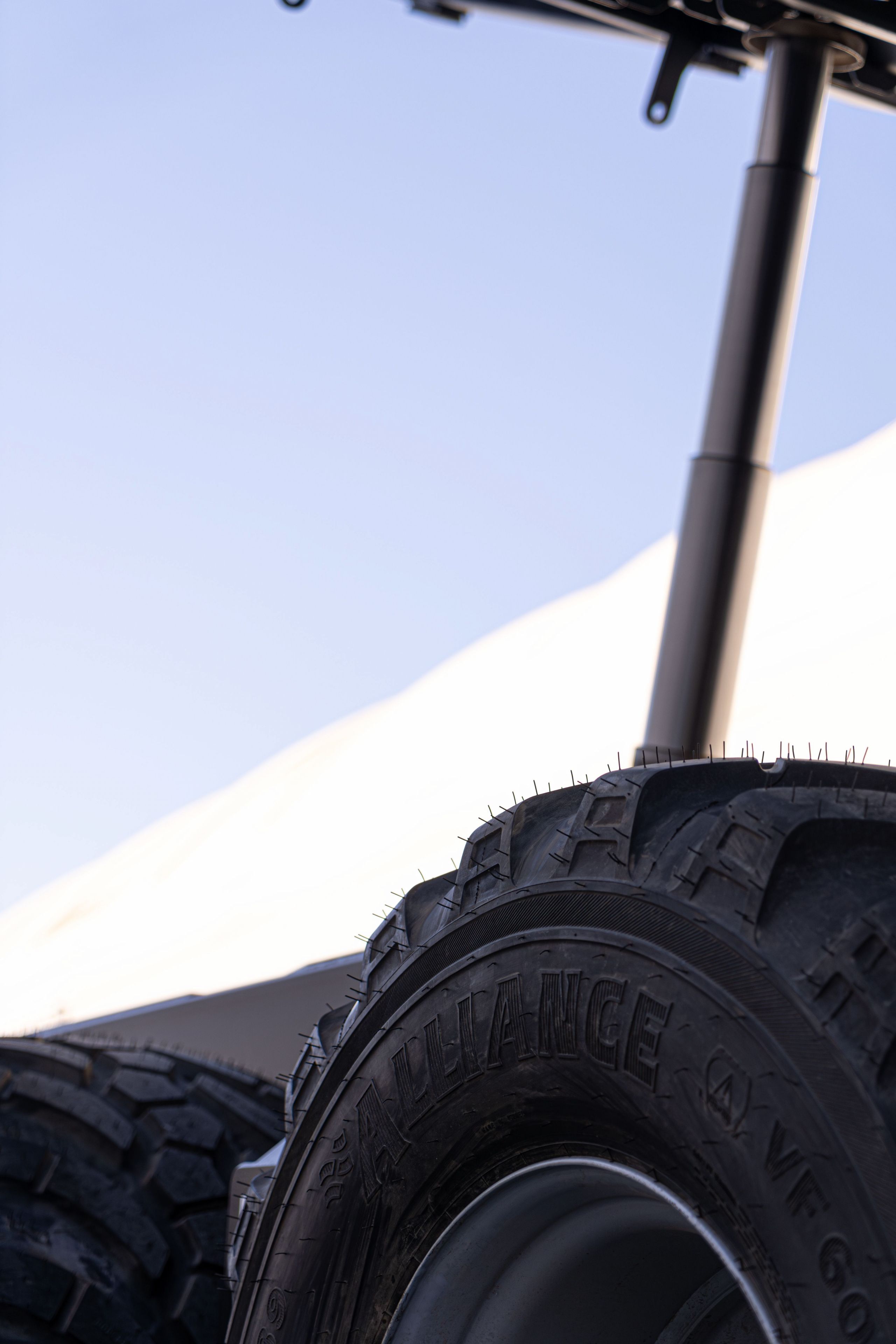

- Alliance low-pressure tires or an analog (at the discretion of the manufacturer) of dimensions 600/55 R26.5, 550/60 R22.5, 560/60 R22.5;
- balanced suspension with high-strength semi-axles ADR (Italy) or equivalent.
-
Brake system
- pneumatic (single-circuit and double-circuit);
- drum type brakes.
-
Hydraulic system

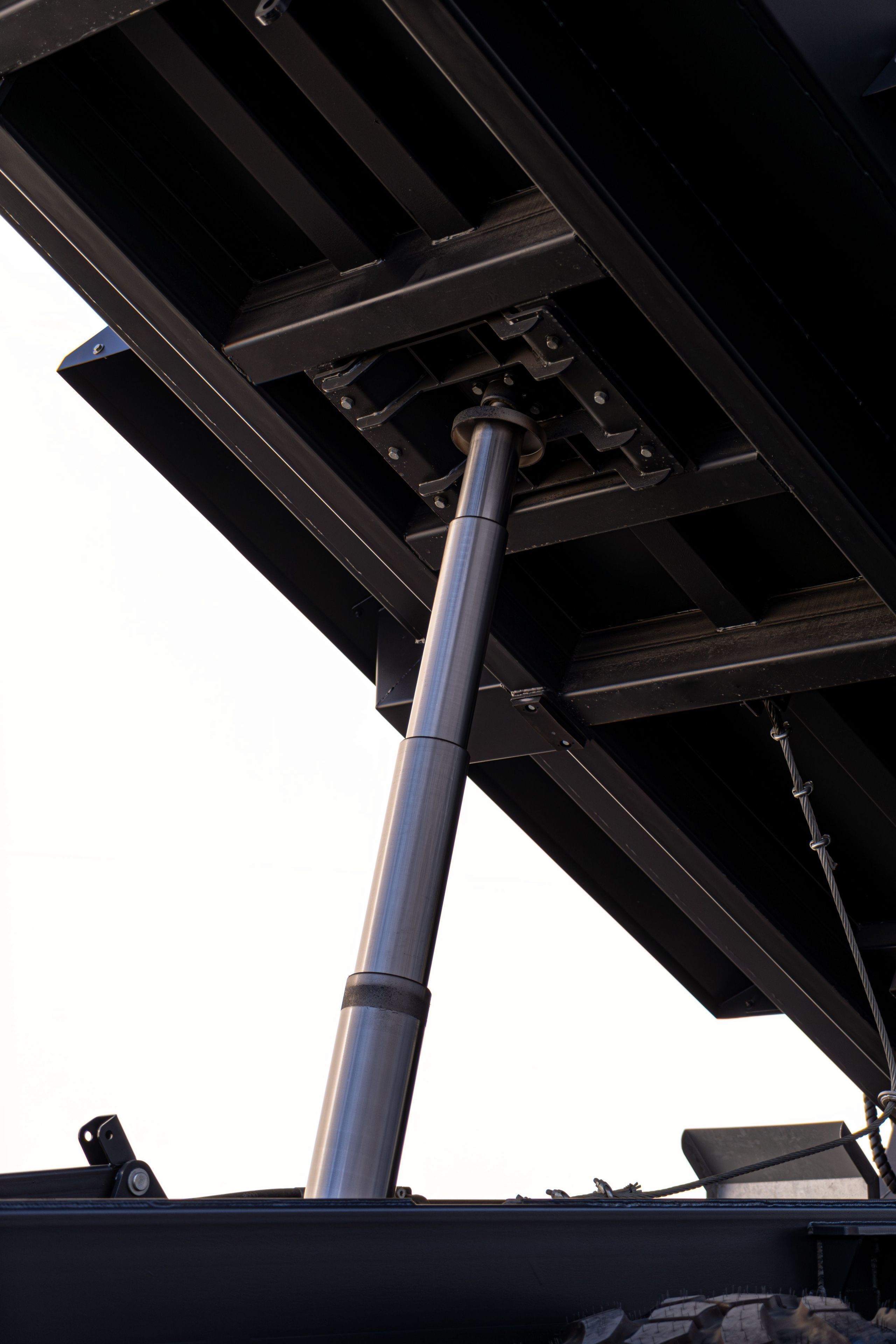

- hydraulic cylinder Binotto (Italy)/ Hyva (Netherlands) or equivalent (max. pressure 150-200 bar);

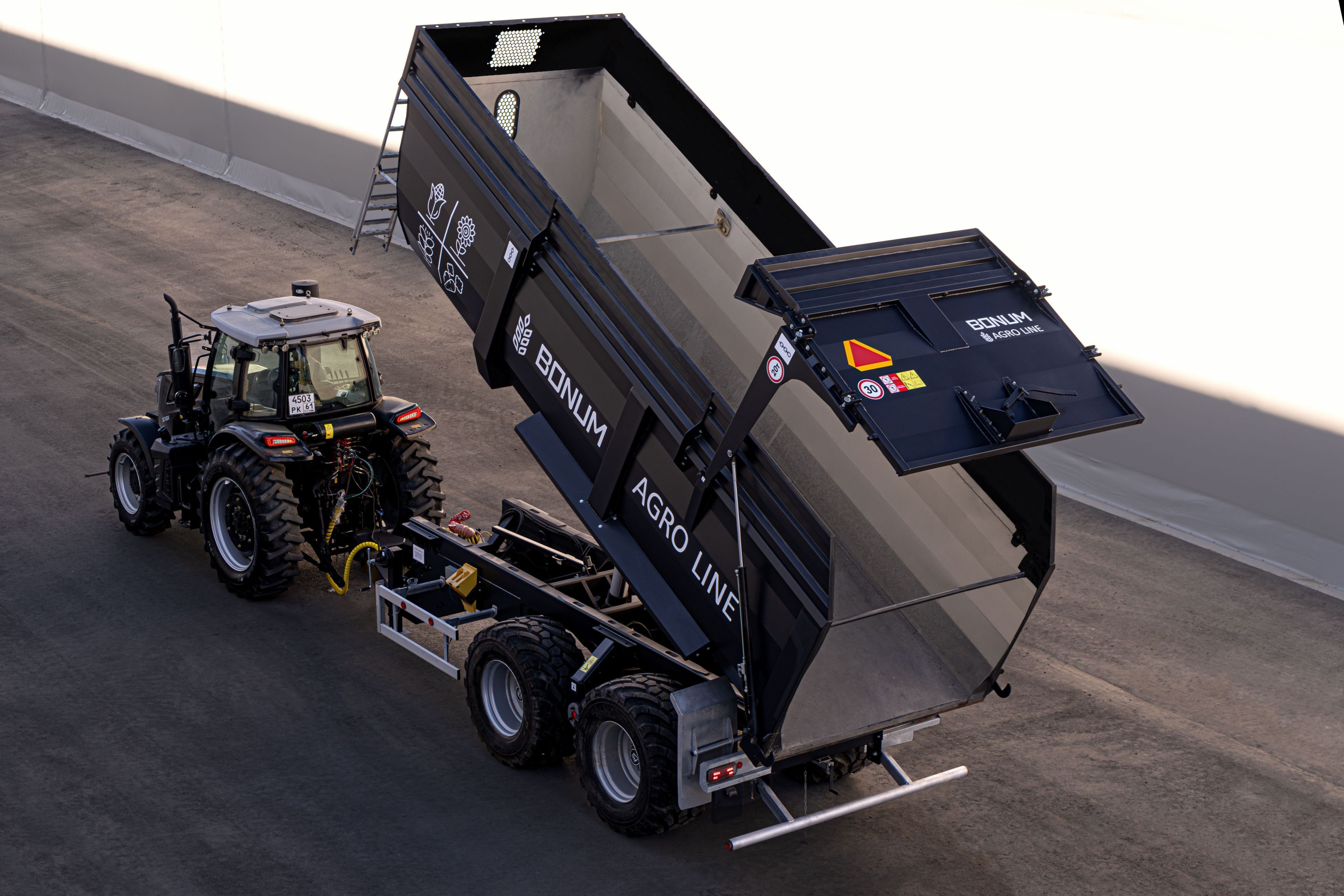

- maximum lifting angle of the body - up to 55 degrees.
-
Electrical equipment
- parking lights;
- mains voltage - 12V.
-
Painting
THE SEMI-TRAILER IS PAINTED ACCORDING TO THE PROPRIETARY THREE-STAGE PAINTING SYSTEM "PRIME SYSTEM":
- surface treatment in a shot blasting chamber;
- coating with a primer containing anticorrosive elements;
- painting with premium enamel.
