On-board semi-trailer 13,62 m

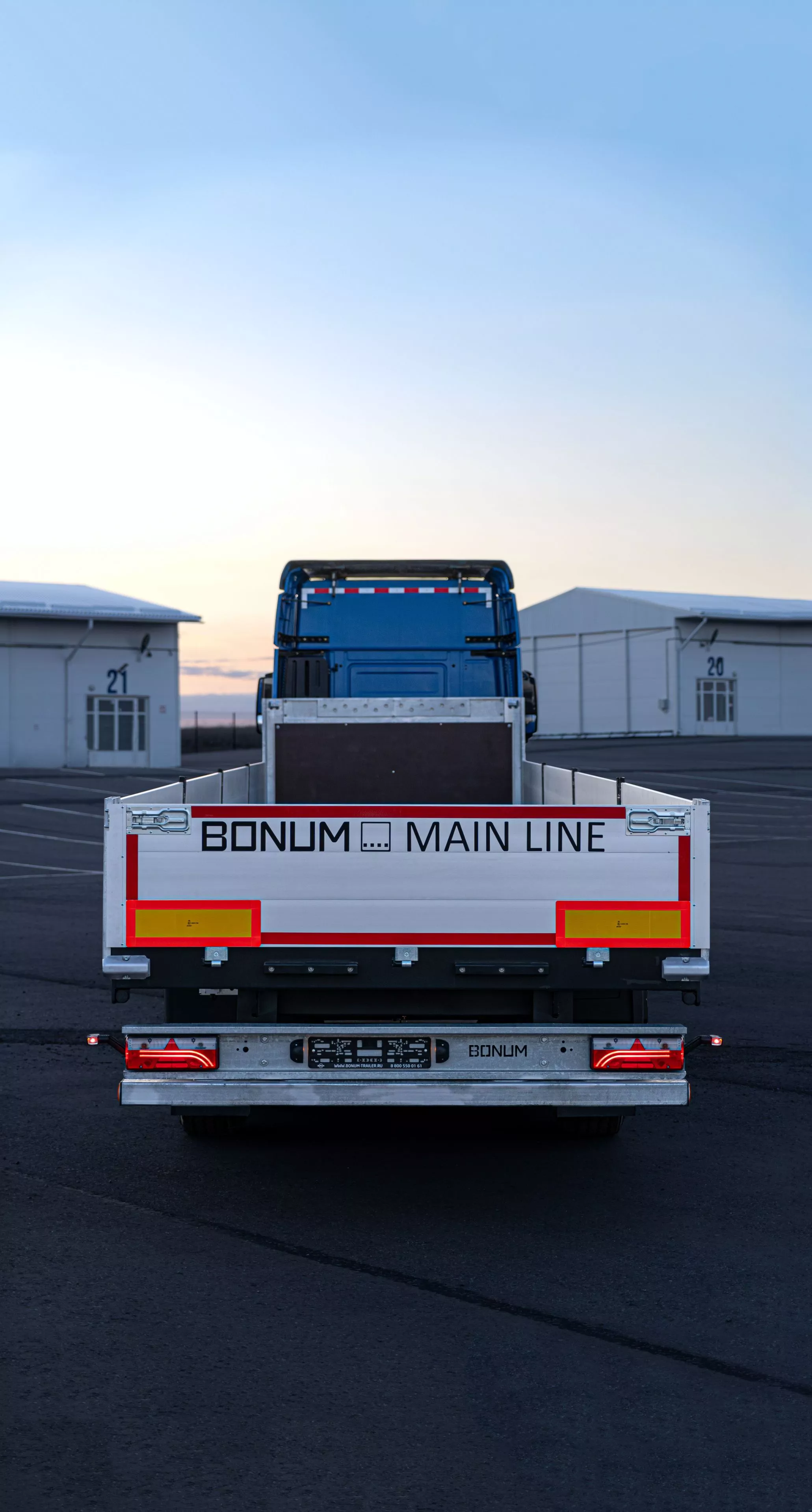

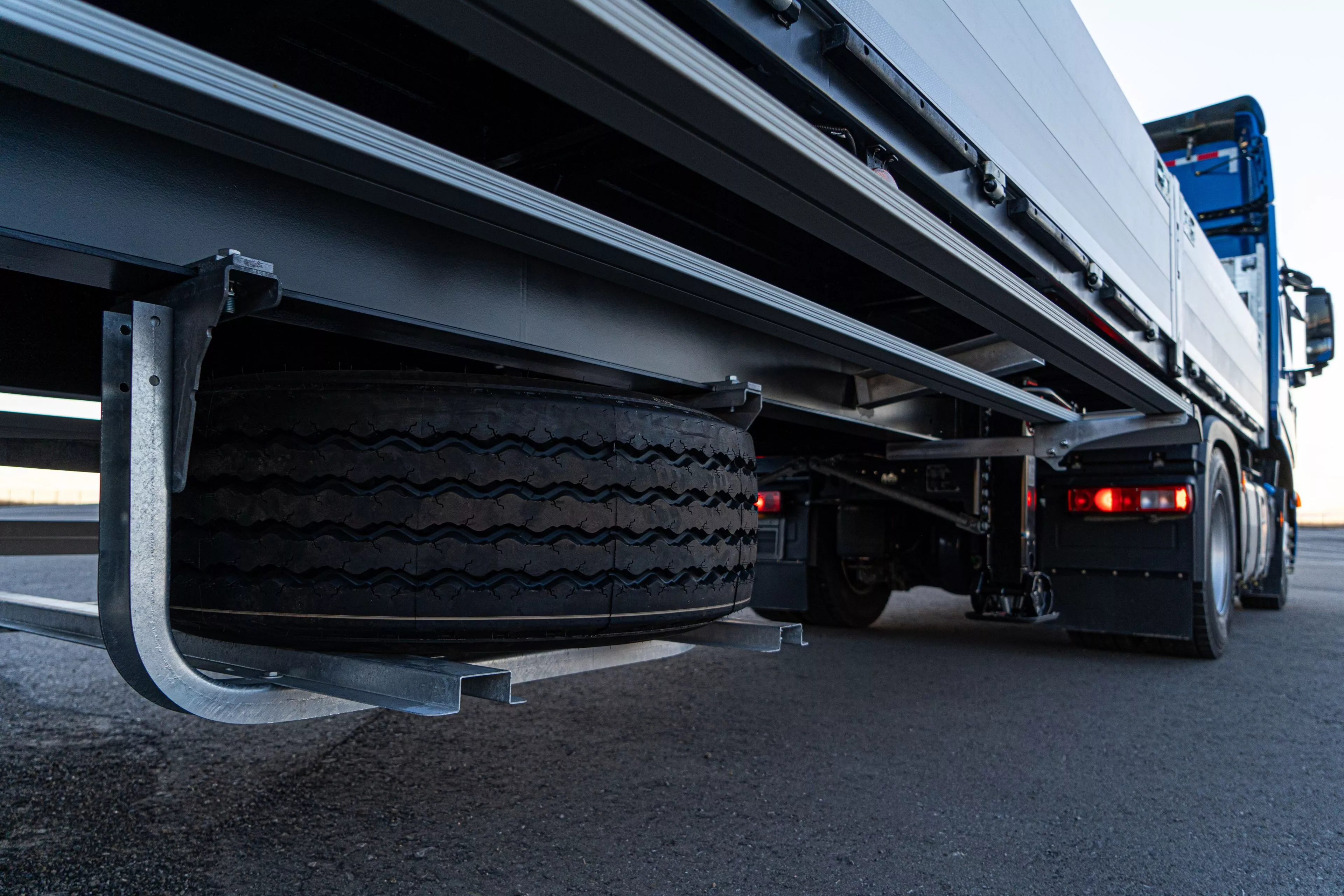

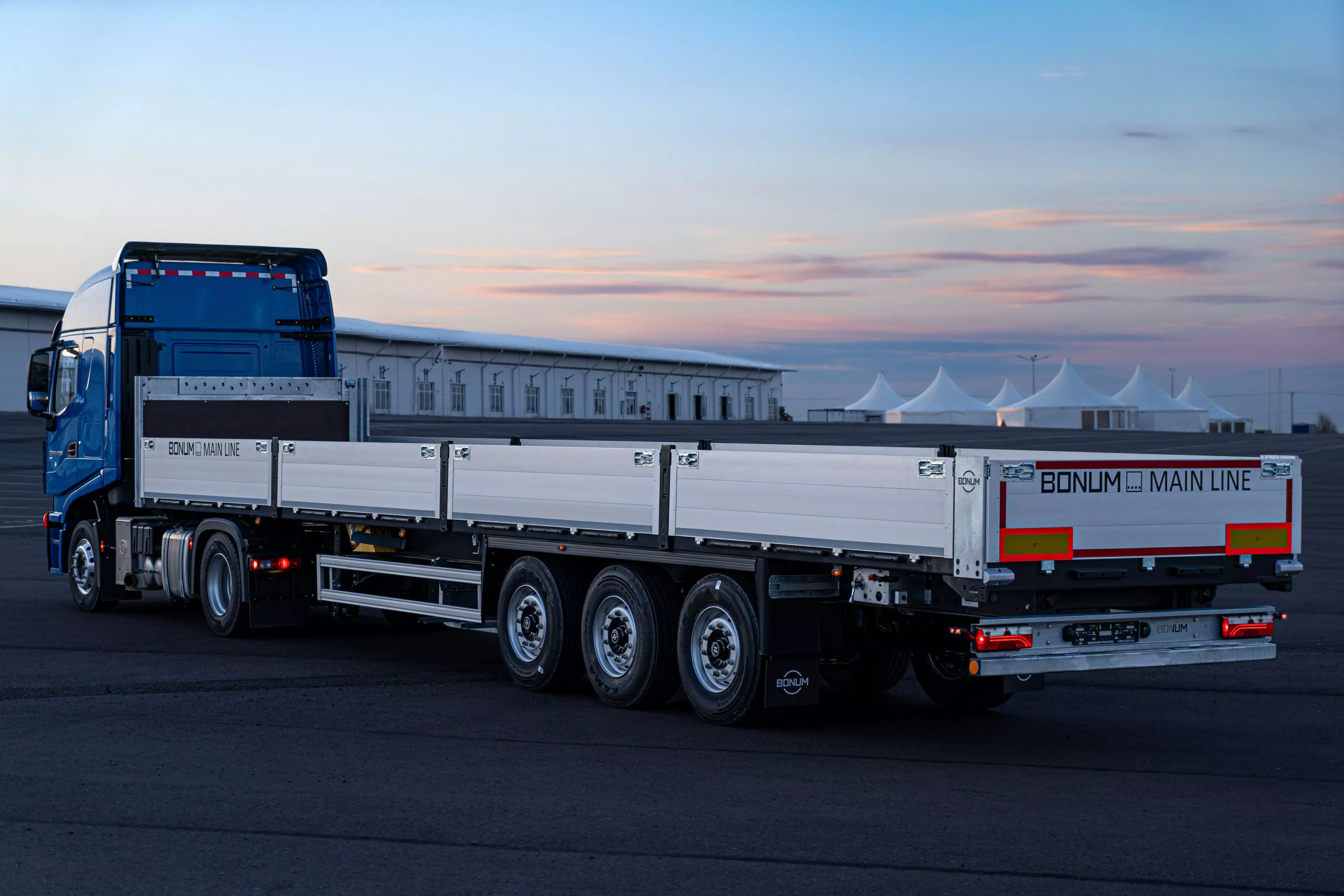

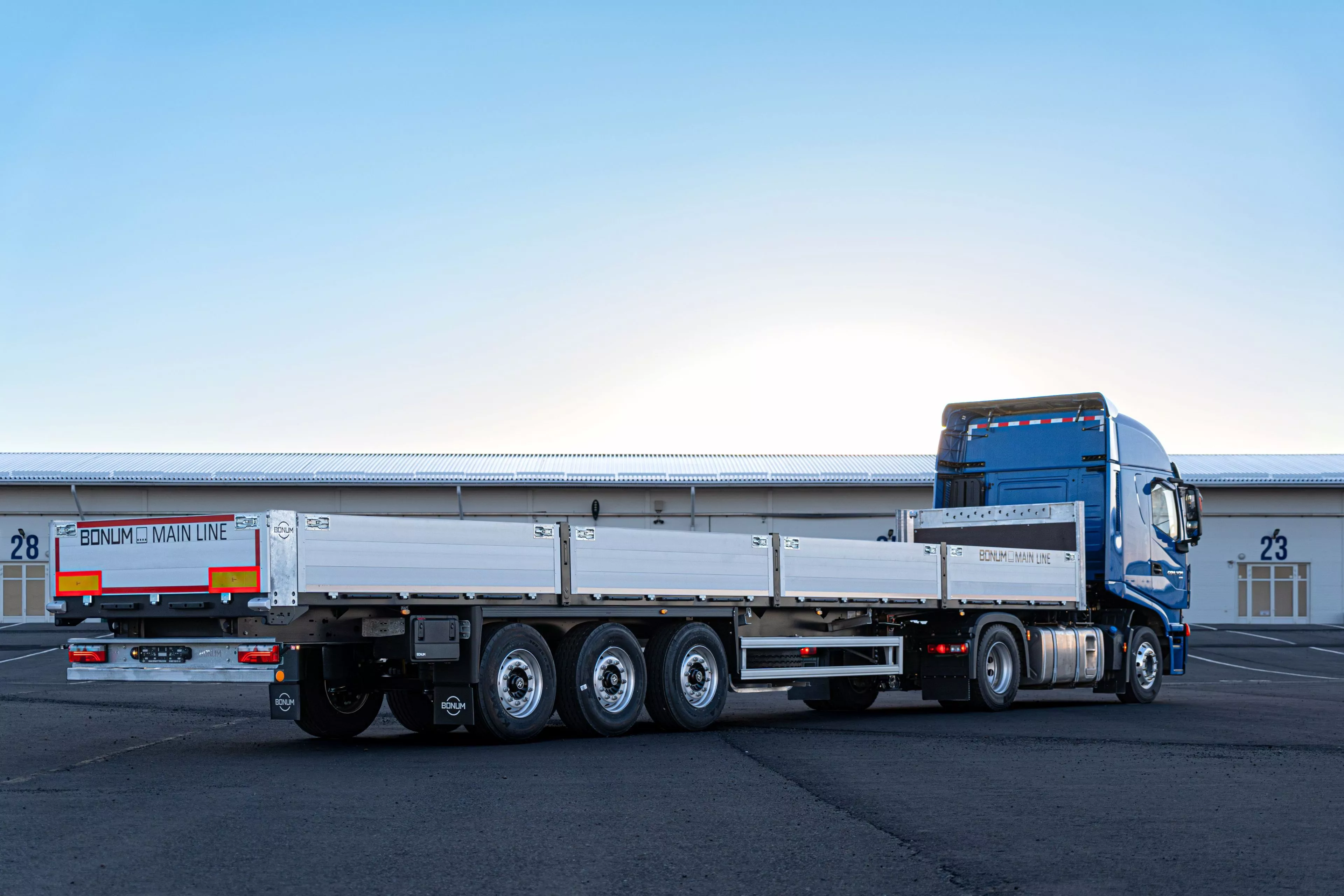

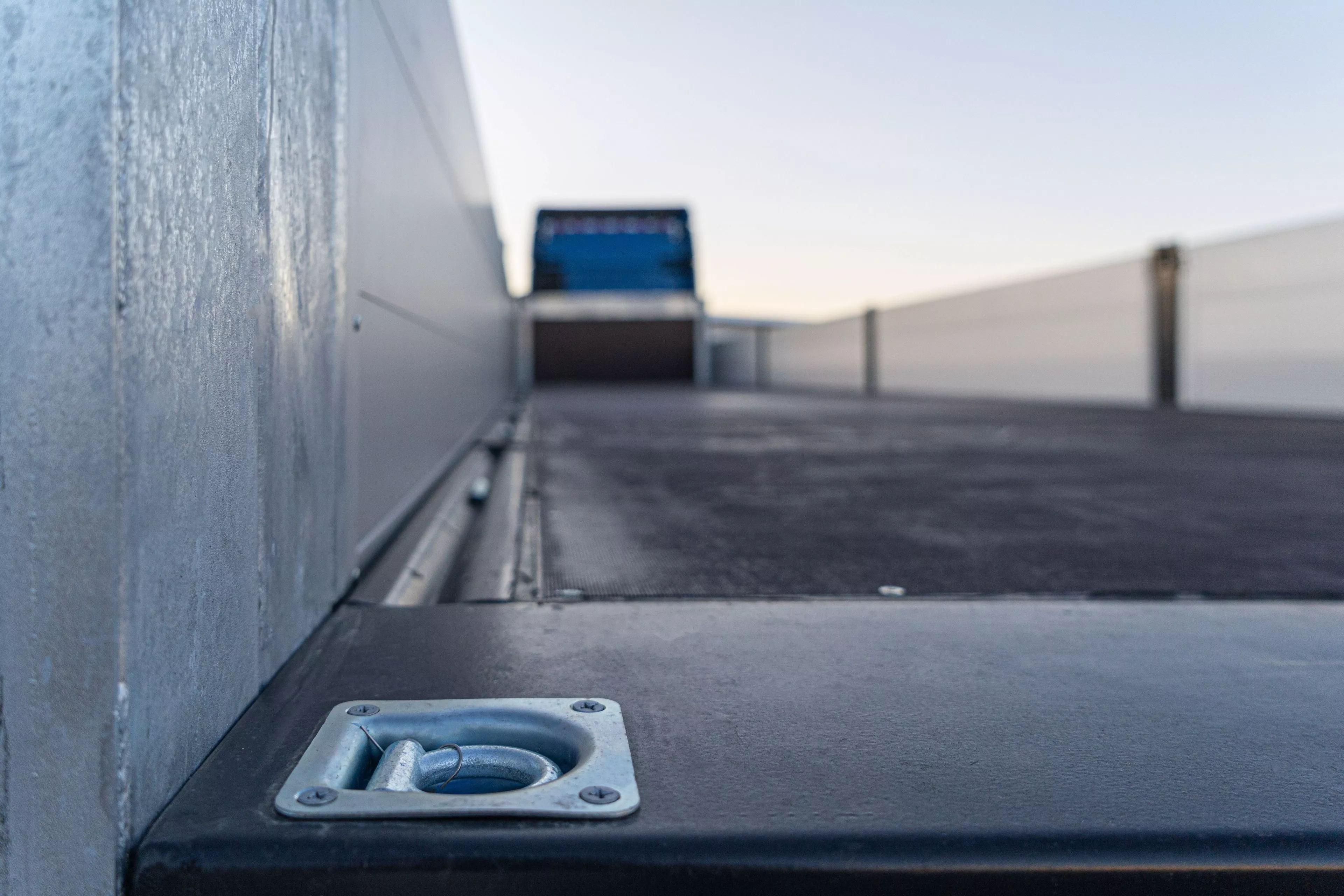

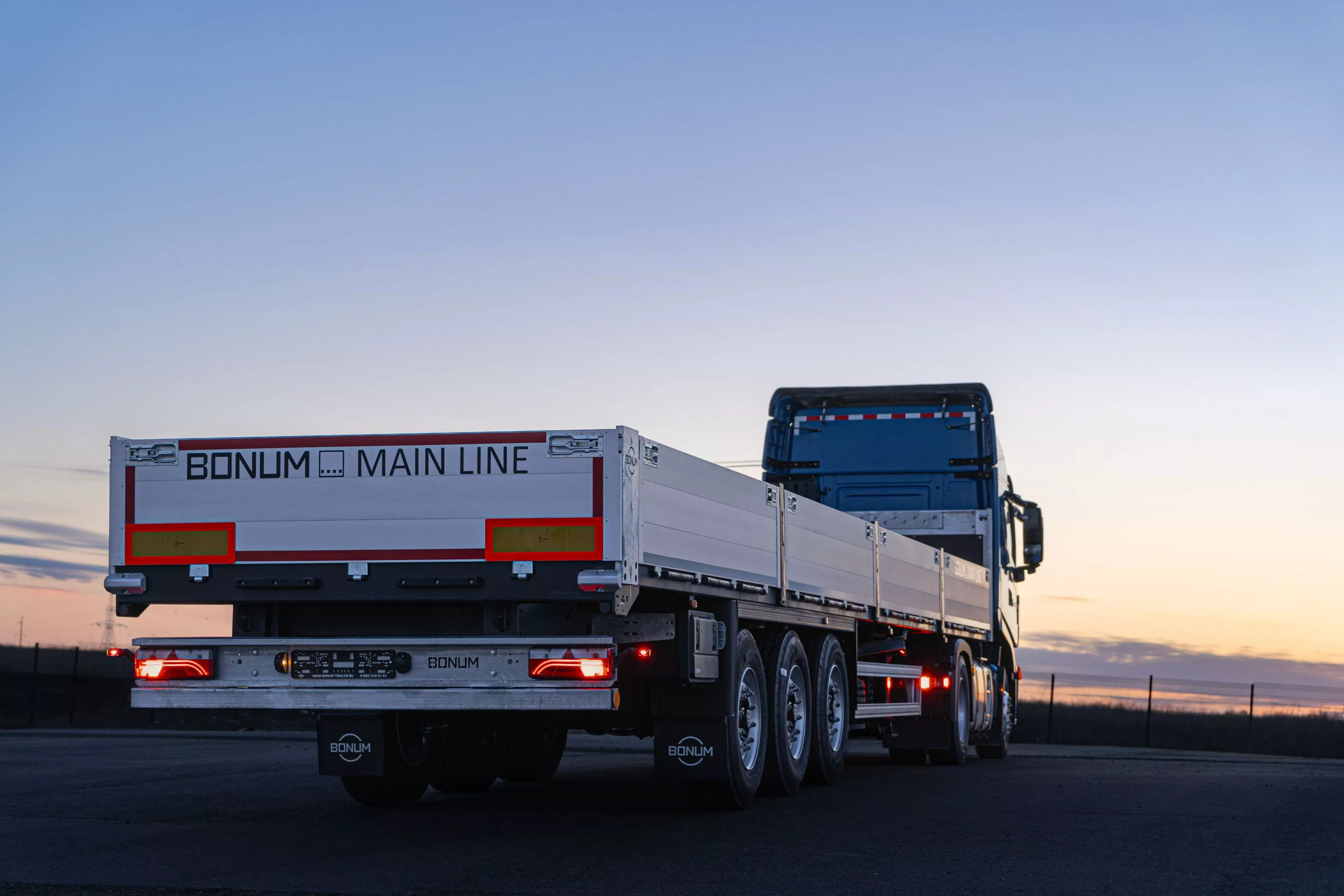

Photo gallery
Technical data
-
Curb weight
from 5,900 kg. -
Type of equipment
on-board semi-trailer. -
Overall dimensions
length 13,920 mm;
width 2,550 mm;
height from 2,455 / 2,655 mm. -
Electrical equipment
Aspoeck / Hella / Ermax or similar. -
Brake system
pneumatic two-circuit. -
Suspension and tires
- 3 axes;
- drum/disc type brake mechanisms;
- tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 6 pcs.
-
Painting
the frame is painted according to the proprietary three-stage painting system
«Prime System»
- surface treatment in a shot blasting chamber;
- coating with a primer containing anticorrosive elements;
- painting with premium enamel.
-
Add - on

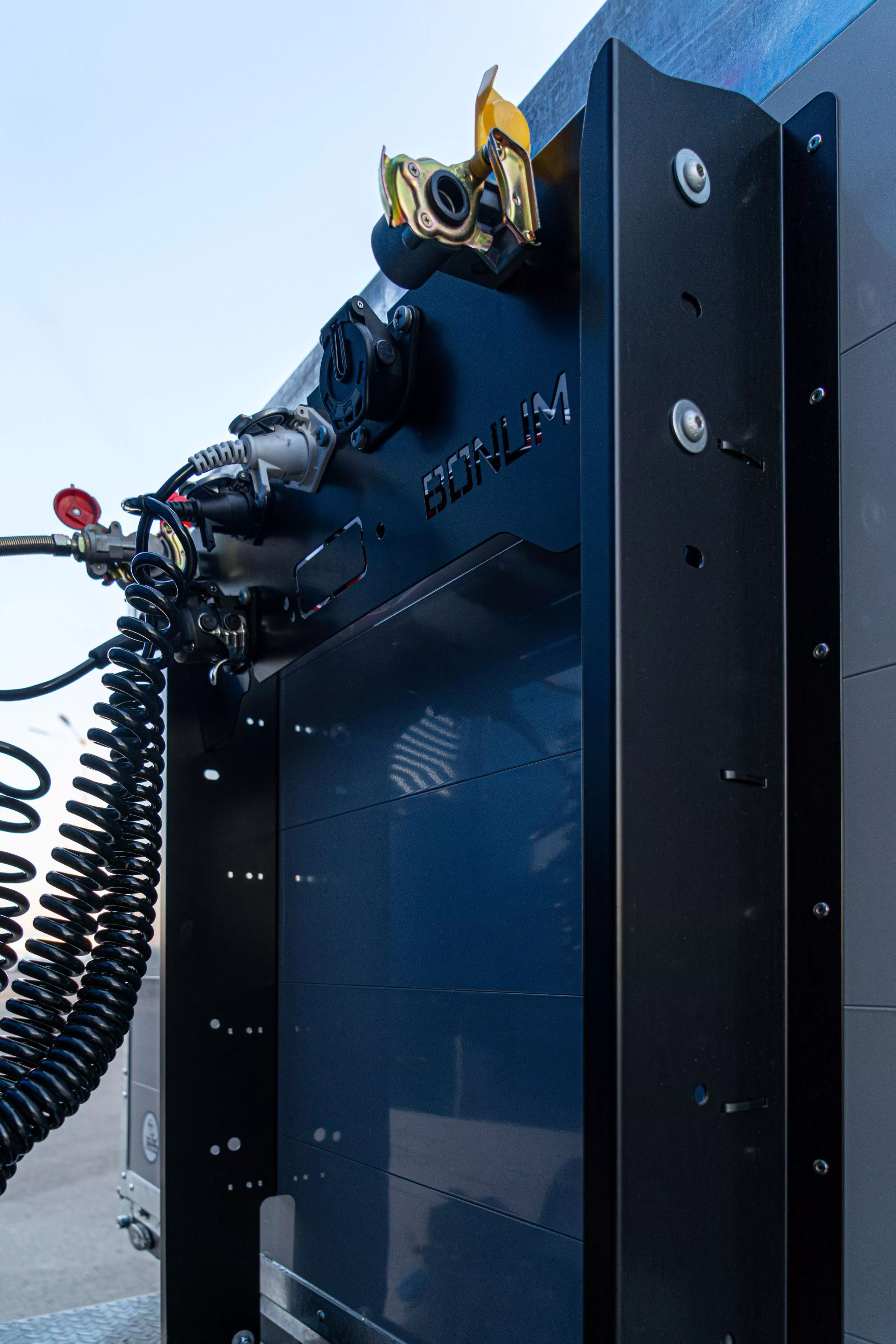

- 1200 mm / 1600 mm front portal made of aluminum profile with steel posts;

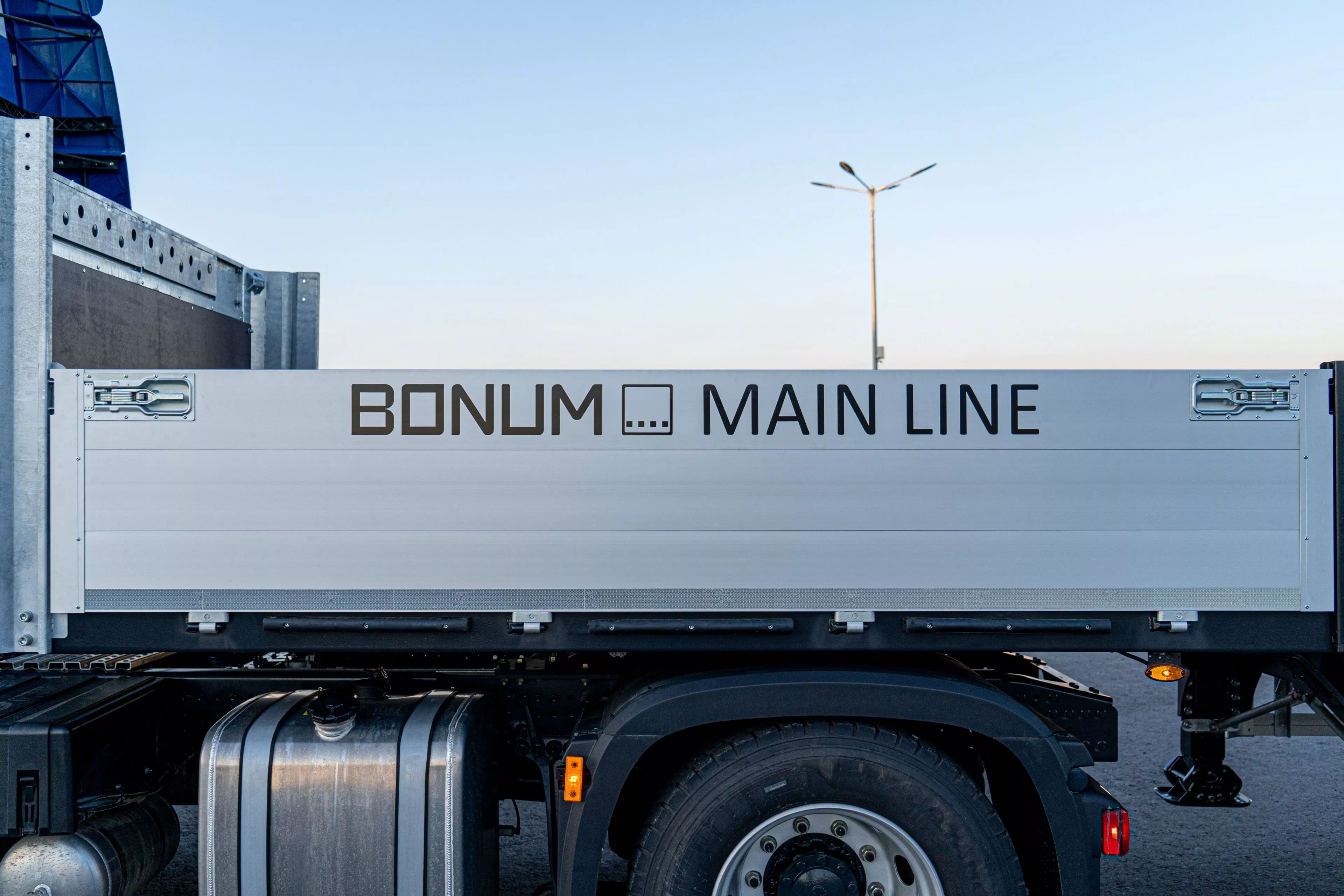

- 8 aluminum side boards with a height of 600 mm / 800 mm:
- 1 aluminum tailboard with a height of 600 mm / 800 mm;
- 3 pairs of removable side racks, 2 rear racks;
- reflective marking.
