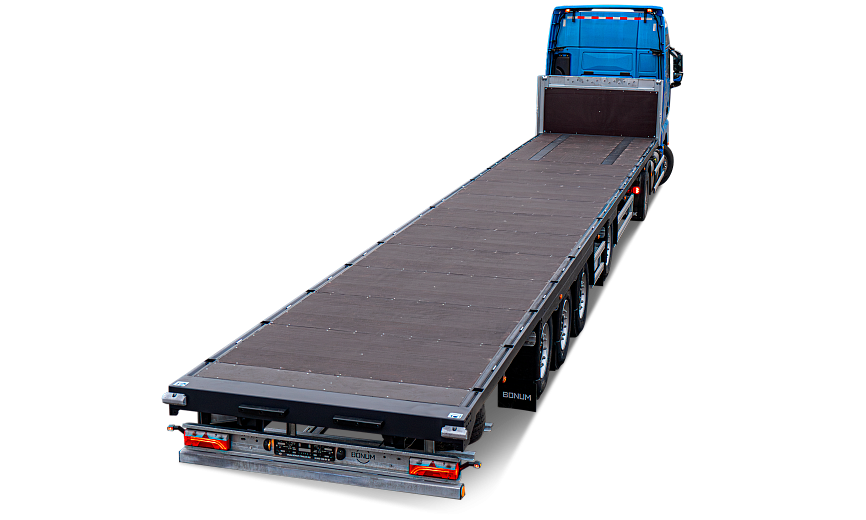

Semi-trailer platform 16,52 m with outrigger axle

914295-03

price list order

Number of axes

3+1 axes
Curb weight

from 6,505 kg
Painting

PRIME System

Photo gallery

Technical data

Curb weight

from 6,505 kg
Type of equipment

semi-trailer platform
Overall dimensions

length 16,790 mm

width 2,550 mm

height 2,470/2 870 mm
Electrical equipment

Aspoeck / Hella / Ermax or similar
Brake system

pneumatic two-circuit with EBS

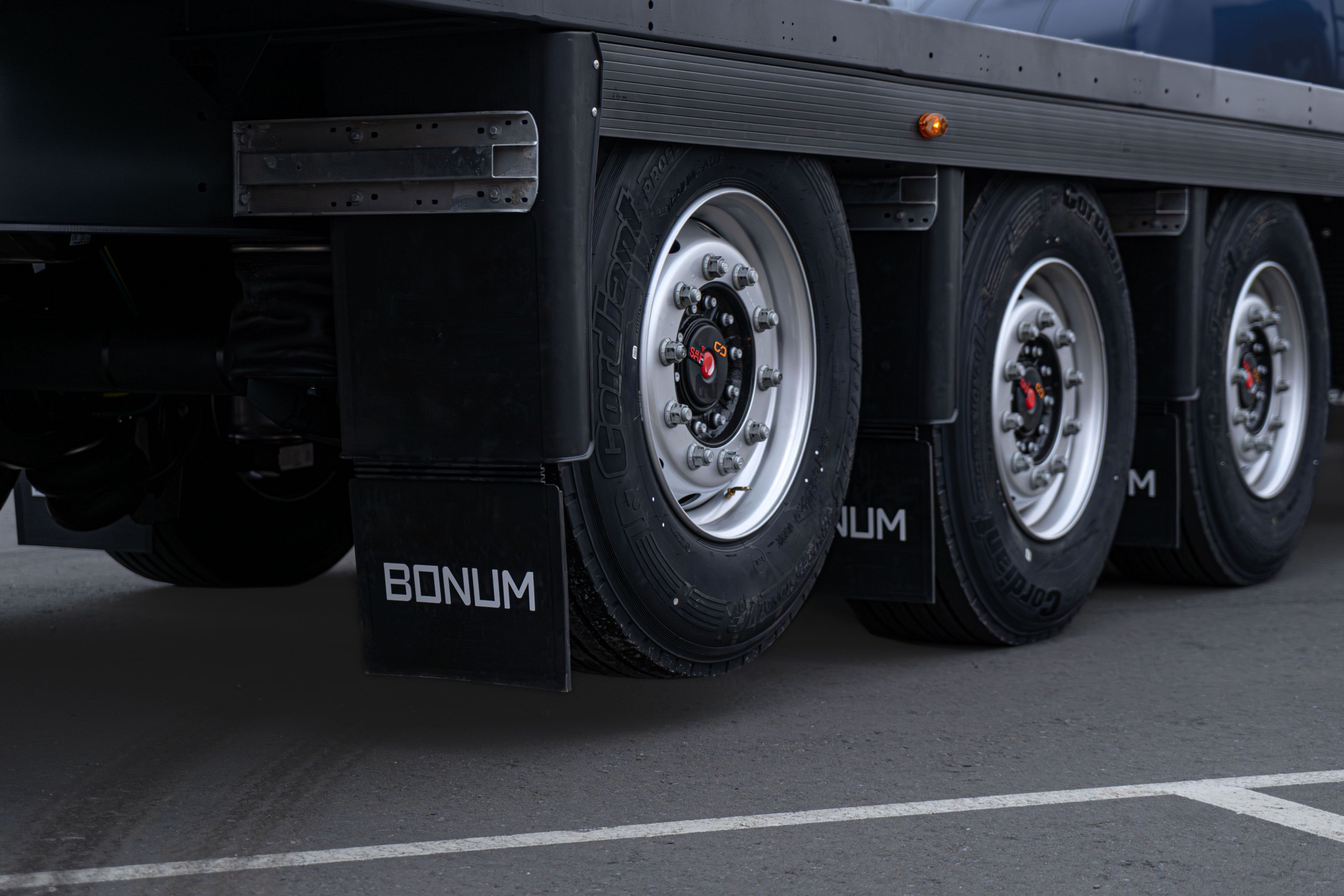

Suspension and tires
- 4 axes
- 2 lifting axles
- drum/disc type brake mechanisms
- tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc — 8 pcs

Painting
the frame is painted according to the proprietary three-stage painting system
“Prime System”
- surface treatment in a shot blasting chamber
- coating with a primer containing anticorrosive elements
- painting with premium enamel
Add - on
- front portal 1200/ 1600 mm made of aluminum profile with steel posts
- reflective marking

View all

Construction

Equipment

Extra options

Construction

welded frame of reinforced construction made of high-strength steel;
international type 2” pin JOST / SAF / OMS bran or equivalent;
glasses for cones 80х80 mm;
conic storage box;
hidden eyelets on the sides of the frame for securing the load;
laminated plywood floor with a thickness of 30 mm;
two towing lugs in the rear of the frame;
the landing gear is two-speed with manual one-way drive;
basket for two spare wheels;
side protection made of aluminum profile;

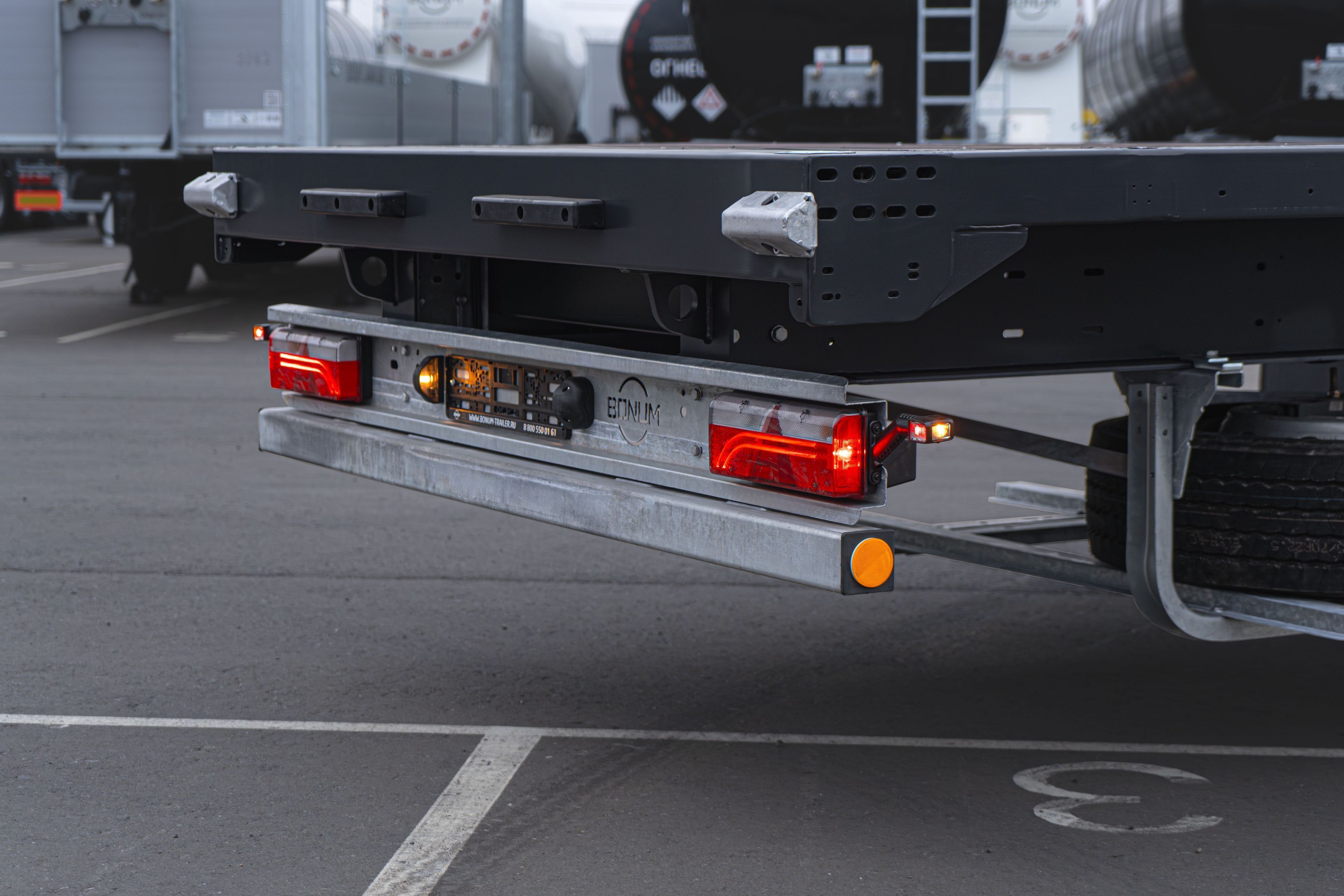

rear protective device with panel for lights.

Equipment

Domar / Parlok / Lago wings or similar

2 pcs pcs

Lokhen anti-rollback stops or similar

2 pcs pcs

tool box Daken / Parlok / Lago or similar with a locking mechanism

1 pcs pc.

Extra options

They are selected based on your wishes and the specifics of your business

Painting of the semi-trailer according to the customer’s layout (branding)

Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5

Tool box Daken Welvet 1000 (81008022) 1030×500×455 mm, 155 l

Tool box Daken Welvet 600 (81004) 630×450×480 mm 78 l

Tool box Lago (446062090) 600×400×475 mm 70 l

Pencil case for cones (10 cones 80×80×2300 mm)

Galvanized cones (manufactured in Russia) 10 pcs. 80×80×2300 mm

Equipment

Domar / Parlok / Lago wings or similar

2 pcs pcs

Lokhen anti-rollback stops or similar

2 pcs pcs

tool box Daken / Parlok / Lago or similar with a locking mechanism

1 pcs pcs

Construction

welded frame of reinforced construction made of high-strength steel;
international type 2” pin JOST / SAF / OMS bran or equivalent;
glasses for cones 80х80 mm;
conic storage box;
hidden eyelets on the sides of the frame for securing the load;
laminated plywood floor with a thickness of 30 mm;
two towing lugs in the rear of the frame;
the landing gear is two-speed with manual one-way drive;
basket for two spare wheels;
side protection made of aluminum profile;
rear protective device with panel for lights.

Extra options

They are selected based on your wishes and the specifics of your business

Painting of the semi-trailer according to the customer’s layout (branding)

Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5

Tool box Daken Welvet 1000 (81008022) 1030×500×455 mm, 155 l

Tool box Daken Welvet 600 (81004) 630×450×480 mm 78 l

Tool box Lago (446062090) 600×400×475 mm 70 l

Pencil case for cones (10 cones 80×80×2300 mm)

Galvanized cones (manufactured in Russia) 10 pcs. 80×80×2300 mm
