Oil tanker 30 m3
Oil tanker 32 m3

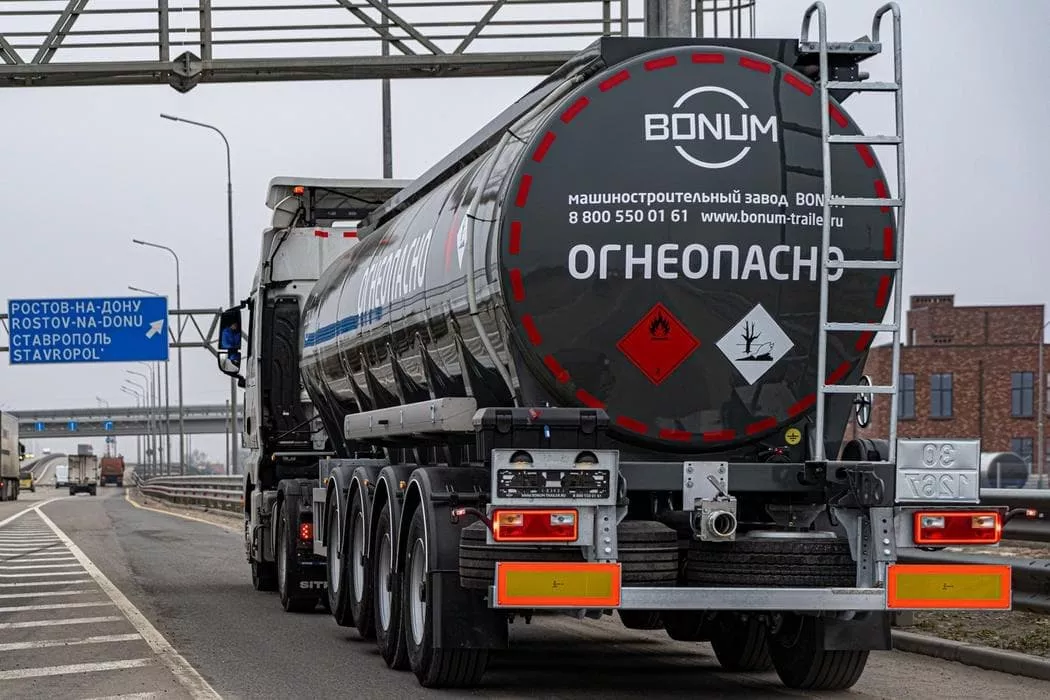

Oil tanker 32 m3 (the shape of the bulb is cylindrical)

914221-02

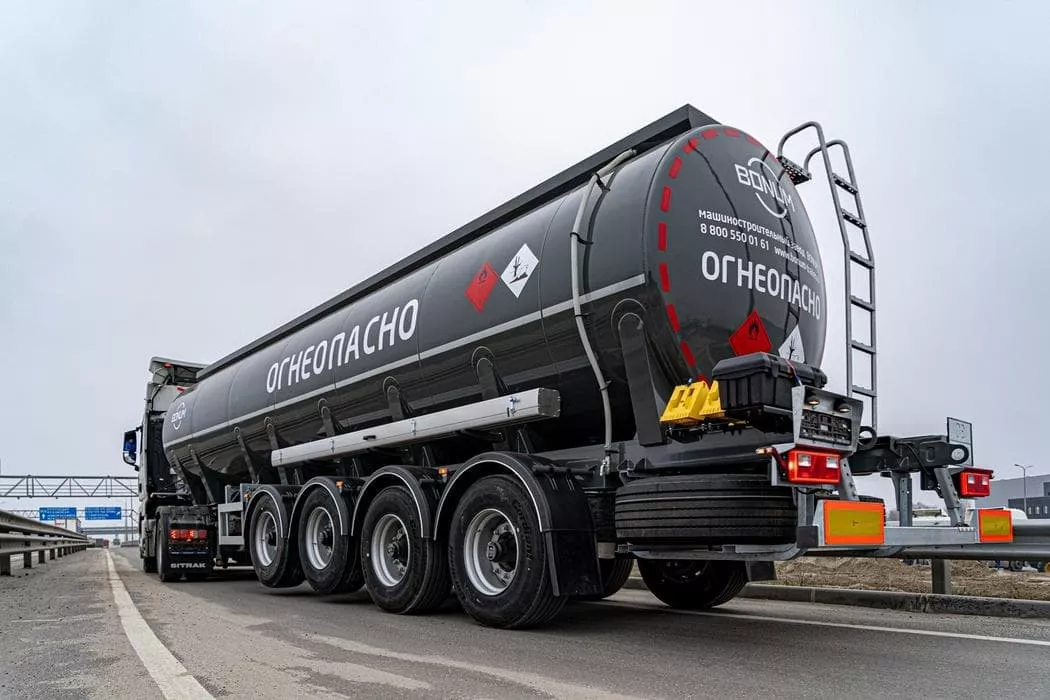

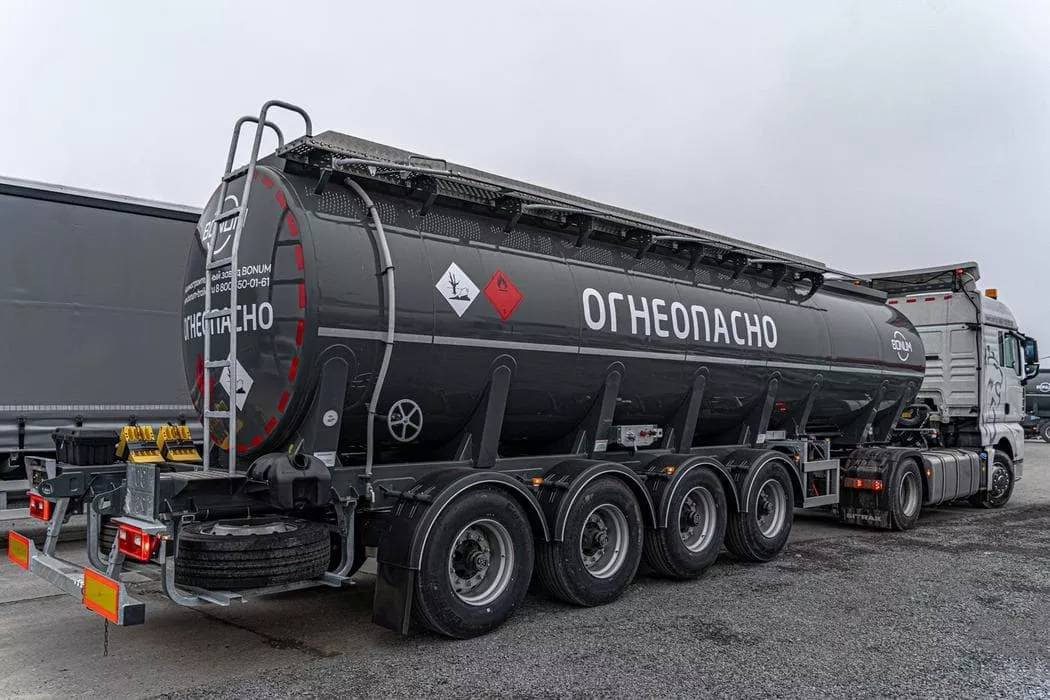

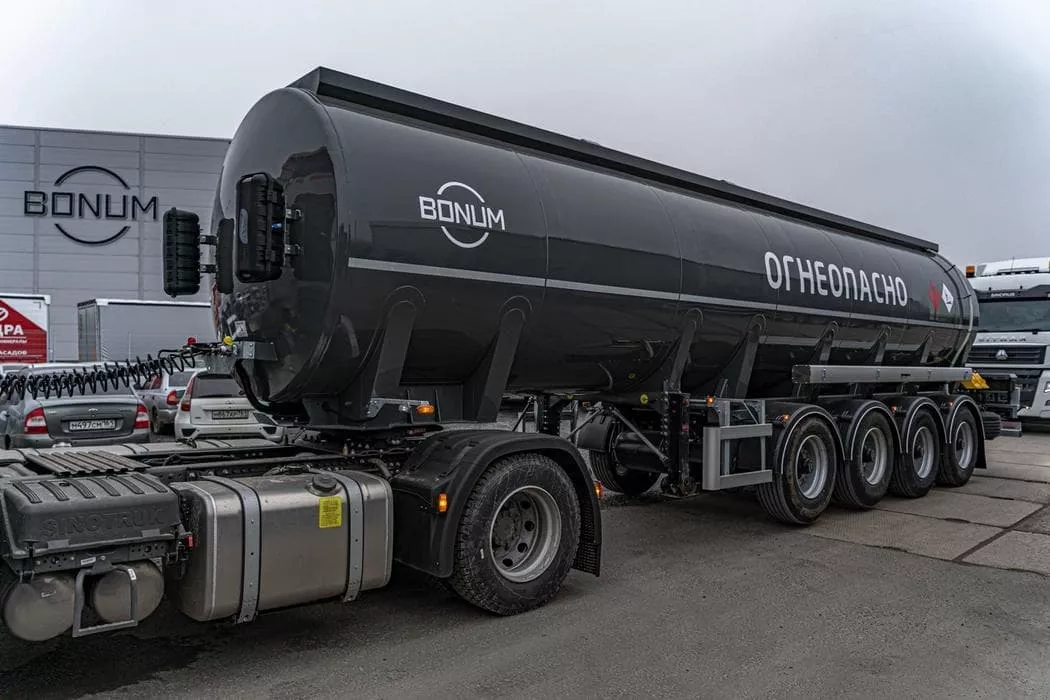

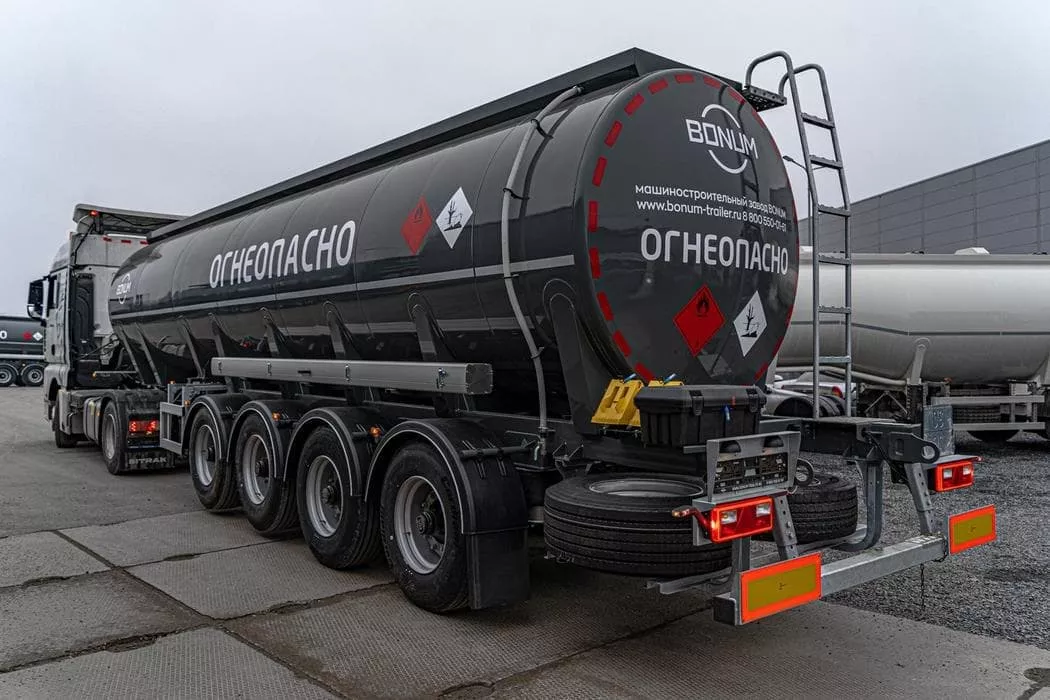

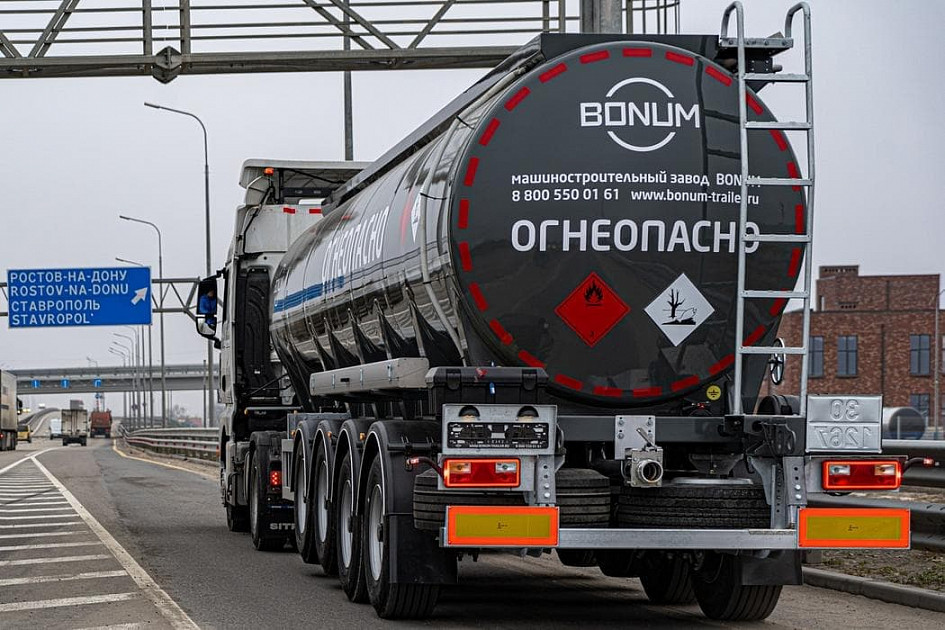

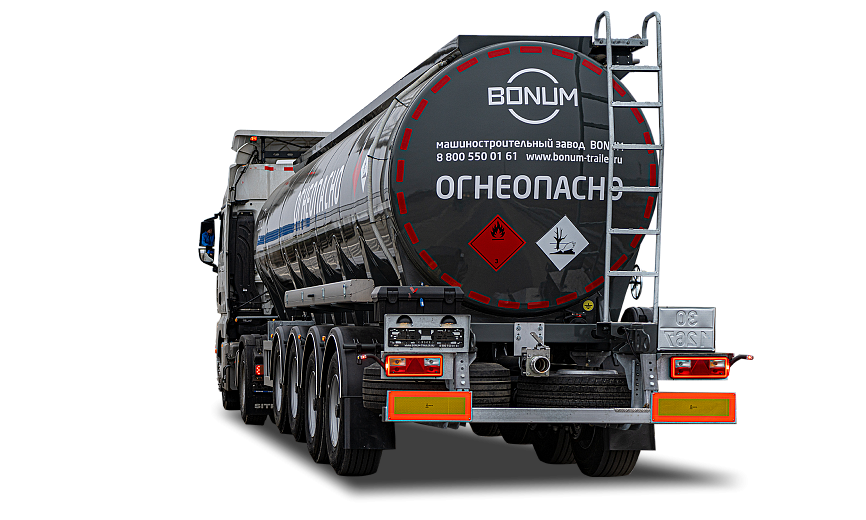

Oil tanker 32 m3 (the shape of the bulb is cylindrical)
  • Volume
    32 m3
  • Number of axes
    4 axes
  • Curb weight
    from 8,400 kg

Technical data

  • Volume

    32 m3
  • Type of equipment

    tank semi-trailer
  • Bulb material

    steel 09G2S
    thickness 4 mm
  • Bulb shape

    is cylindrical
  • Curb weight

    from 8,400 kg
  • Overall dimensions

    length: 11,600 mm

    width: 2,550 mm

    height: 3,510 mm

  • Number of axes

    4 axes
  • Fifth-wheel coupling height

    1,150 mm
  • Suspension and tires

    • 4 axes;
    • 2 lifting axles;
    • drum/disc type brake mechanisms;
    • tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 8 + 1 pc.
  • Painting

    THE SEMI-TRAILER IS PAINTED ACCORDING TO THE PROPRIETARY THREE-STAGE PAINTING SYSTEM "PRIME SYSTEM":
    • surface treatment in a shot blasting chamber;
    • coating with a primer containing anticorrosive elements;
    • painting with premium enamel.
  • Brake system

    pneumatic two-circuit.
  • Electrical equipment

    electrical equipment Aspoeck / Hella / Ermax or similar.
View all
Construction
Equipment
Extra options
Construction
  • pin with a diameter of 2”, international type with a base plate;
  • the landing gear is two-speed with manual one-way drive;
  • ecological box with drain on two sides;
  • ball valve;
  • mechanical bottom valve DKB 100 SB;

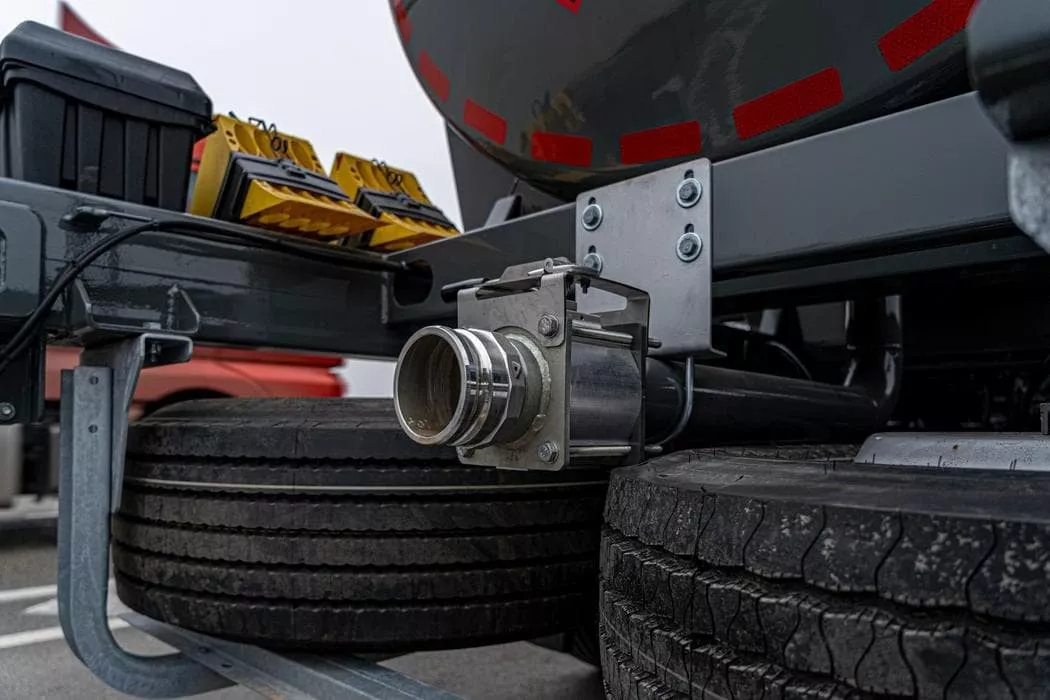

  • the drain is located at the back of the tank;
  • spare wheel mounting device;
  • anti-roll bar with height adjustment;
  • galvanized steel footpath;
  • ladder at the back of the tank;
  • aluminum lifting railings.
Equipment
composite drain sleeve heat resistant 4 m
1 pcs pc.
quick-release connections of the Camlock type or an analog on drain sleeves
case for drain hoses
1 pcs pc.
sand box
1 pcs pc.
fire extinguisher box
2 pcs pcs
fire extinguisher
2 pcs pcs
water tank with faucet and dispenser for liquid soap
1 pcs pc.
contour reflective marking with premium quality tape
a plate indicating the type of cargo

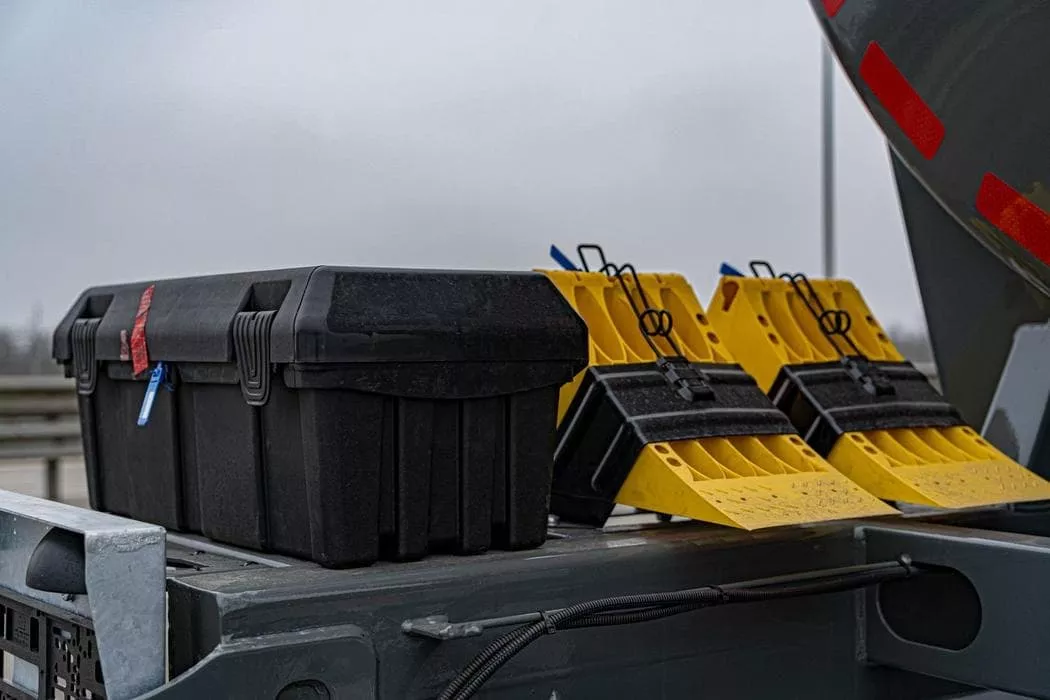

anti-rollback stops
2 pcs pcs
individual wings with brackets
8 pcs pcs
rear wheel mudguards
2 pcs pcs
side protection
2 pcs pcs
Extra options
They are selected based on your wishes and the specifics of your business
Installation of an additional bracket for a spare wheel with a winch (without a spare wheel)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Installation of an additional 4 m or 6 m pencil case for an aluminum drain sleeve
Installation of a metal tool box
Installation of pockets for danger signs (9 diamonds)
Installation of backup lights (2 pcs)
Non-standard semi-trailer paint color

Equipment

composite drain sleeve heat resistant 4 m
1 pcs pcs
quick-release connections of the Camlock type or an analog on drain sleeves
case for drain hoses
1 pcs pcs
sand box
1 pcs pcs
fire extinguisher box
2 pcs pcs
fire extinguisher
2 pcs pcs
water tank with faucet and dispenser for liquid soap
1 pcs pcs
contour reflective marking with premium quality tape
a plate indicating the type of cargo
anti-rollback stops
2 pcs pcs
individual wings with brackets
8 pcs pcs
rear wheel mudguards
2 pcs pcs
side protection
2 pcs pcs

Construction

  • pin with a diameter of 2”, international type with a base plate;
  • the landing gear is two-speed with manual one-way drive;
  • ecological box with drain on two sides;
  • ball valve;
  • mechanical bottom valve DKB 100 SB;
  • the drain is located at the back of the tank;
  • spare wheel mounting device;
  • anti-roll bar with height adjustment;
  • galvanized steel footpath;
  • ladder at the back of the tank;
  • aluminum lifting railings.

Extra options

They are selected based on your wishes and the specifics of your business
Installation of an additional bracket for a spare wheel with a winch (without a spare wheel)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Installation of an additional 4 m or 6 m pencil case for an aluminum drain sleeve
Installation of a metal tool box
Installation of pockets for danger signs (9 diamonds)
Installation of backup lights (2 pcs)
Non-standard semi-trailer paint color
