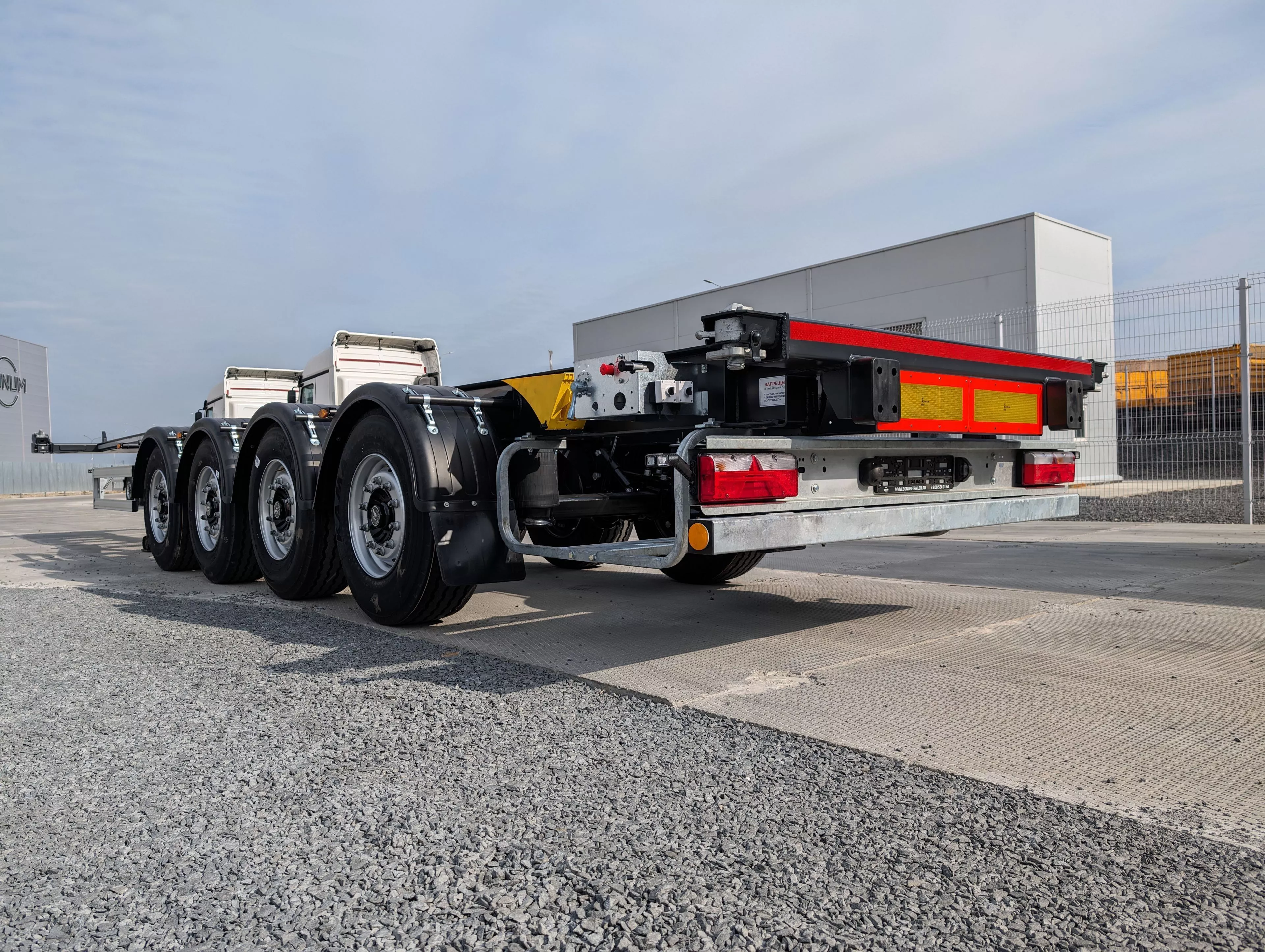

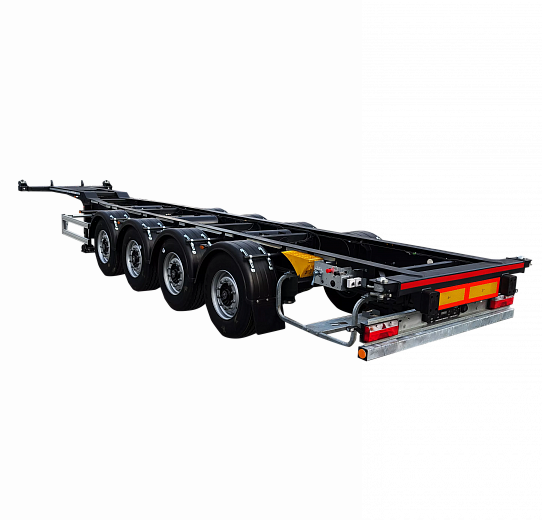

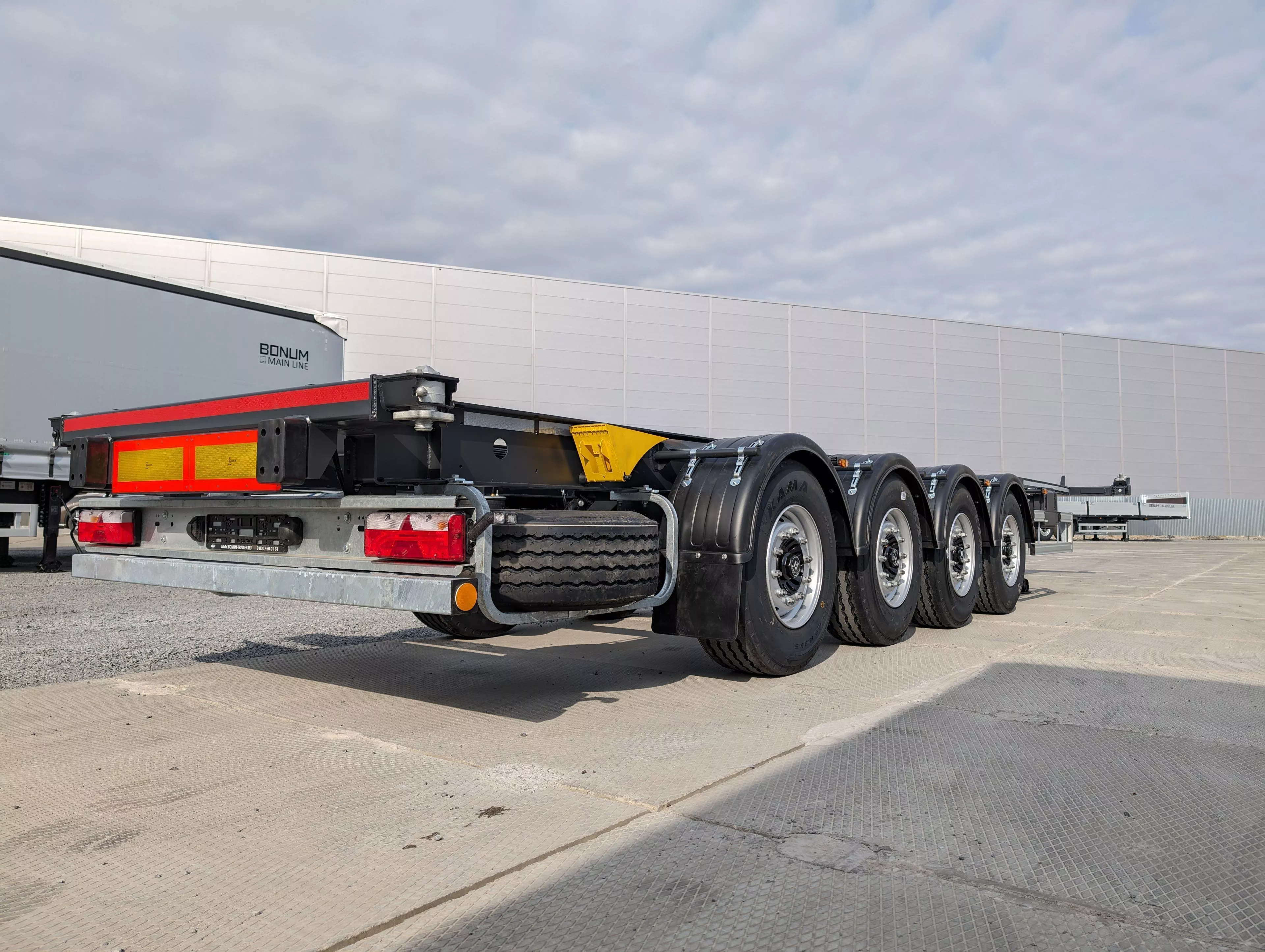

Container ship for 40 ft container transportation
Photo gallery
Technical data
-
Curb weight
from 5 030 kg -
Type of equipment
Container ship for 40 ft container transportation -
Overall dimensions
length 12 540 mm
width 2 550 mm
height 1 230 mm -
Designation
transportation of containers:
1 x 40'
-

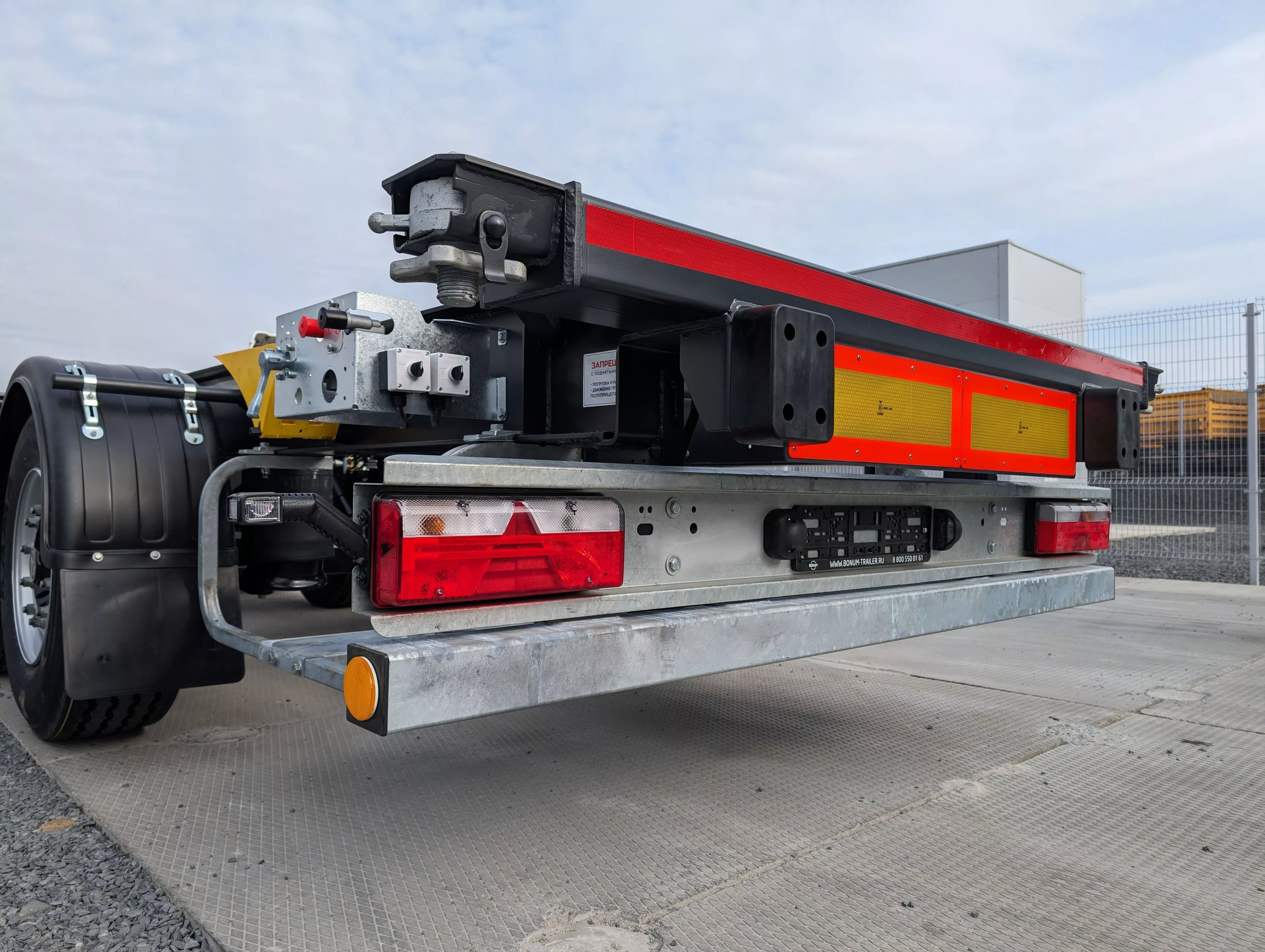

Electrical equipment
ASPOECK (explosion-proof wiring) -
Brake system
pneumatic with EBS -
Painting
the frame is painted according to the proprietary three-stage painting system
«Prime System»
- surface treatment in a shot blasting chamber
- coating with a primer containing anticorrosive elements
- painting with premium enamel
-

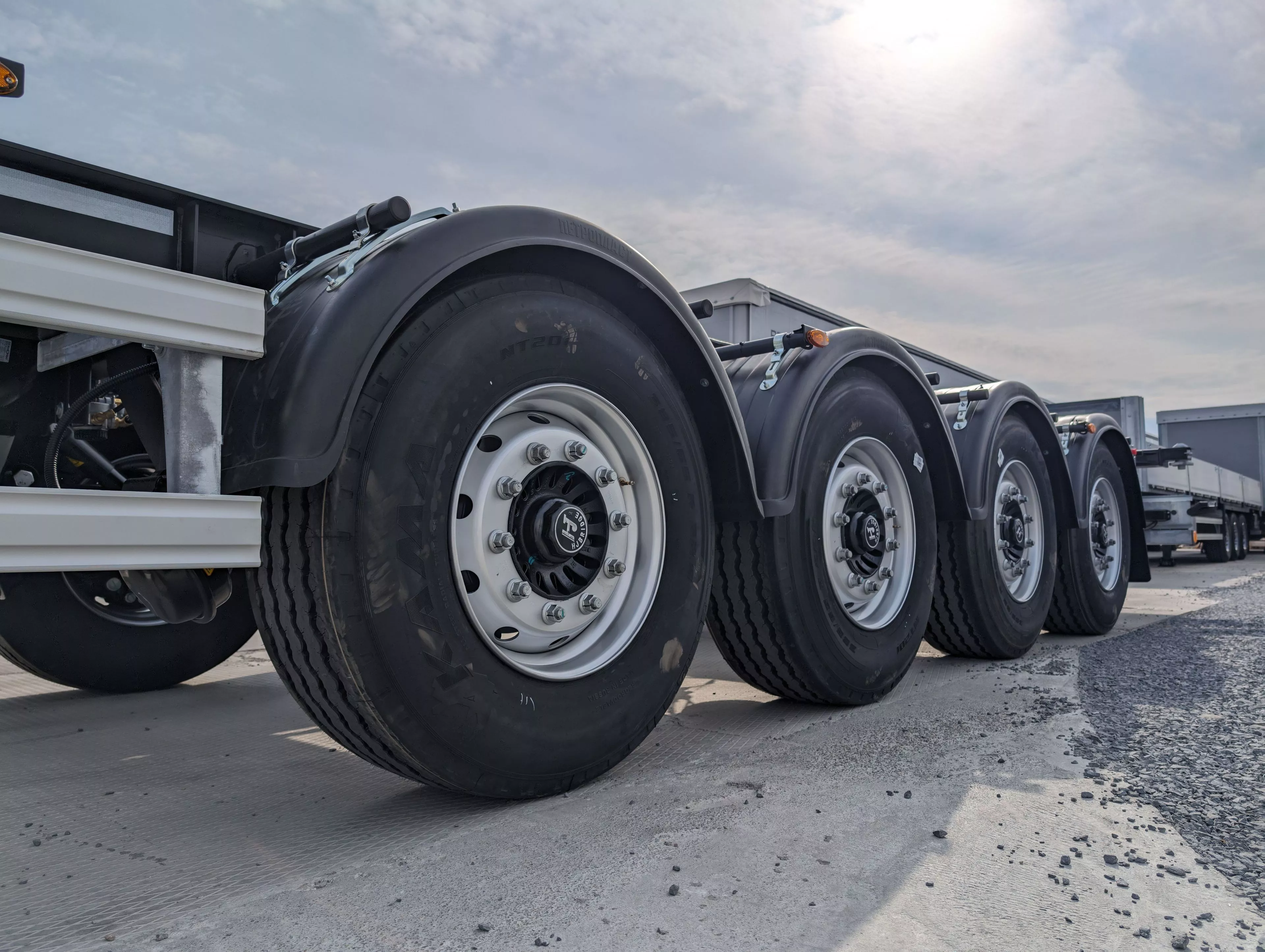

Suspension and tires
- 4 axes;
- 2 lifting axles;
- drum/disc type brake mechanisms;
- tires (at the discretion of the manufacturer) with a dimension of 385/55 R22.5 with a disc - 8 pcs.
