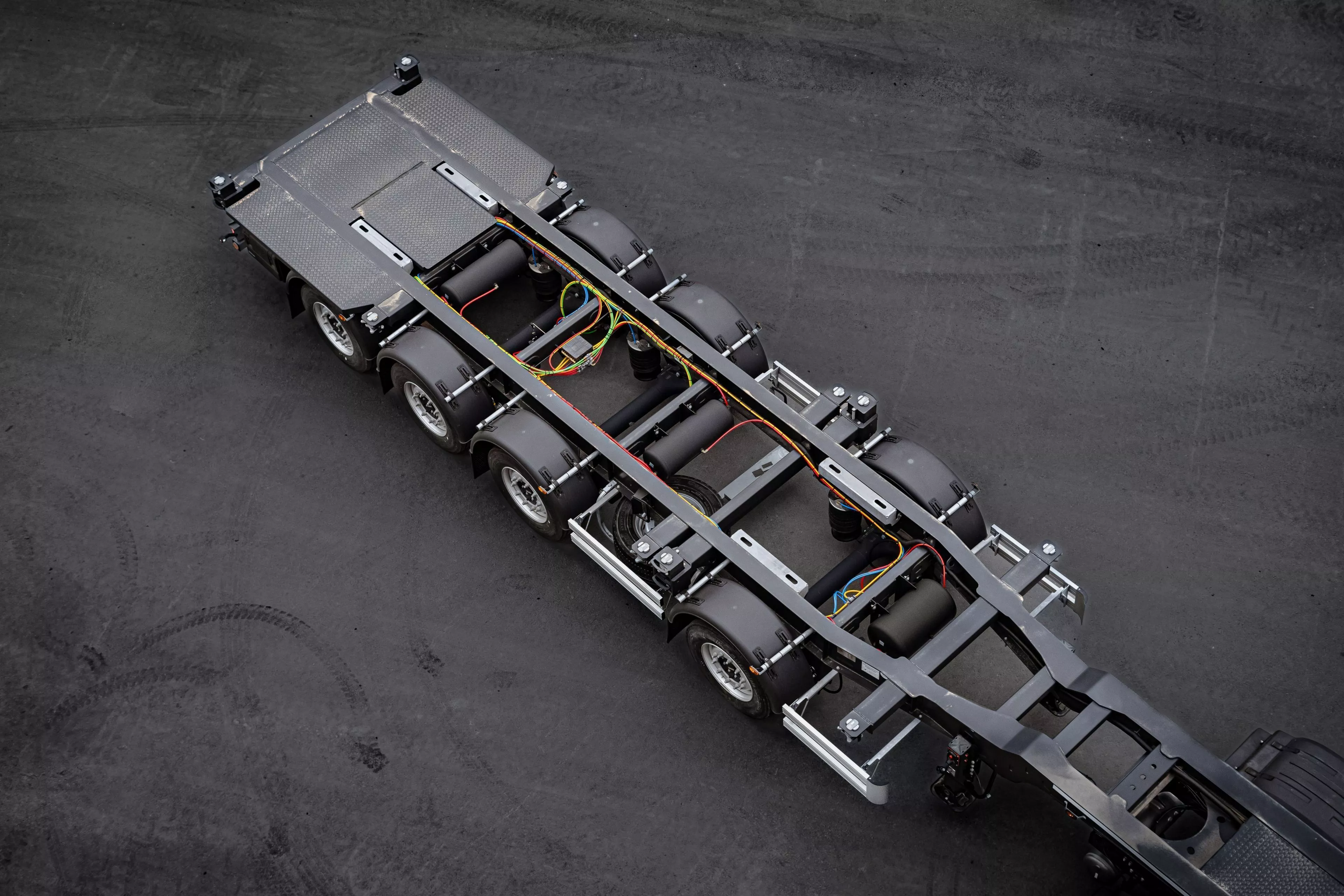

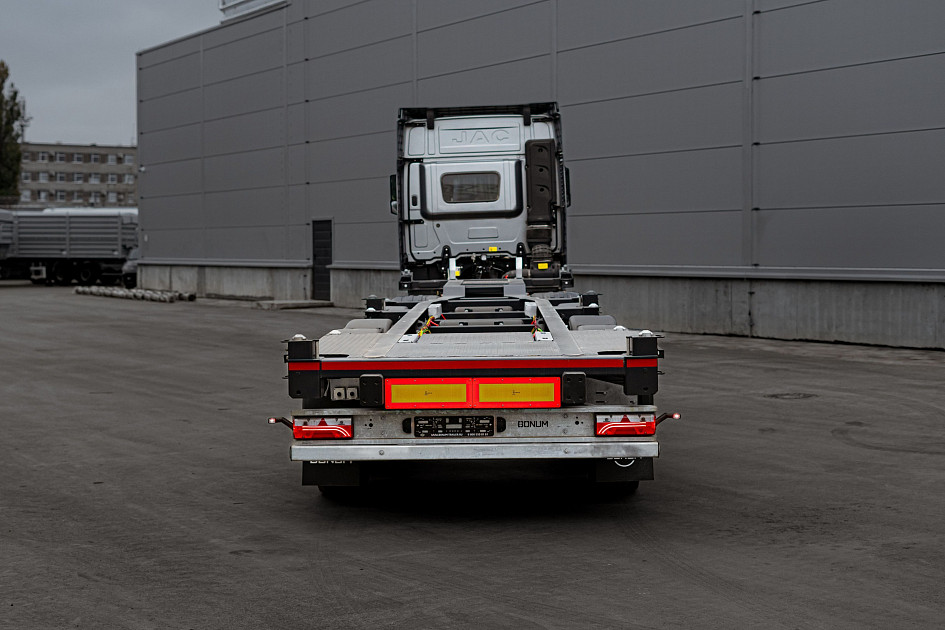

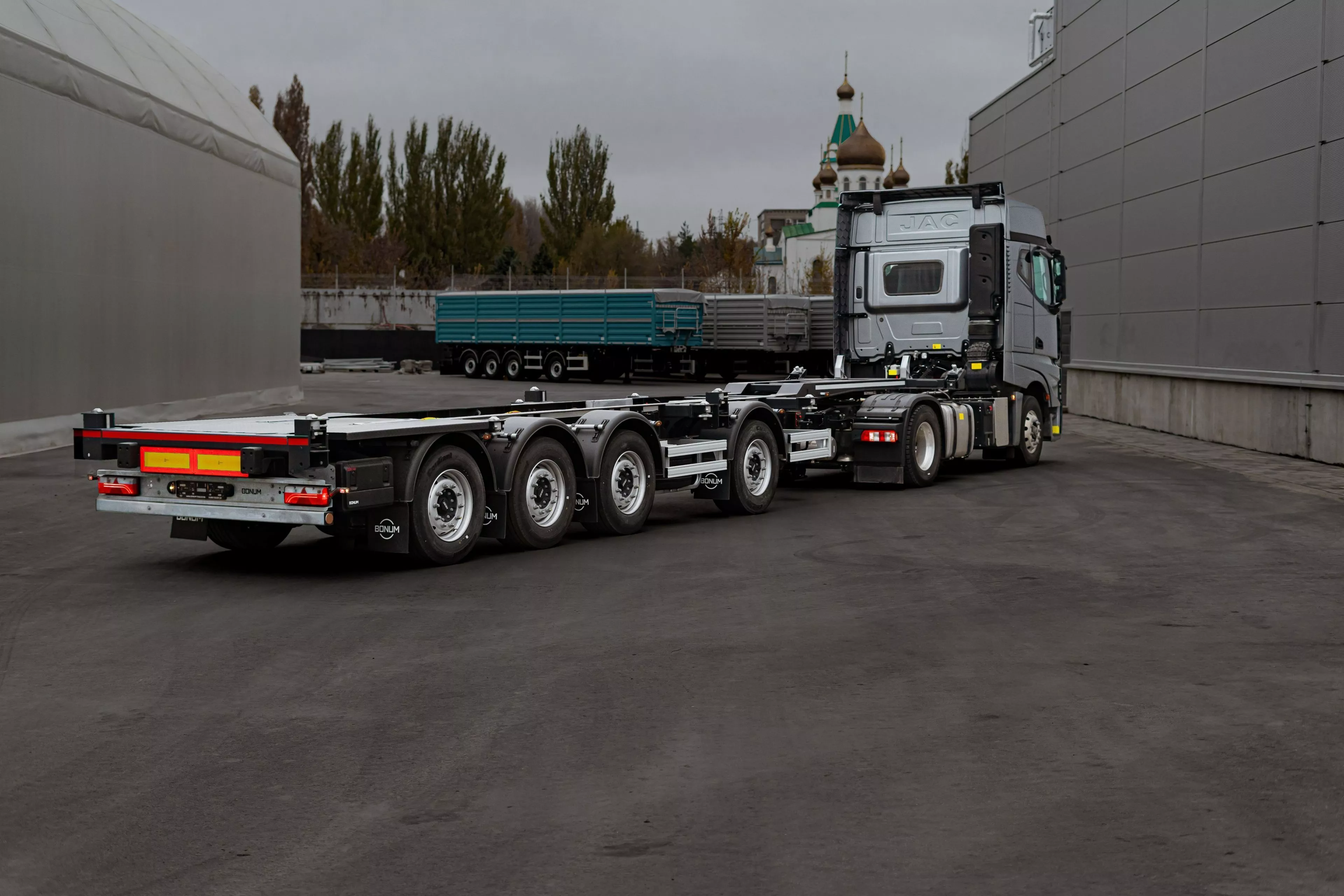

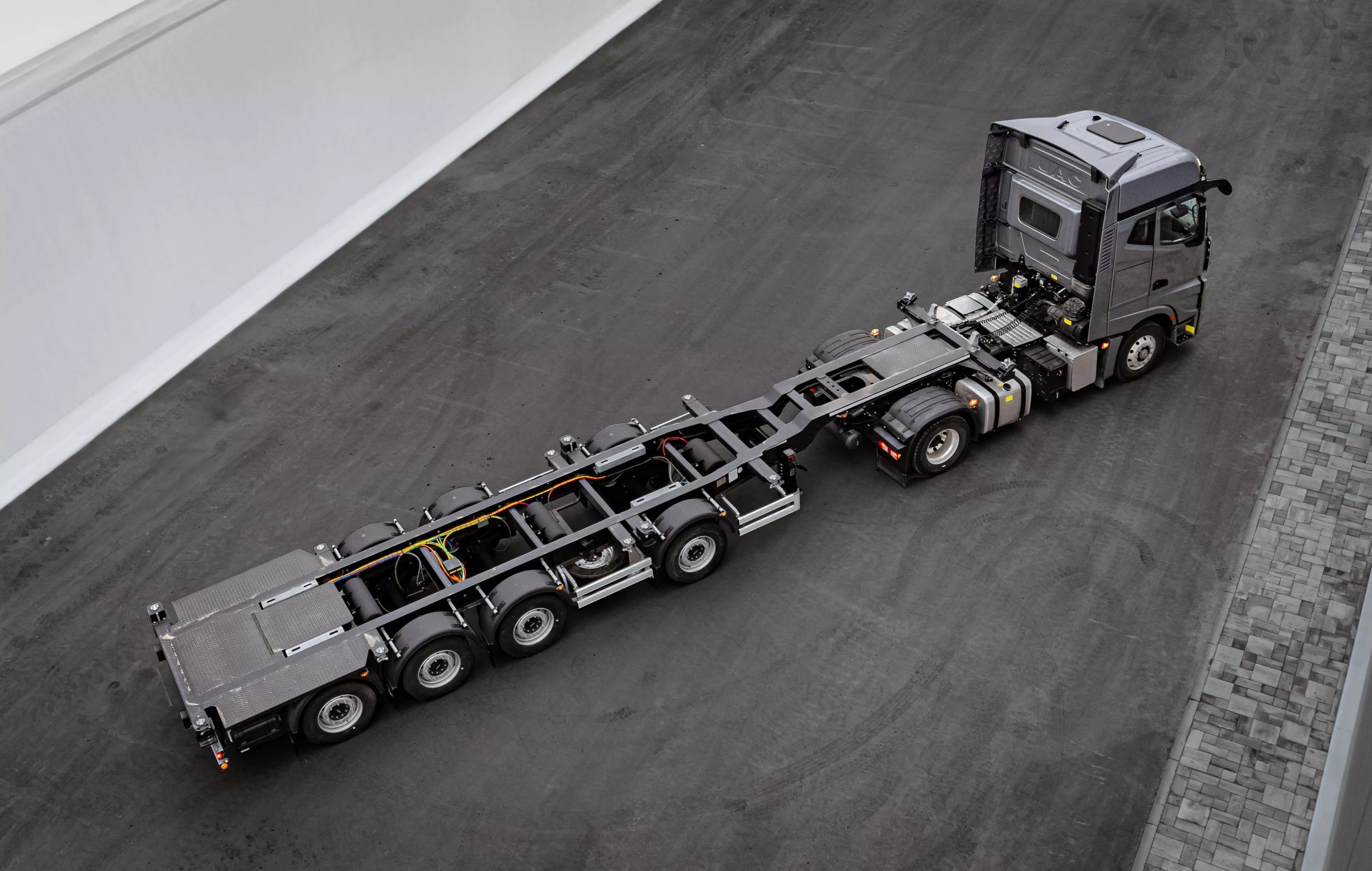

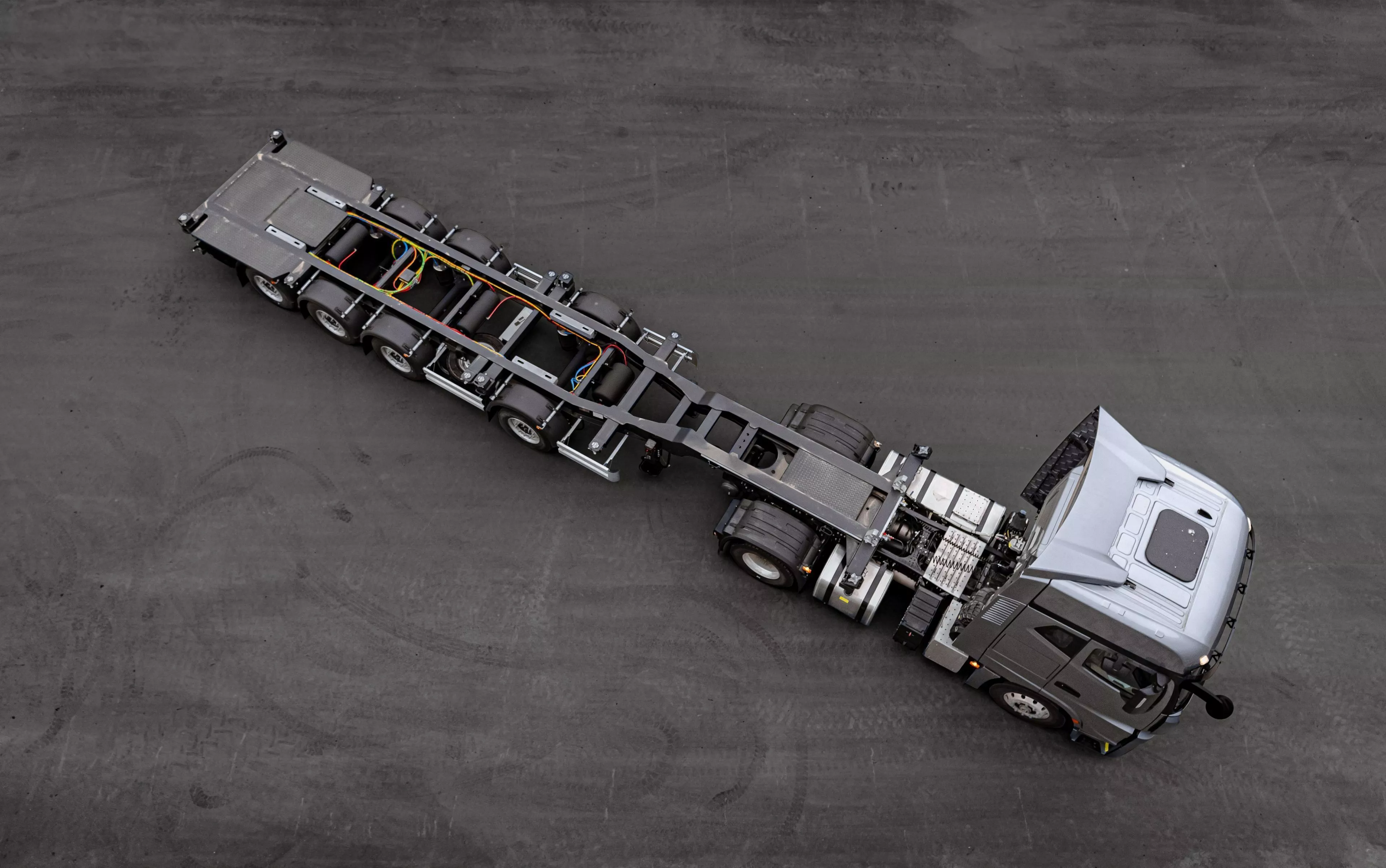

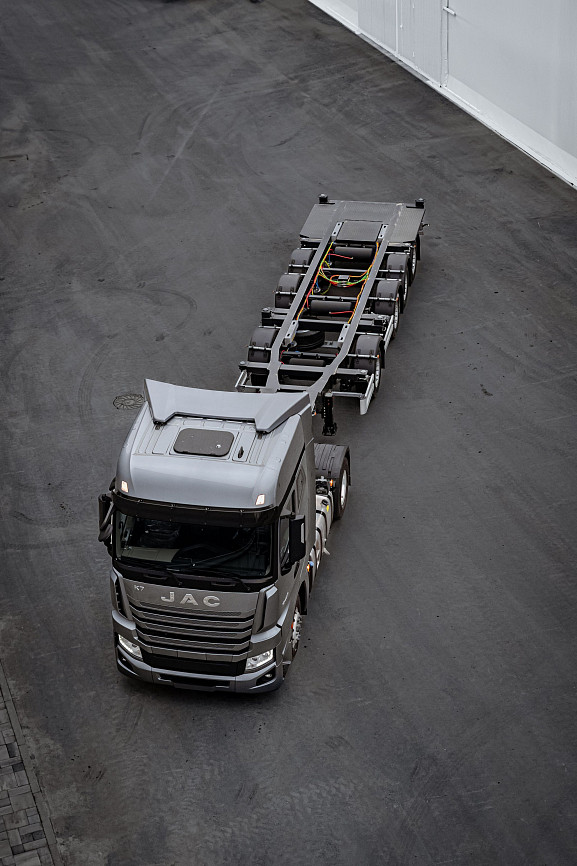

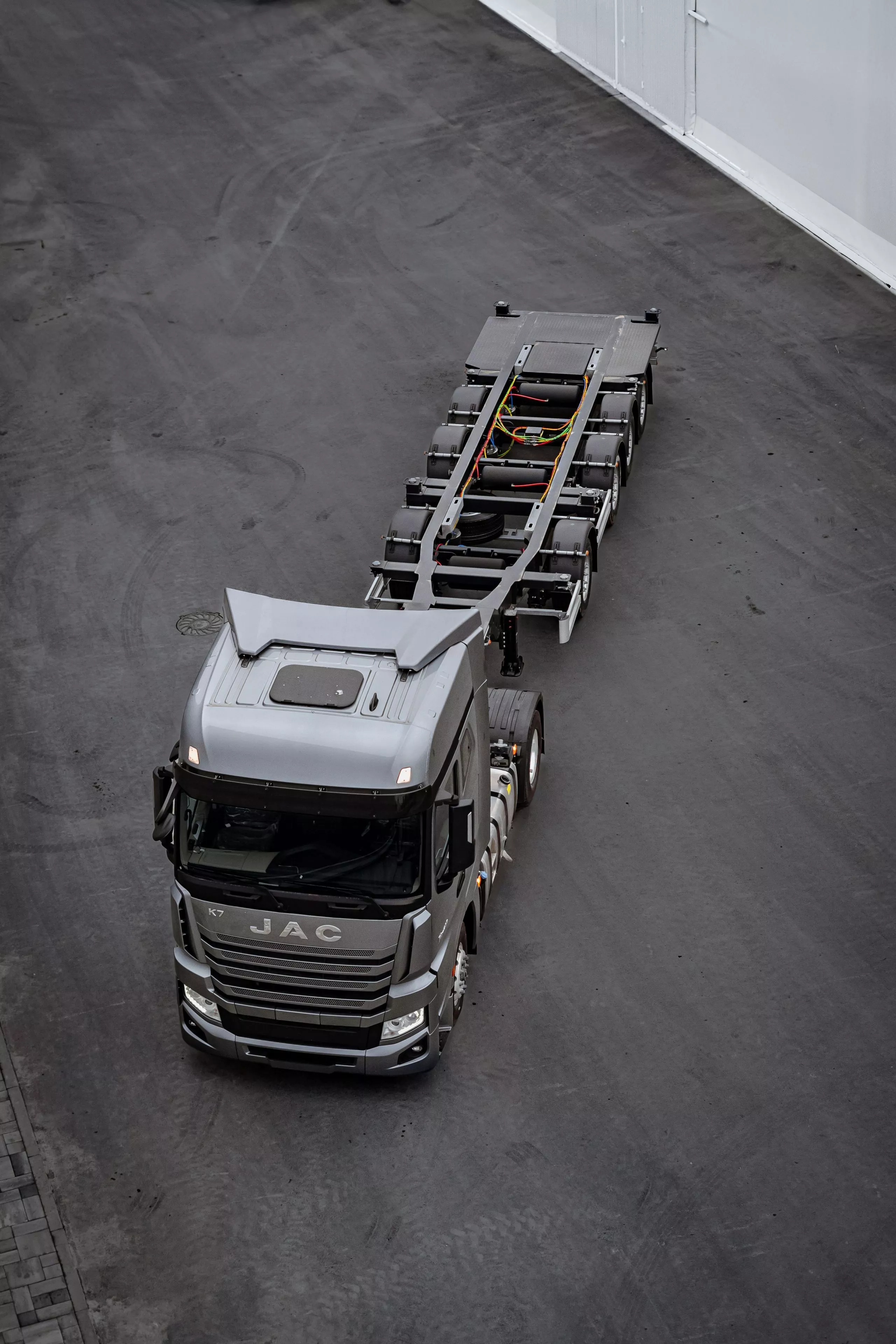

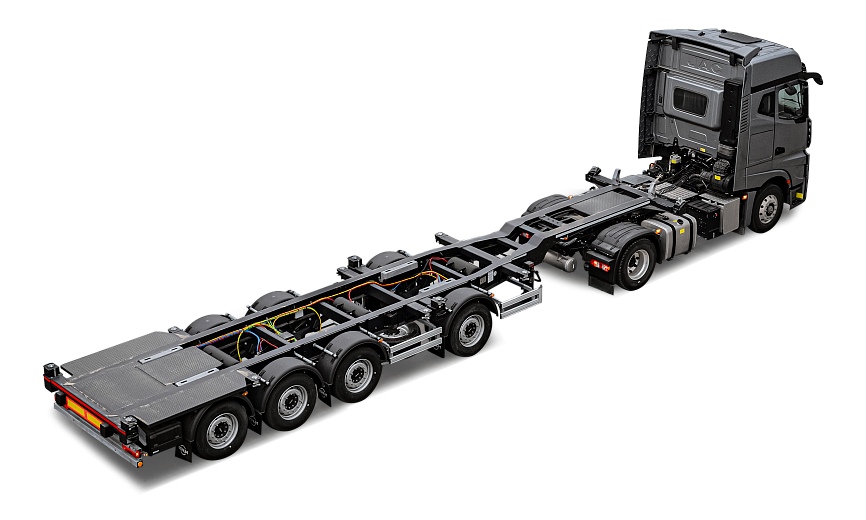

A universal container ship with outrigger axle
Photo gallery
Technical data
-
Curb weight
from 5,800 kg. -
Type of equipment
universal container ship. -
Overall dimensions
length 12,540 mm;
width 2,550 mm;
height 1,230 mm. -
Designation
transportation of containers:
1 x 20’
2 x 20'
1 x 40'
1 x 40' HC
-
Electrical equipment
Aspoeck / Hella / Ermax or similar. -

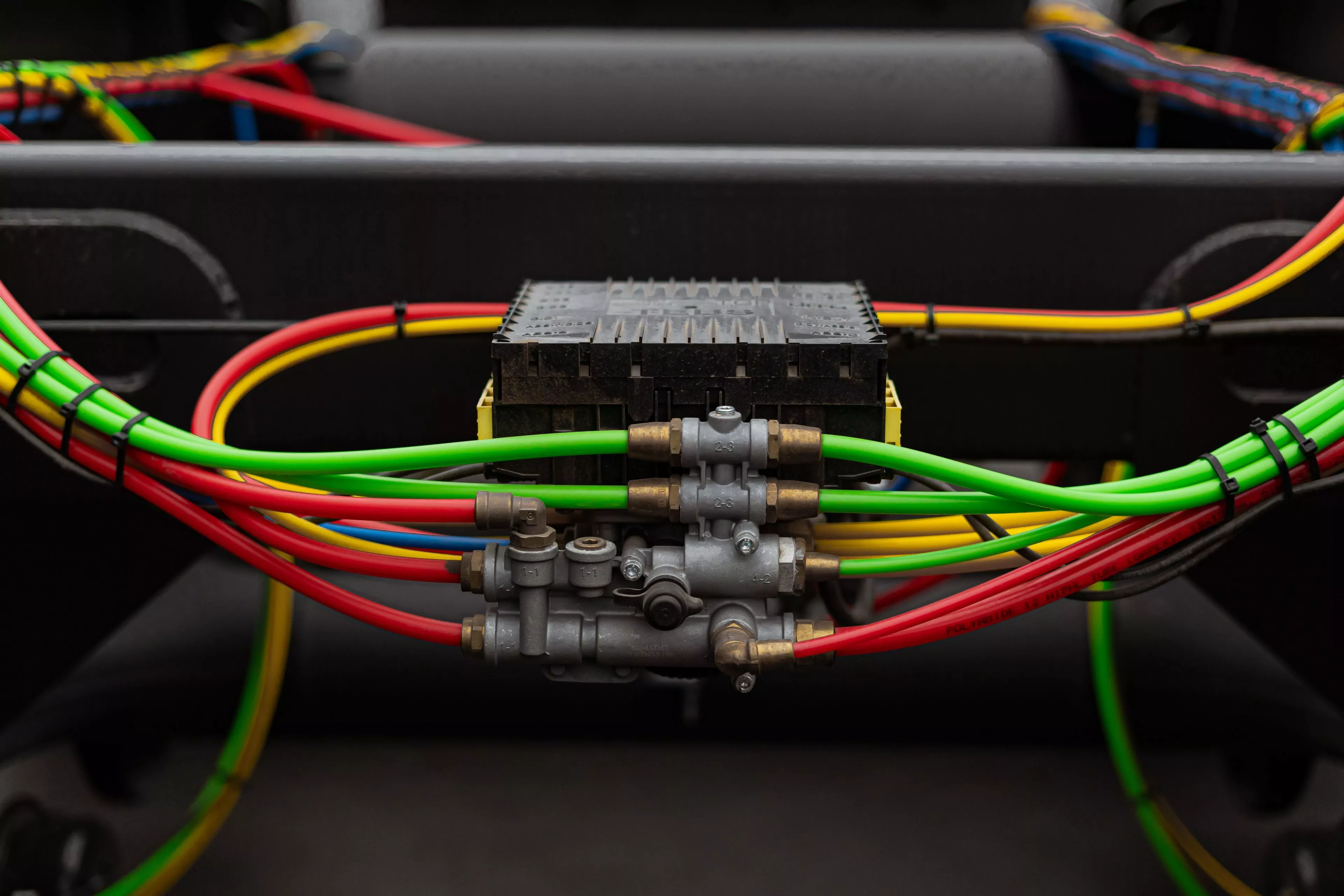

Brake system
pneumatic two-circuit. -
Painting
the frame is painted according to the proprietary three-stage painting system
«Prime System»
- surface treatment in a shot blasting chamber;
- coating with a primer containing anticorrosive elements;
- painting with premium enamel.
-

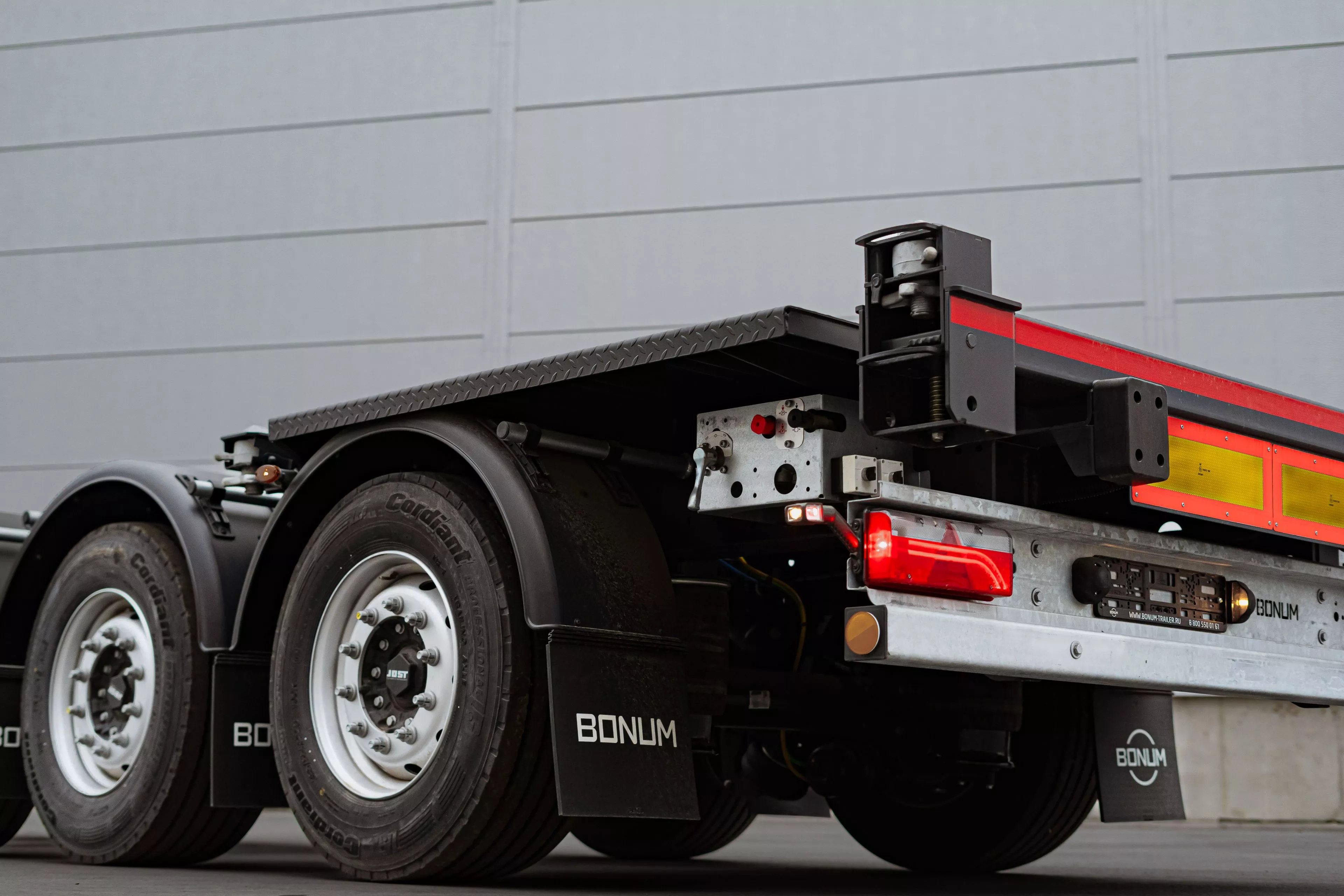

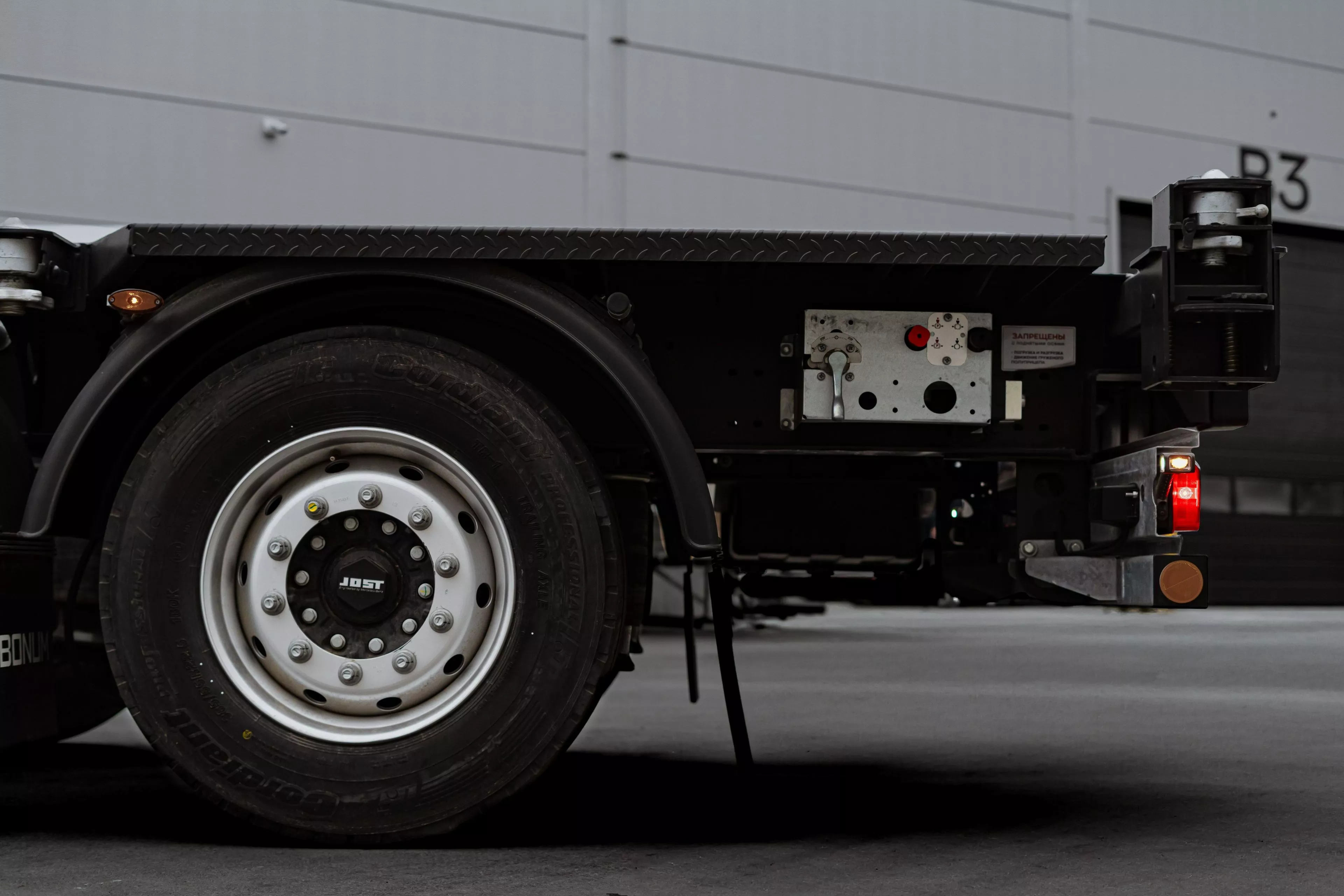

Suspension and tires
- 4 axes;
- 2 lifting axles;
- drum/disc type brake mechanisms;
- tires (at the discretion of the manufacturer) with a dimension of 385/55 R22.5 with a disc - 8 pcs.
