Curtain semi-trailer 13,62 m for transporting steel rolls

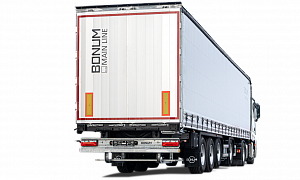

Curtain semi-trailer 13,62 m with outrigger axle for transporting steel rolls

Curtain-side semi-trailer 13,62 m for transporting steel rolls

914296-04

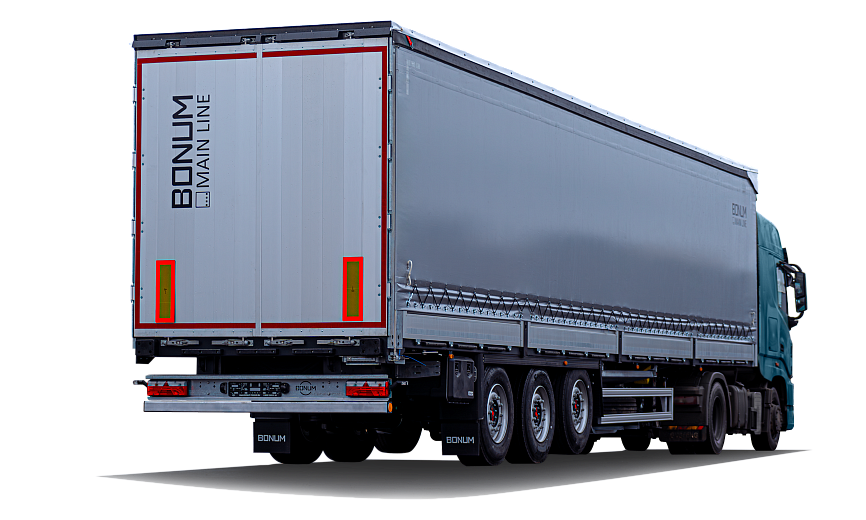

Curtain-side semi-trailer 13,62 m for transporting steel rolls
price list order
  • Volume
    91 m3
  • Number of axes
    3 axes
  • Curb weight
    from 7,700 kg

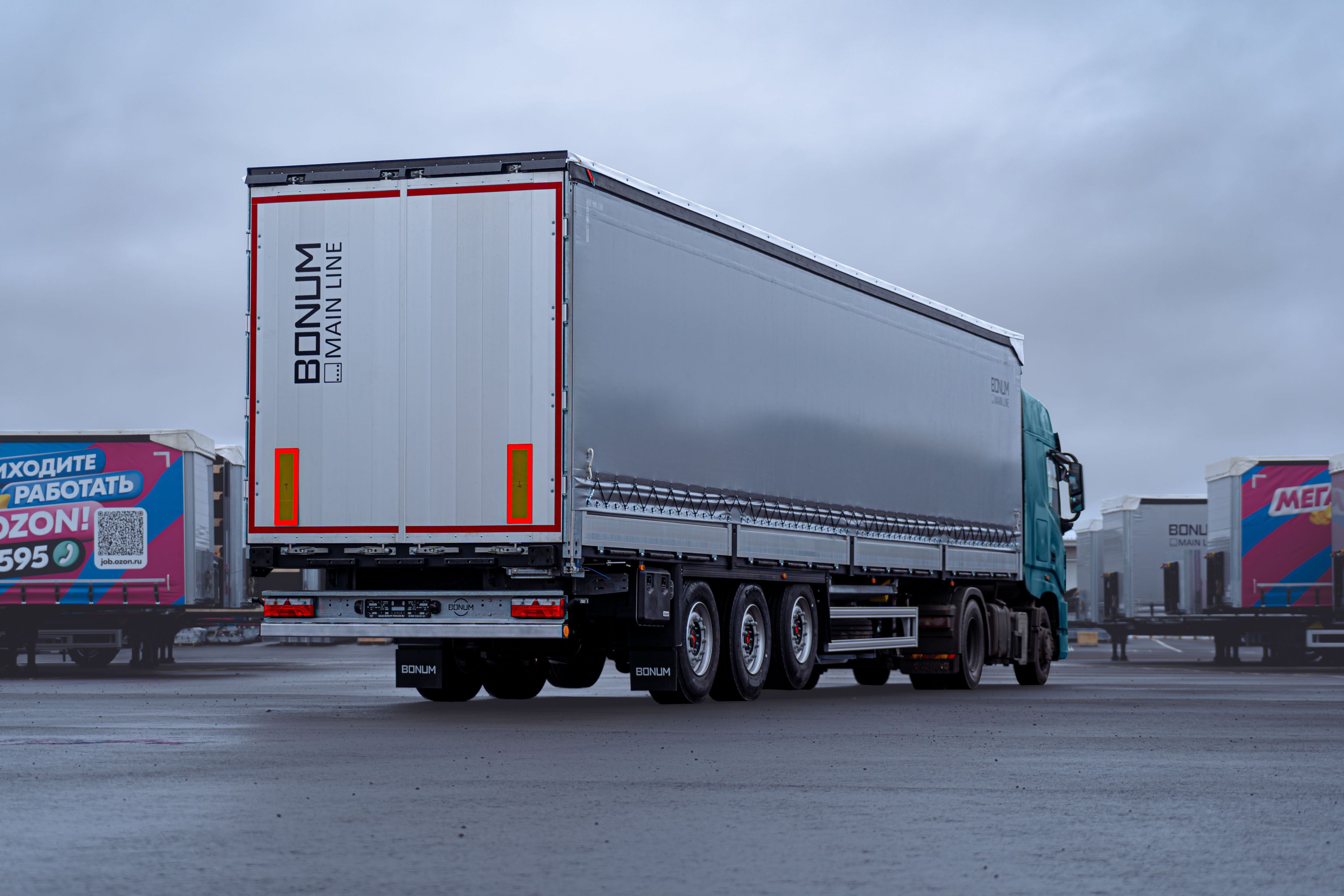

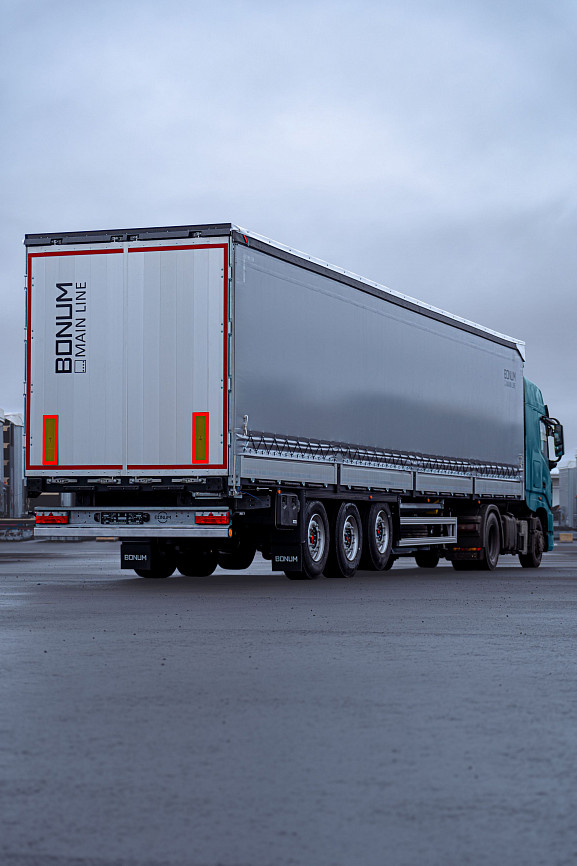

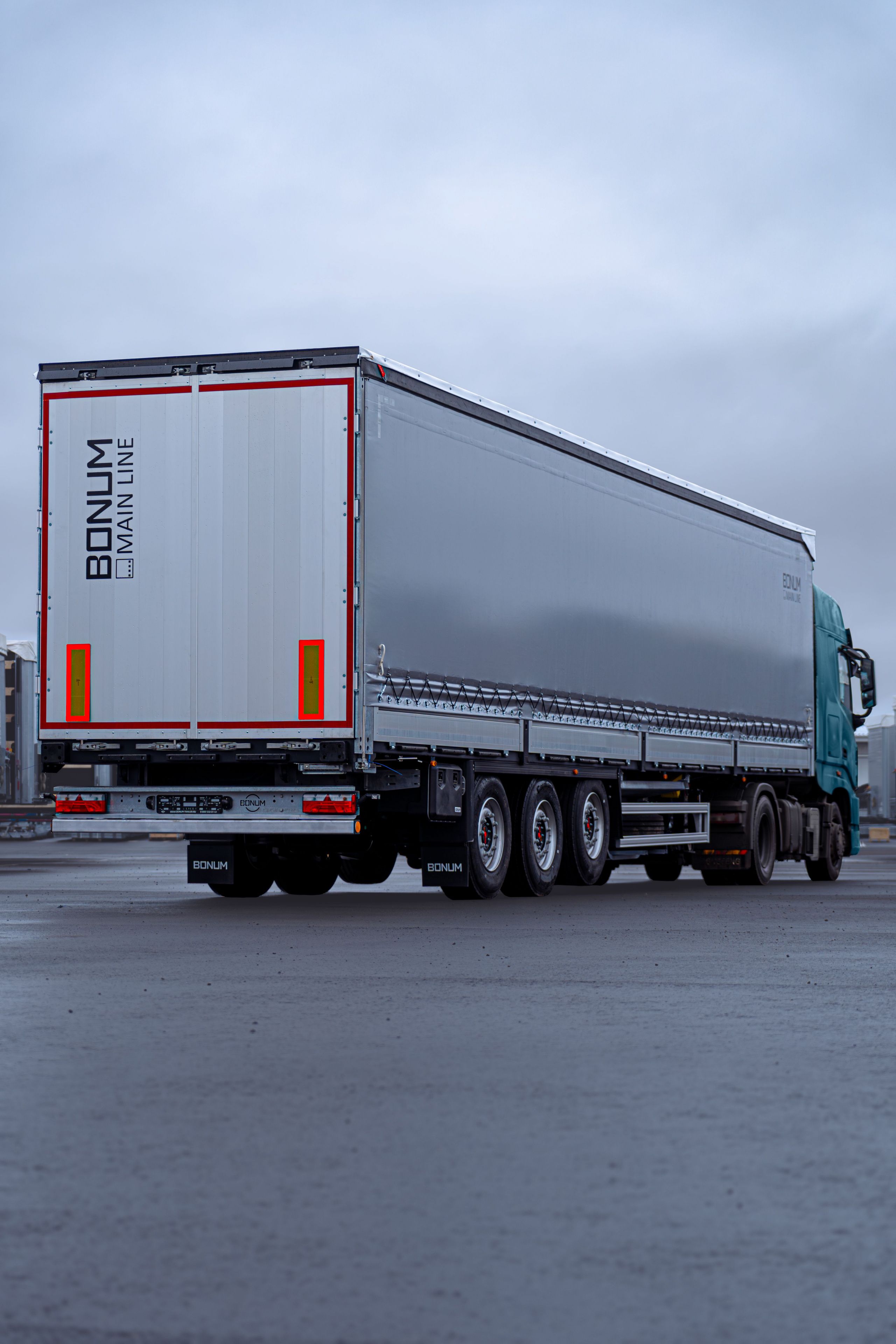

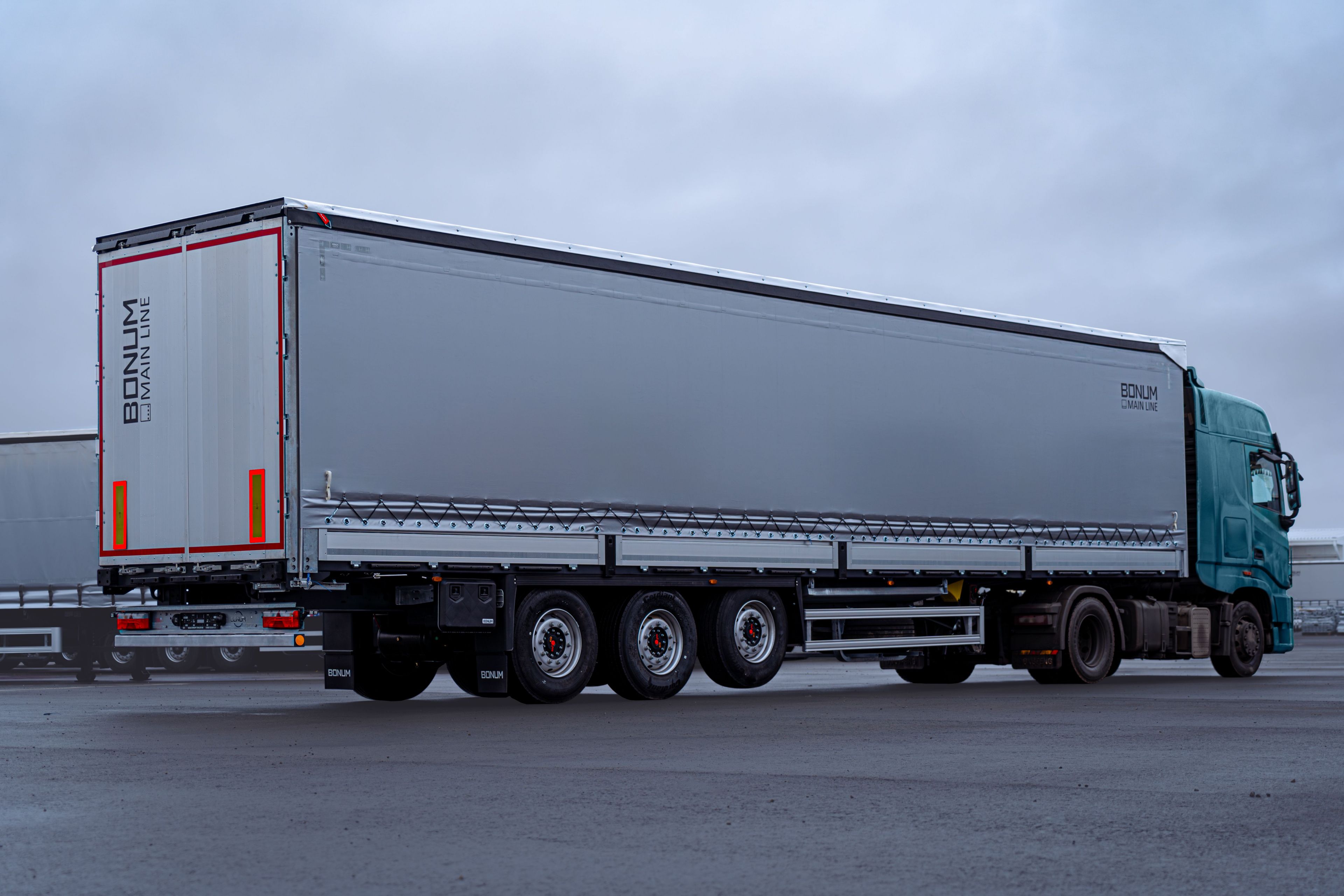

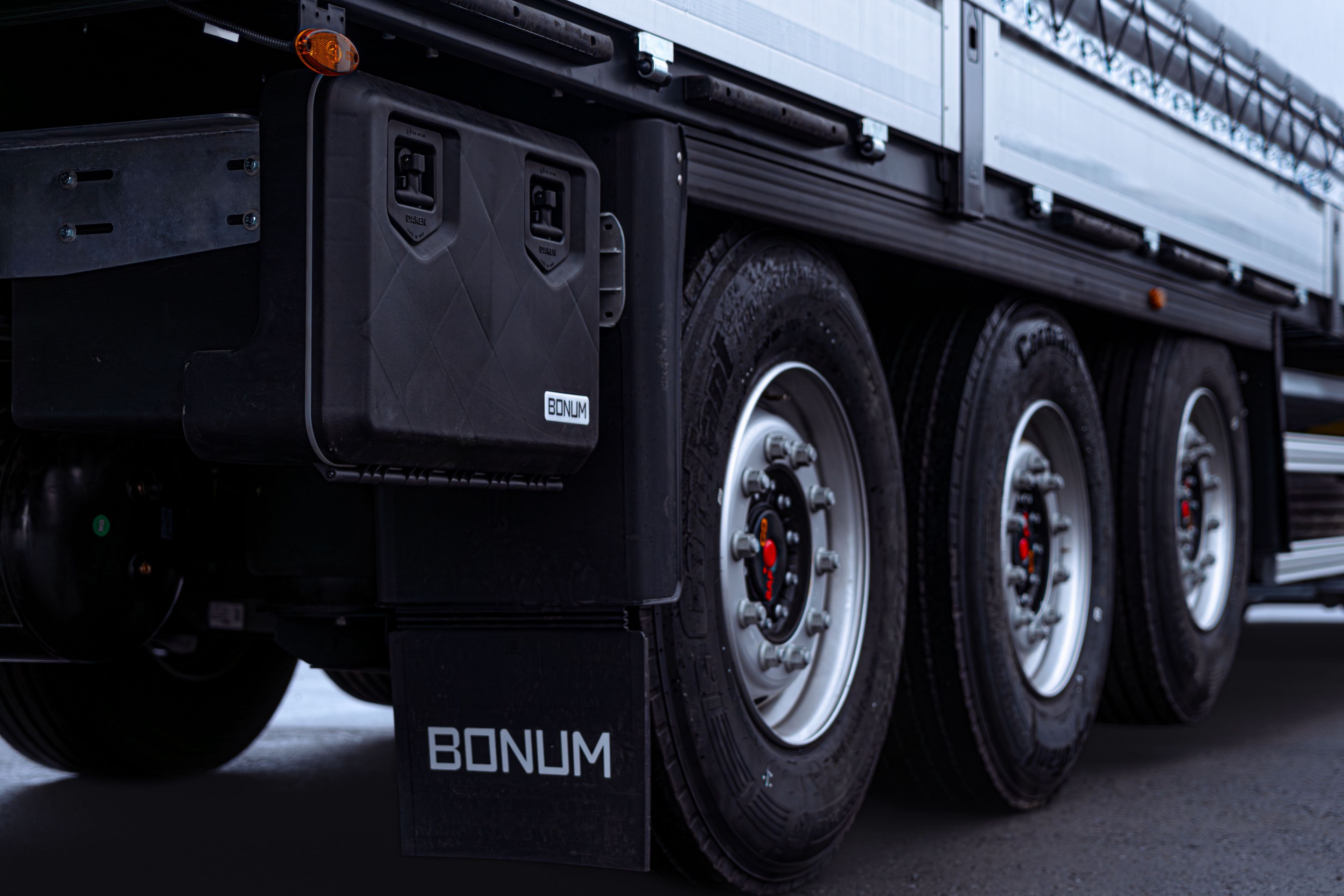

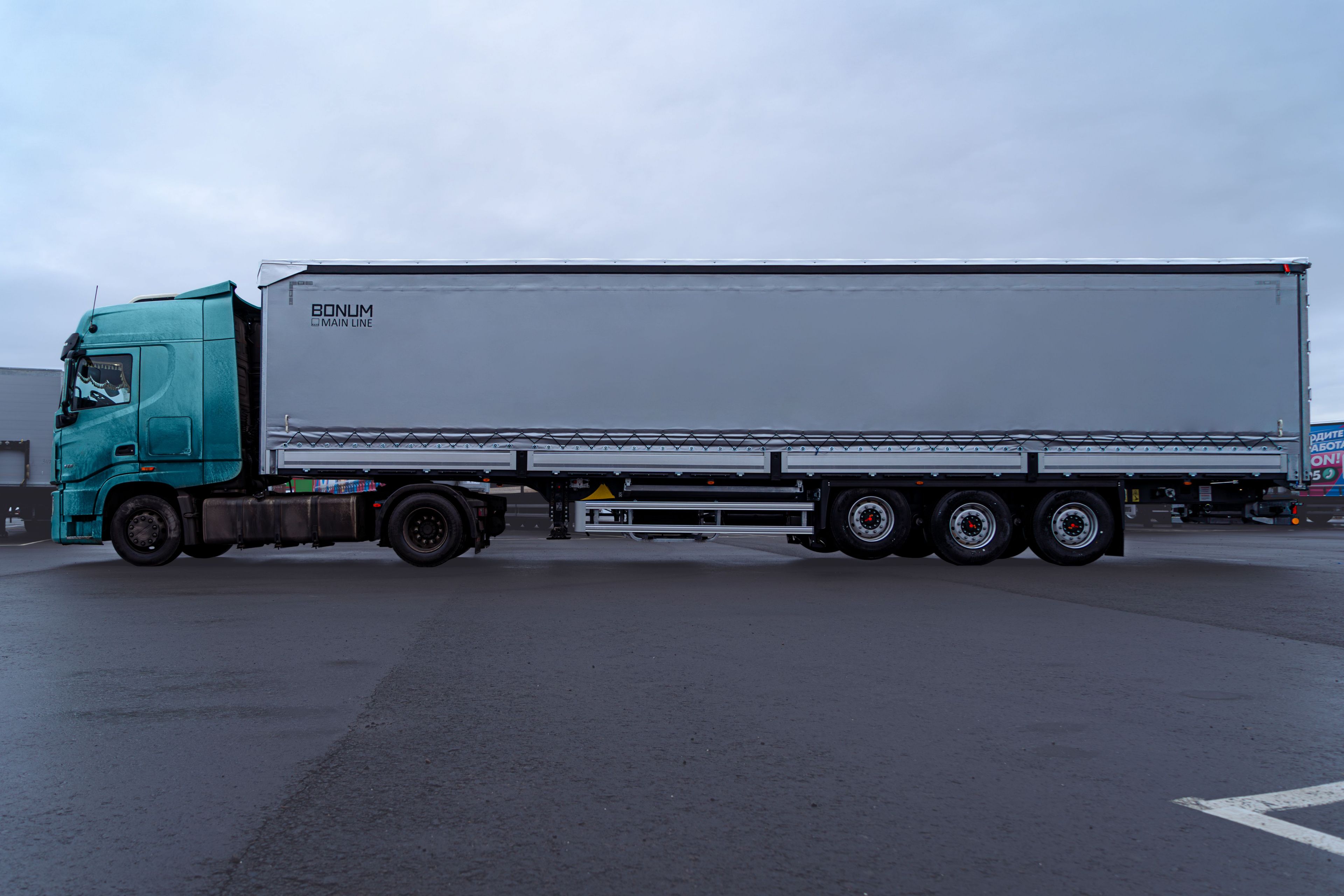

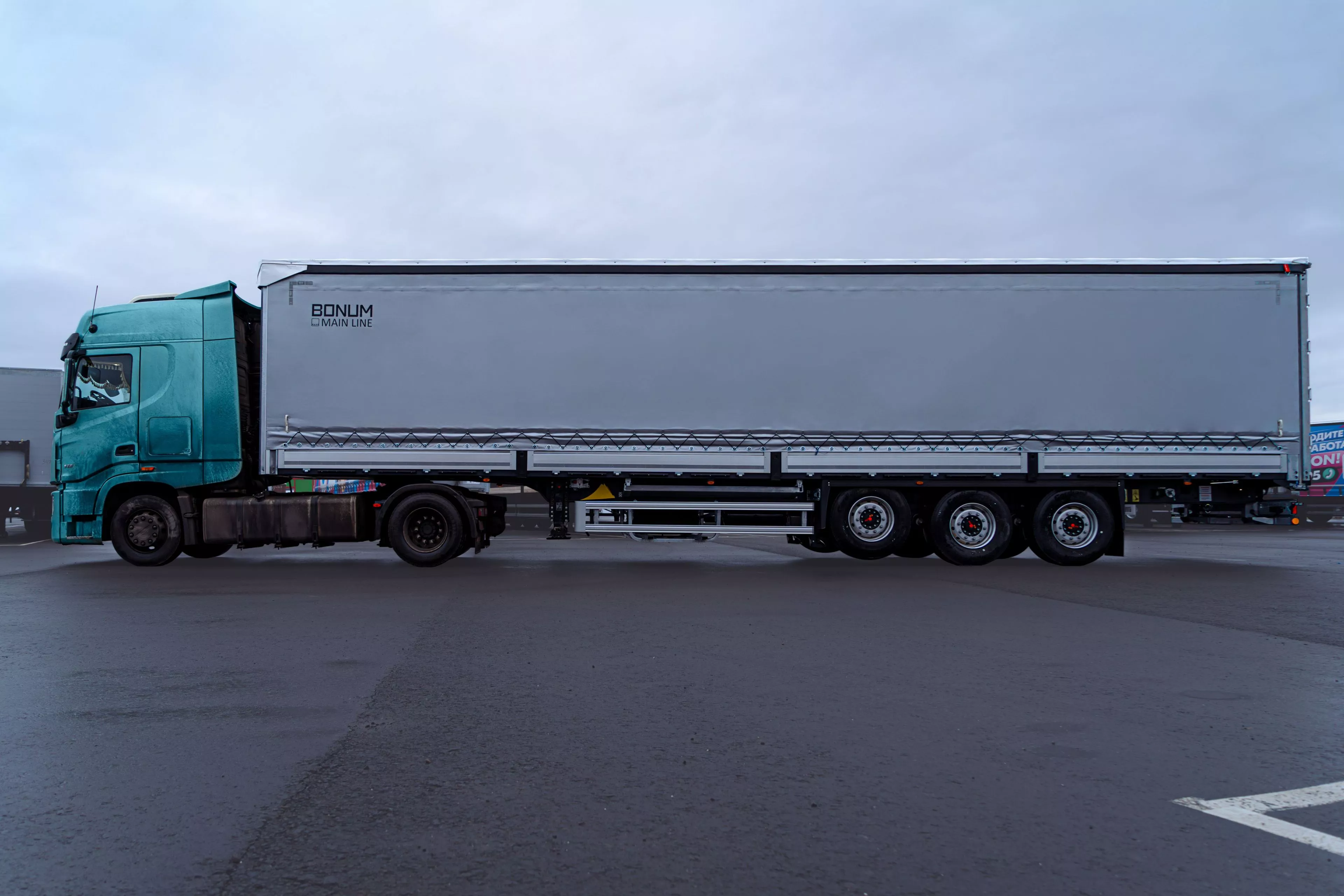

Photo gallery

Curtain-side semi-trailer 13,62 m for transporting steel rolls
Curtain-side semi-trailer 13,62 m for transporting steel rolls Curtain-side semi-trailer 13,62 m for transporting steel rolls
Curtain-side semi-trailer 13,62 m for transporting steel rolls
Curtain-side semi-trailer 13,62 m for transporting steel rolls Curtain-side semi-trailer 13,62 m for transporting steel rolls
Curtain-side semi-trailer 13,62 m for transporting steel rolls
Curtain-side semi-trailer 13,62 m for transporting steel rolls Curtain-side semi-trailer 13,62 m for transporting steel rolls
Curtain-side semi-trailer 13,62 m for transporting steel rolls
Curtain-side semi-trailer 13,62 m for transporting steel rolls

Technical data

  • Volume

    91 m3

  • Overall dimensions

    length 13,920 mm

    width 2,550 mm

    height 4,000 mm

  • Type of equipment

    awning semi-trailer

  • Curb weight

    from 7,700 kg

  • Electrical equipment

    Aspoeck / Hella / Ermax or similar

  • Brake system

    pneumatic two-circuit

  • Painting

    the frame is painted according to the proprietary three-stage painting system
    «Prime System»
    • surface treatment in a shot blasting chamber
    • coating with a primer containing anticorrosive elements
    • painting with premium enamel

  • Suspension and tires

    3 axes
    drum/disc type brake mechanisms
    tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 6 pc

  • Awning and roof

    • side awning (gray/silver) made of high-strength PVC fabric 680 gr./m2 of European production

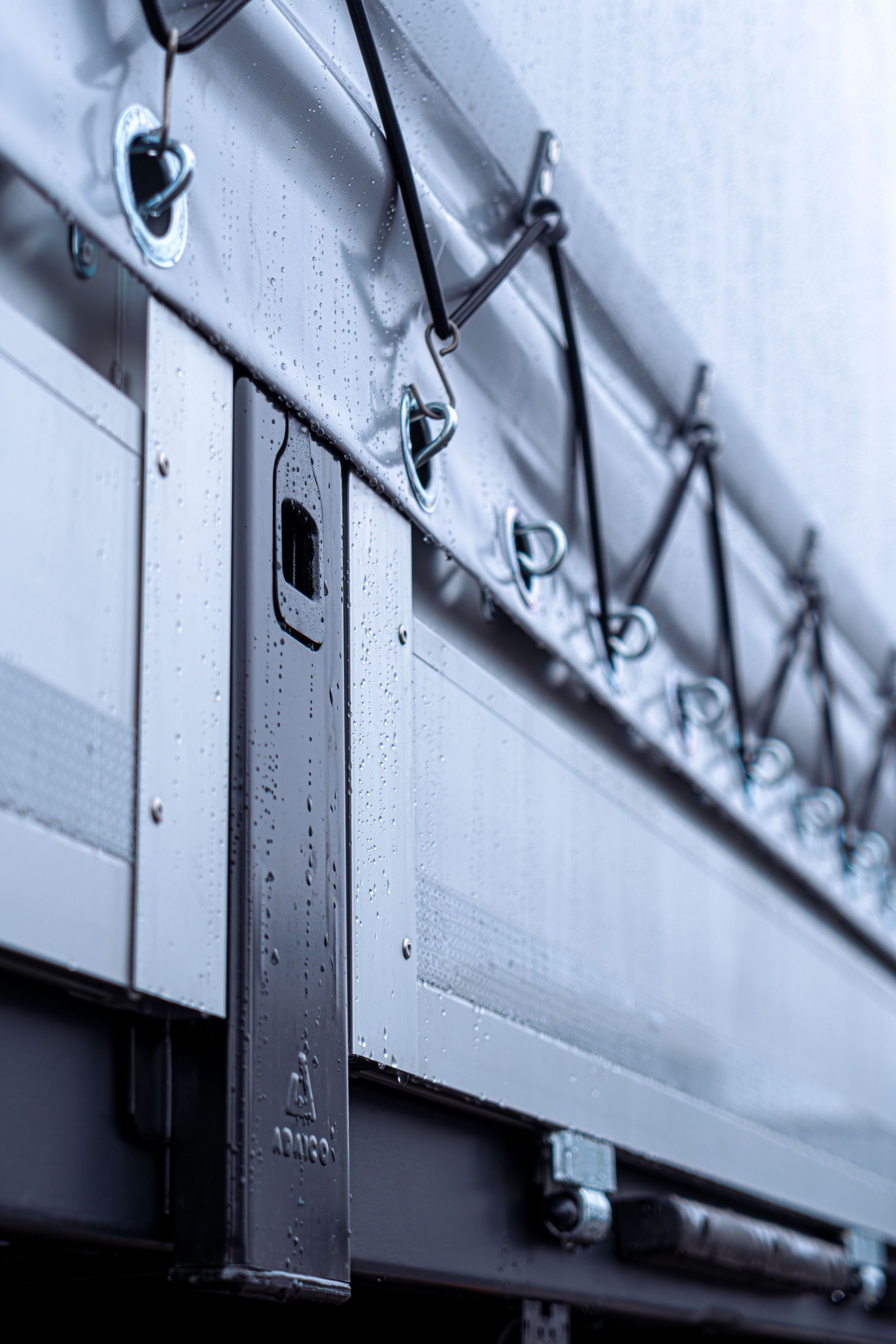

    • side awning tensioning mechanisms (European production) – in the rear on both sides
    • roof awning (white) made of PVC fabric with a density of 680 gr./m2 of European production
    • movable roof of European production

  • Add - on

    • front portal made of aluminum profile with steel posts
    • aluminum sides with a height of 600 mm
    • rear aluminum swing gates with 4 locks (2 per leaf) and steel posts
    • 3 pairs of side sliding racks with pockets under the crate
    • sealing cord
    • reflective marking
    • crate
View all
Construction
Equipment
Extra options
Construction
  • welded frame of reinforced construction made of high-strength steel;
  • international type 2” pin JOST / SAF / OMS bran or equivalent;
  • glasses for cones 80x80 mm around the perimeter of the frame;
  • cassette / conic storage box;

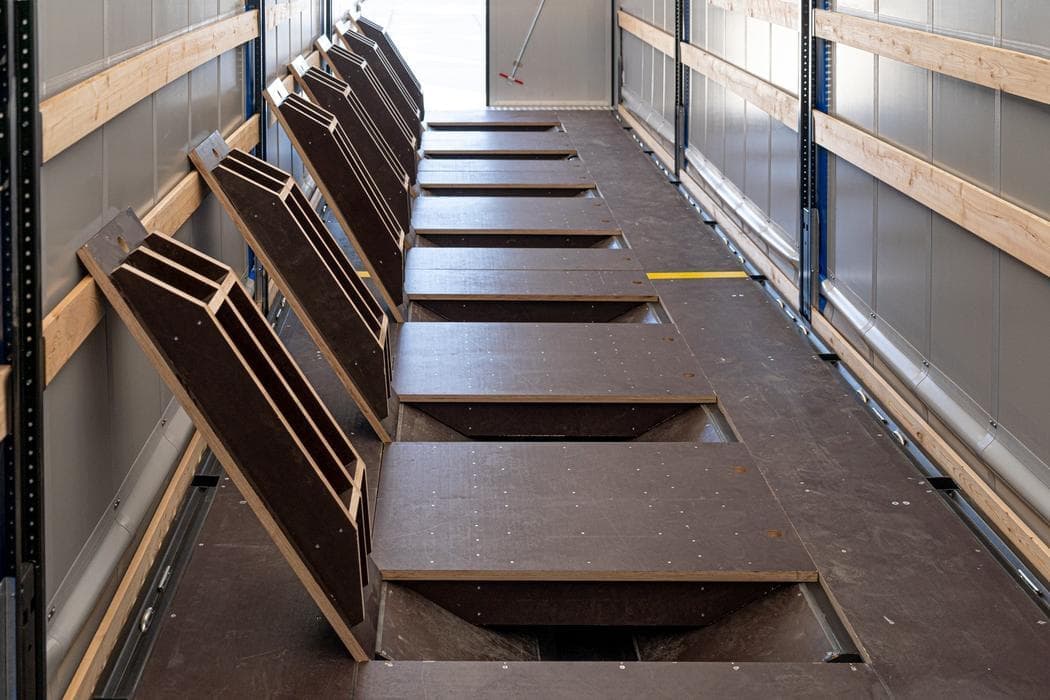

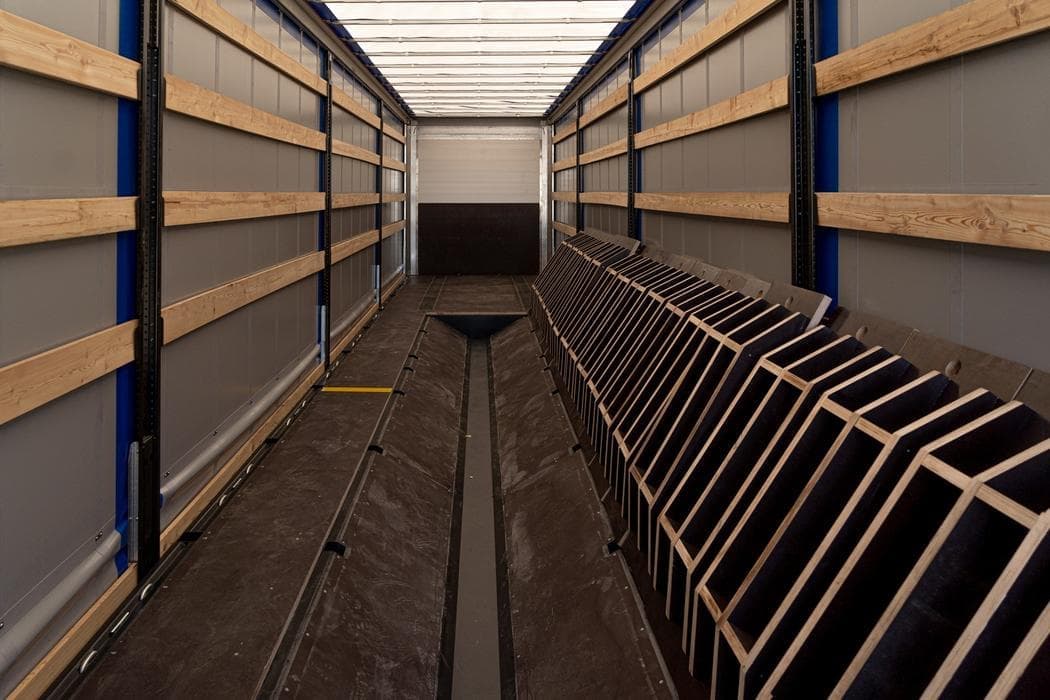

  • 9000 mm long chute for rolls with a diameter of 800...2200 mm;
  • glasses for cones 80x80 mm around the perimeter of the trough for rolls;
  • eyelets on the sides of the frame for fastening ordinary loads;
  • reinforced eyelets for fastening rolls;

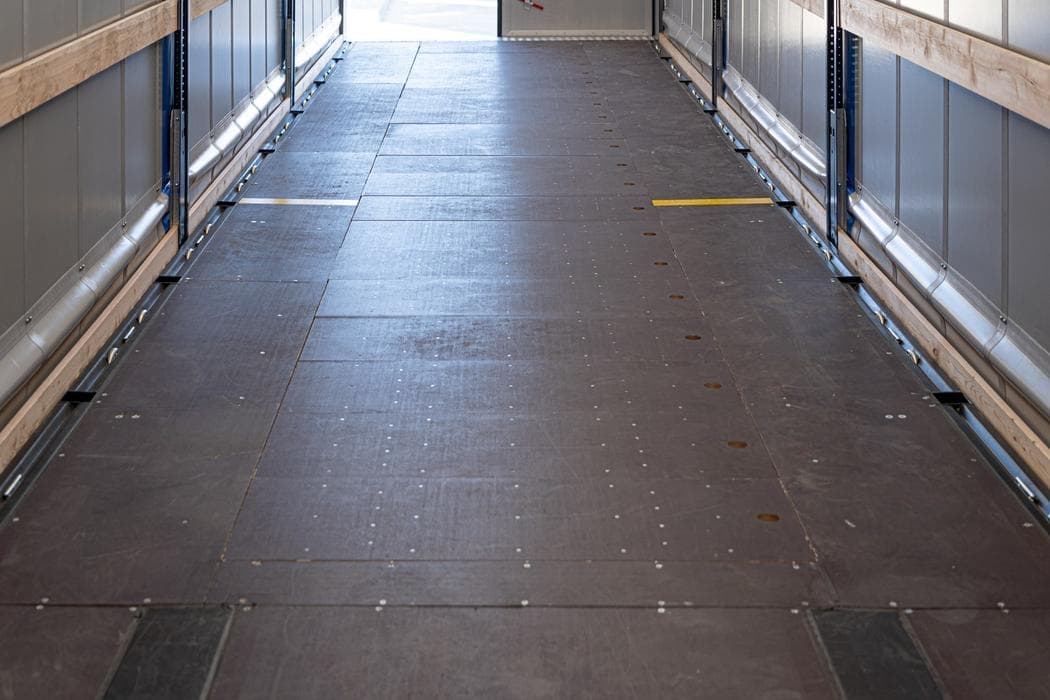

  • laminated plywood floor with a thickness of 27-30 mm;
  • removable plywood inserts covering the gutter;
  • two towing lugs in the rear of the frame;
  • the landing gear is two-speed with manual one-way drive;

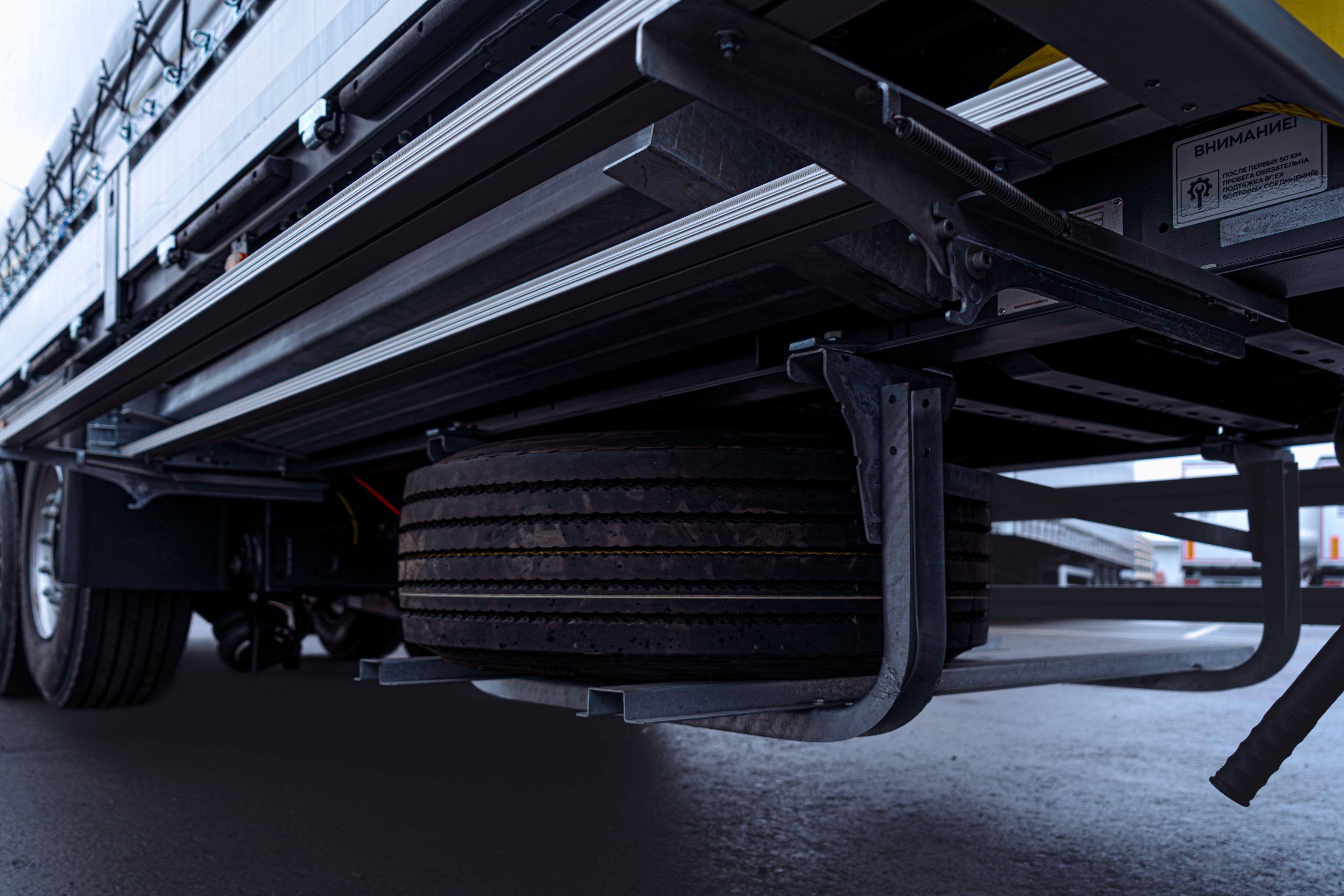

  • basket for two spare wheels;
  • side protection made of aluminum profile;
  • rear protective device with panel for lights;
  • retractable ladder in the rear of the semi-trailer.
Equipment
Domar / Parlok / Lago wings or similar
Lokhen anti-rollback stops or similar
2 pcs pcs
tool box Daken / Parlok / Lago or an analog with a locking mechanism
Extra options
They are selected based on your wishes and the specifics of your business
TIR version of the curtain-side semi-trailer
Painting of the semi-trailer according to the customer's layout (branding)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Installation of a metal tool box Bawer 550х440х330 (TD251549)
Installation of a metal tool box Bawer 730х580х470 (TD252077)
Tool box Daken Welvet 1000 (81008022) 1030x500x455 mm, 155.5 l
Tool box Daken Welvet 500 (81002) 480x400x400 mm, 39.5 l
Galvanized cones (manufactured in Russia) 10 pcs. 80x80x2300 mm
Installation of pockets for danger signs (3 diamonds)
Installation of a pencil case for a fire extinguisher (including an OP-6 fire extinguisher)
Wooden crate for awning semi-trailer (set – 32 pcs.)
Aluminum board for crate 1 pc. (standard set – 32 pcs.)

Equipment

Domar / Parlok / Lago wings or similar
Lokhen anti-rollback stops or similar
2 pcs pcs
tool box Daken / Parlok / Lago or an analog with a locking mechanism

Construction

  • welded frame of reinforced construction made of high-strength steel;
  • international type 2” pin JOST / SAF / OMS bran or equivalent;
  • glasses for cones 80x80 mm around the perimeter of the frame;
  • cassette / conic storage box;
  • 9000 mm long chute for rolls with a diameter of 800...2200 mm;
  • glasses for cones 80x80 mm around the perimeter of the trough for rolls;
  • eyelets on the sides of the frame for fastening ordinary loads;
  • reinforced eyelets for fastening rolls;
  • laminated plywood floor with a thickness of 27-30 mm;
  • removable plywood inserts covering the gutter;
  • two towing lugs in the rear of the frame;
  • the landing gear is two-speed with manual one-way drive;
  • basket for two spare wheels;
  • side protection made of aluminum profile;
  • rear protective device with panel for lights;
  • retractable ladder in the rear of the semi-trailer.

Extra options

They are selected based on your wishes and the specifics of your business
TIR version of the curtain-side semi-trailer
Painting of the semi-trailer according to the customer's layout (branding)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Installation of a metal tool box Bawer 550х440х330 (TD251549)
Installation of a metal tool box Bawer 730х580х470 (TD252077)
Tool box Daken Welvet 1000 (81008022) 1030x500x455 mm, 155.5 l
Tool box Daken Welvet 500 (81002) 480x400x400 mm, 39.5 l
Galvanized cones (manufactured in Russia) 10 pcs. 80x80x2300 mm
Installation of pockets for danger signs (3 diamonds)
Installation of a pencil case for a fire extinguisher (including an OP-6 fire extinguisher)
Wooden crate for awning semi-trailer (set – 32 pcs.)
Aluminum board for crate 1 pc. (standard set – 32 pcs.)
