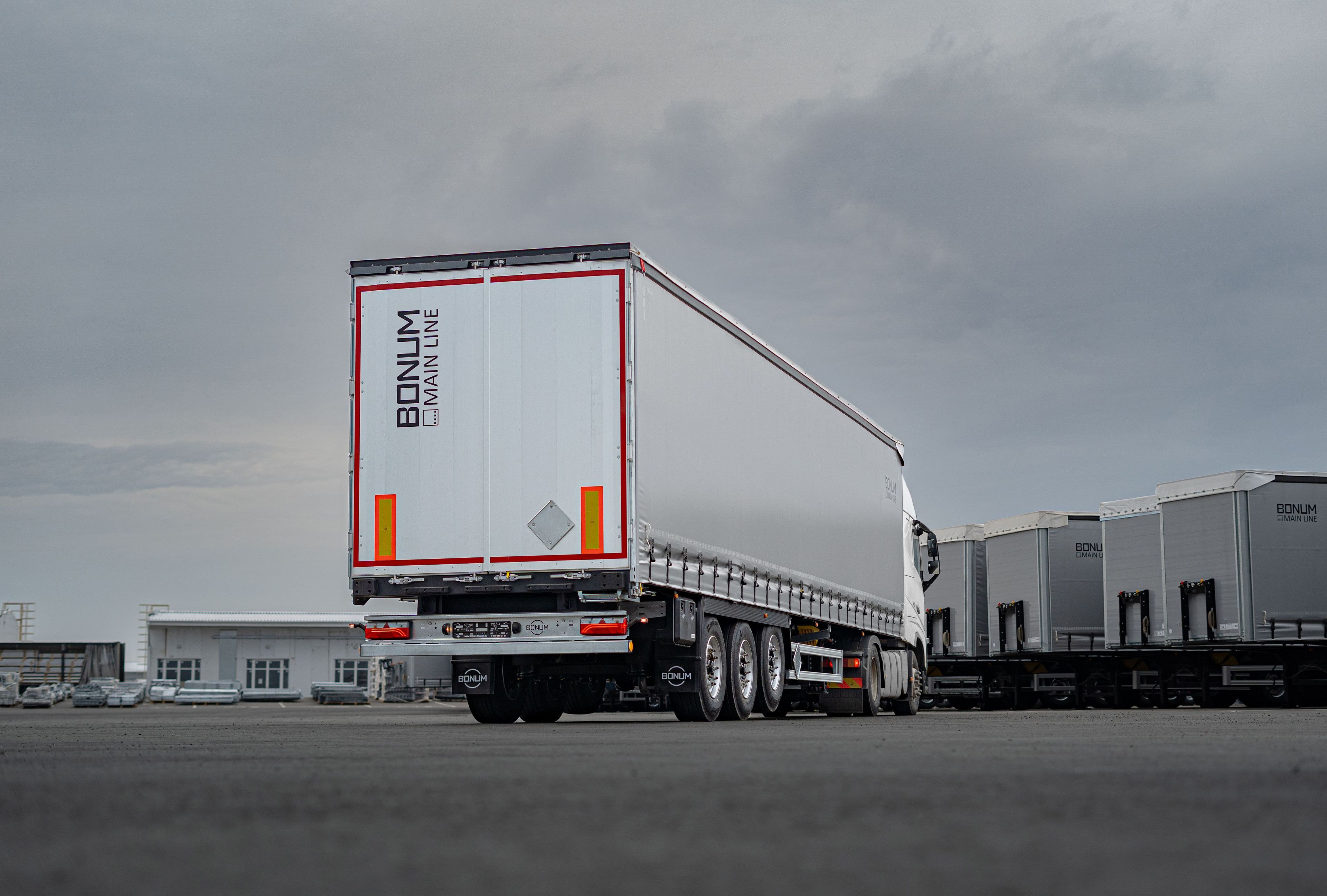

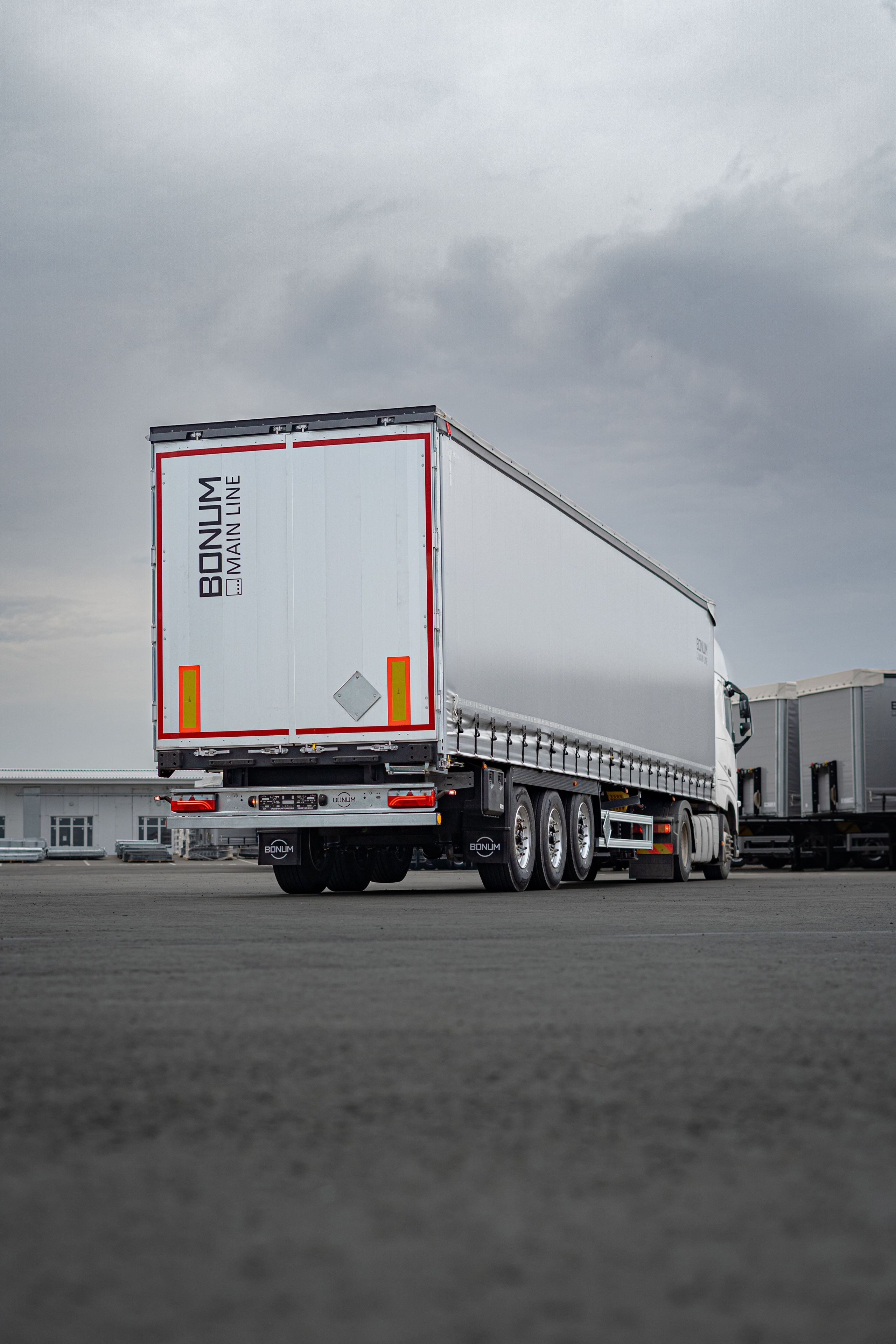

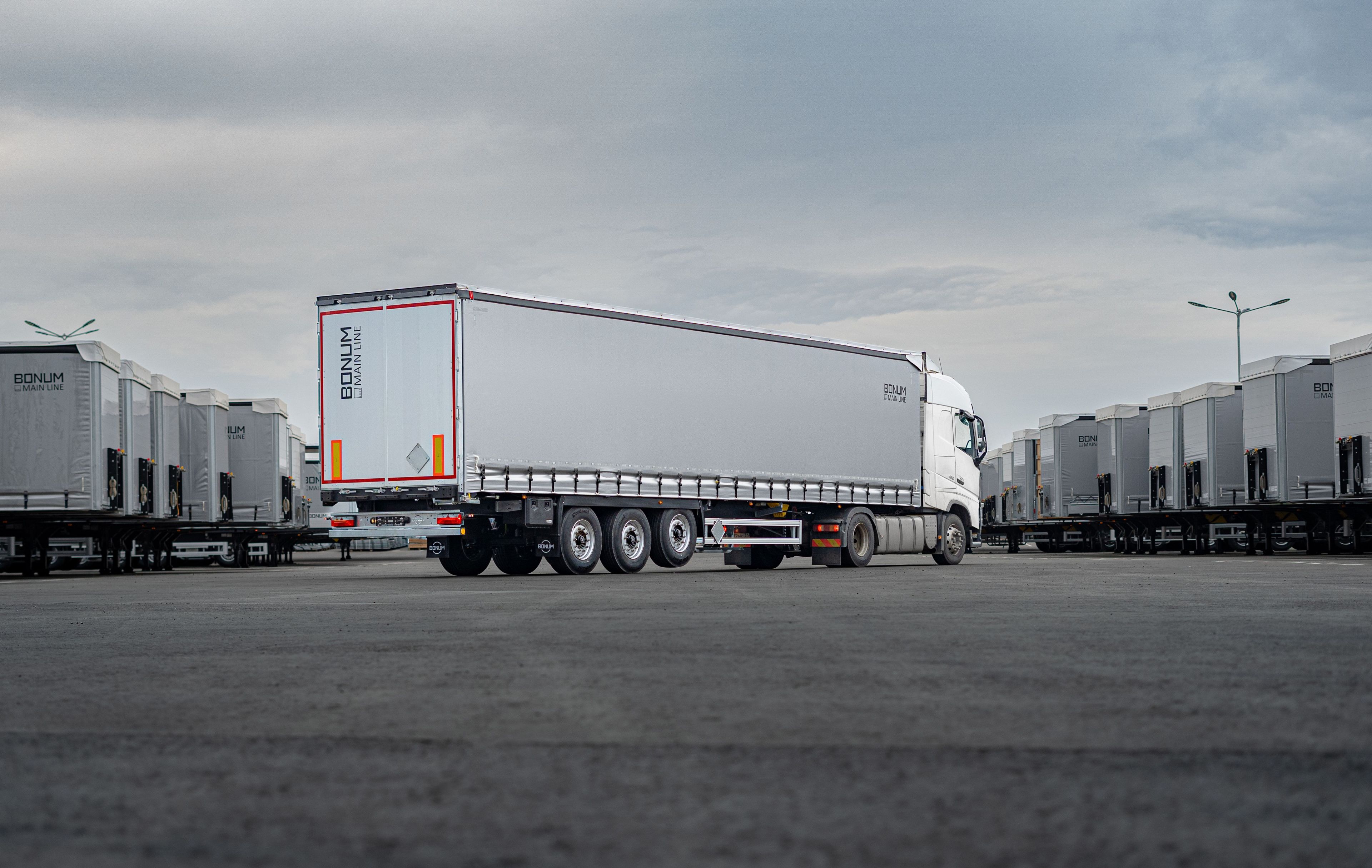

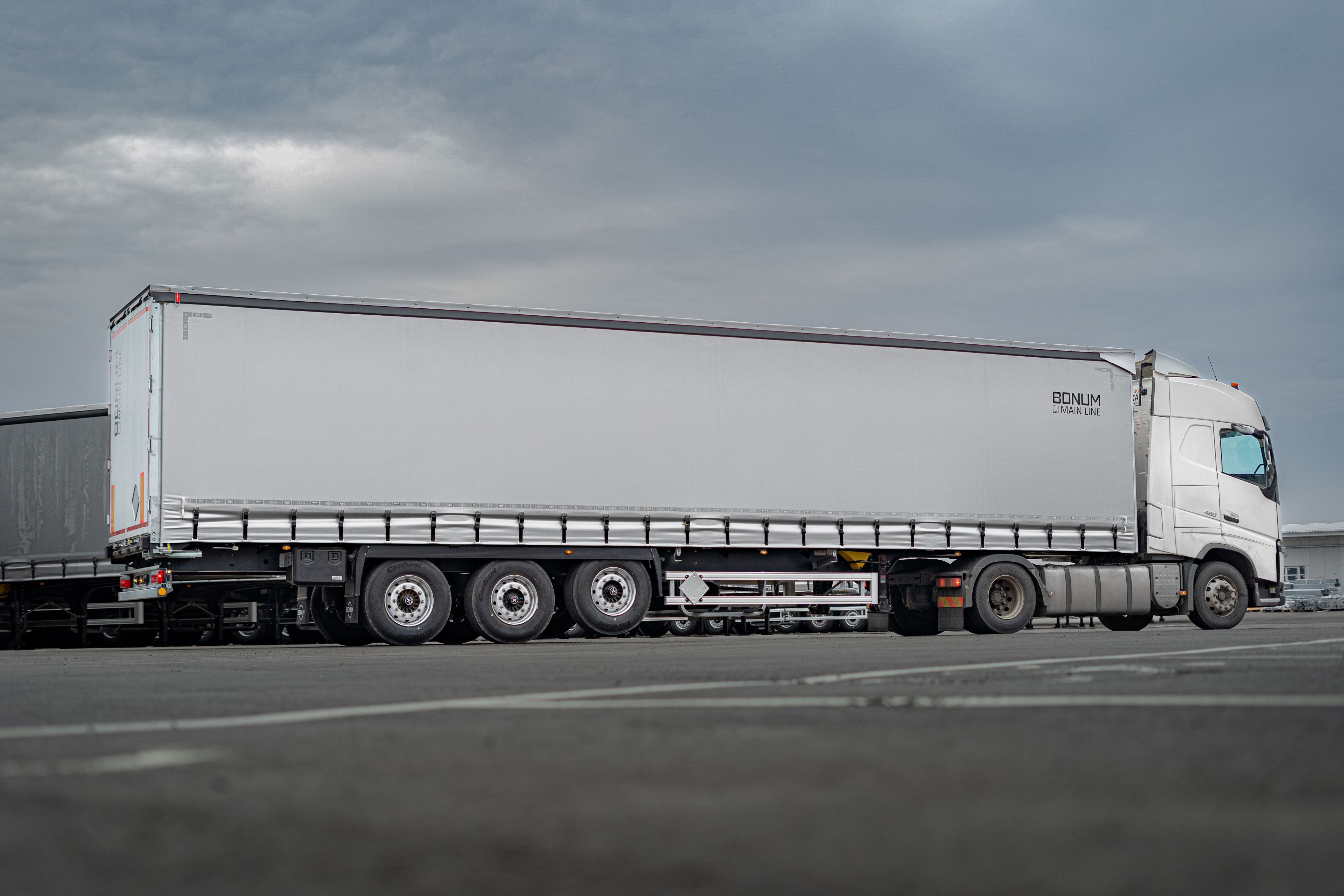

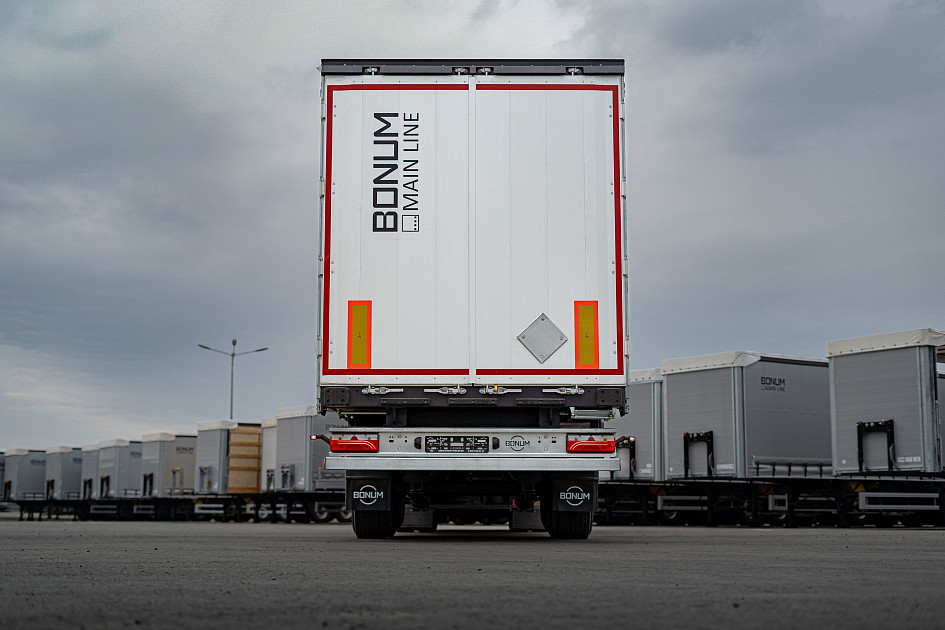

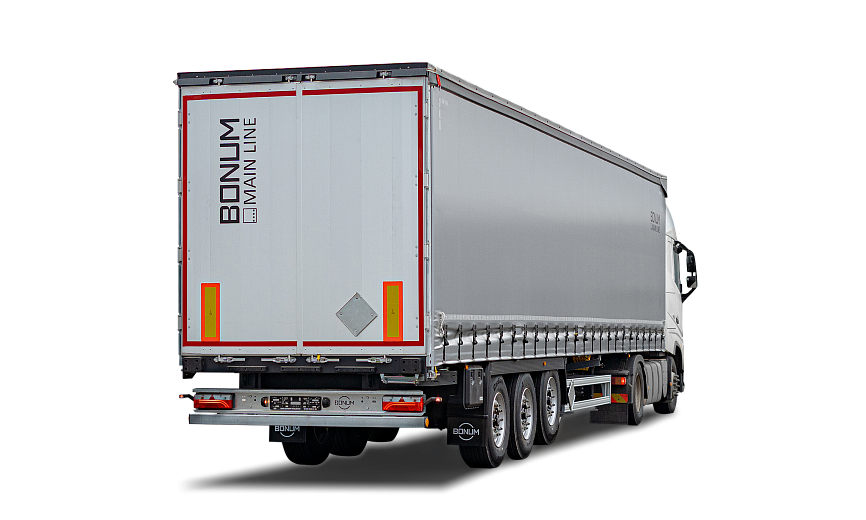

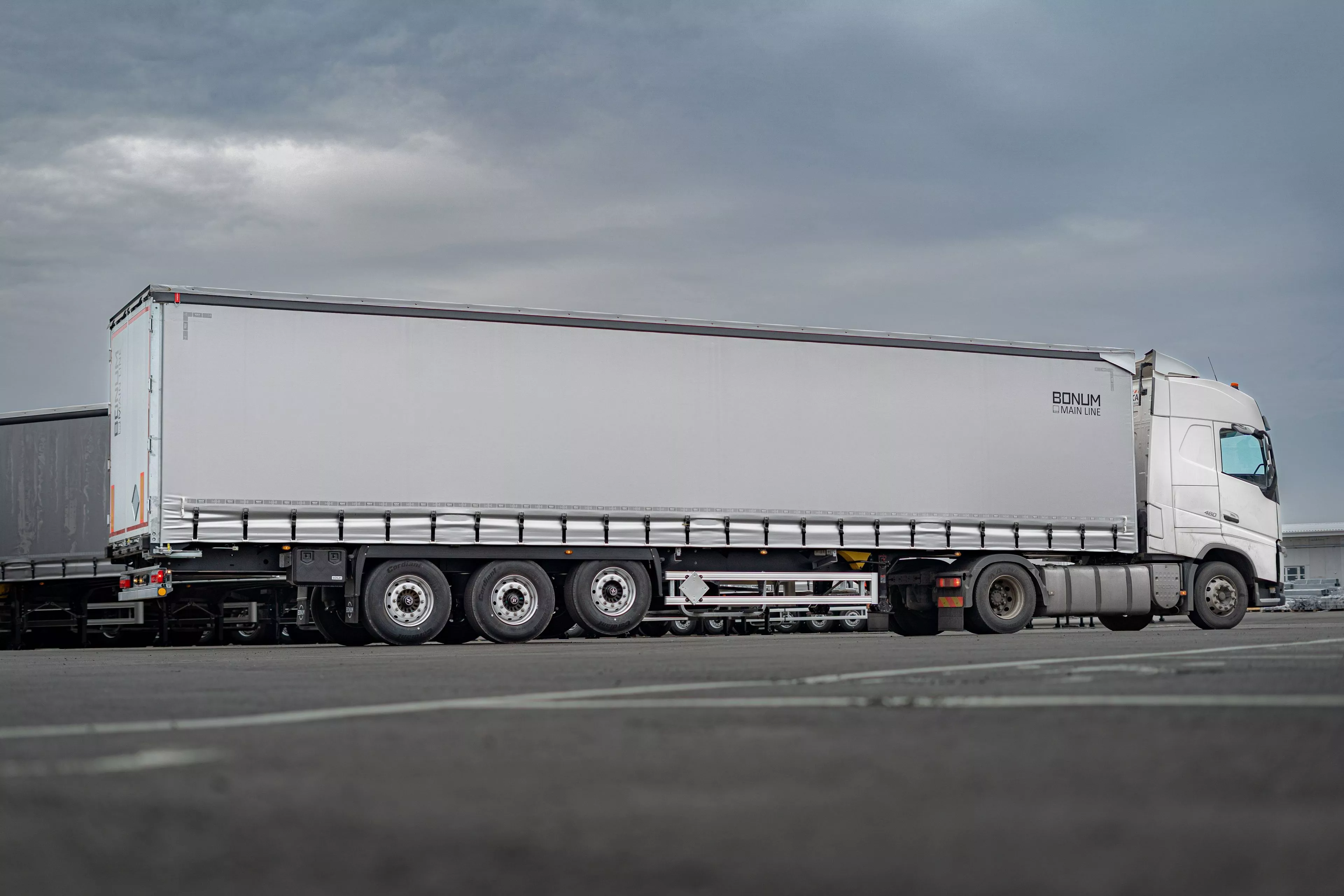

Curtain semi-trailer 13,62 m for transporting of dangerous goods
Photo gallery
Technical data
-
Volume
91 m3 -
Overall dimensions
length 13,920 mm
width 2,550 mm
height 4,000 mm -
Type of equipment
awning semi-trailer -
Curb weight
from 6,700 kg
-
Electrical equipment
Aspoeck / Hella / Ermax or similar
-
Brake system
pneumatic two-circuit -
Painting
the frame is painted according to the proprietary three-stage painting system
«Prime System»
- surface treatment in a shot blasting chamber
- coating with a primer containing anticorrosive elements
- painting with premium enamel of European production
-

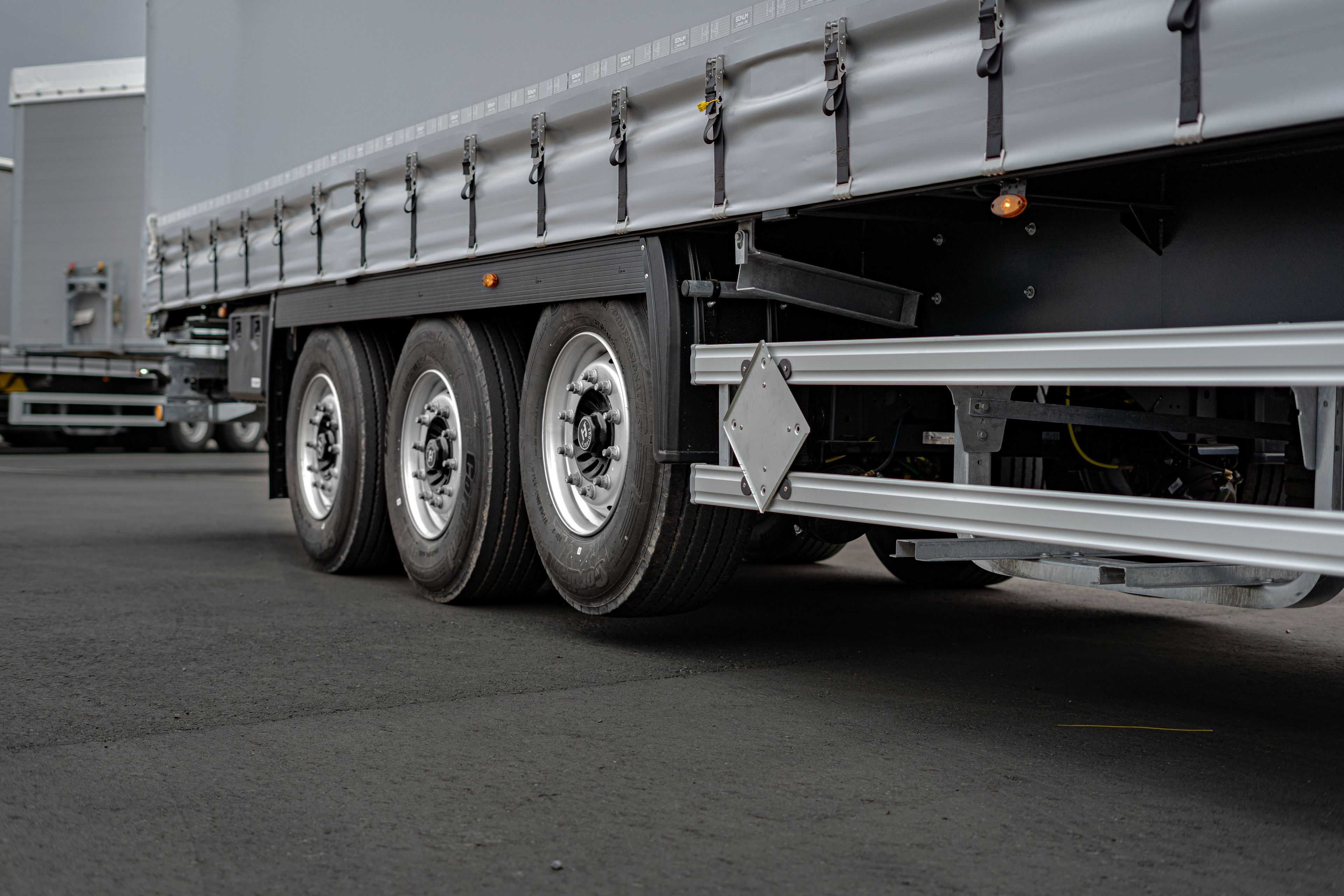

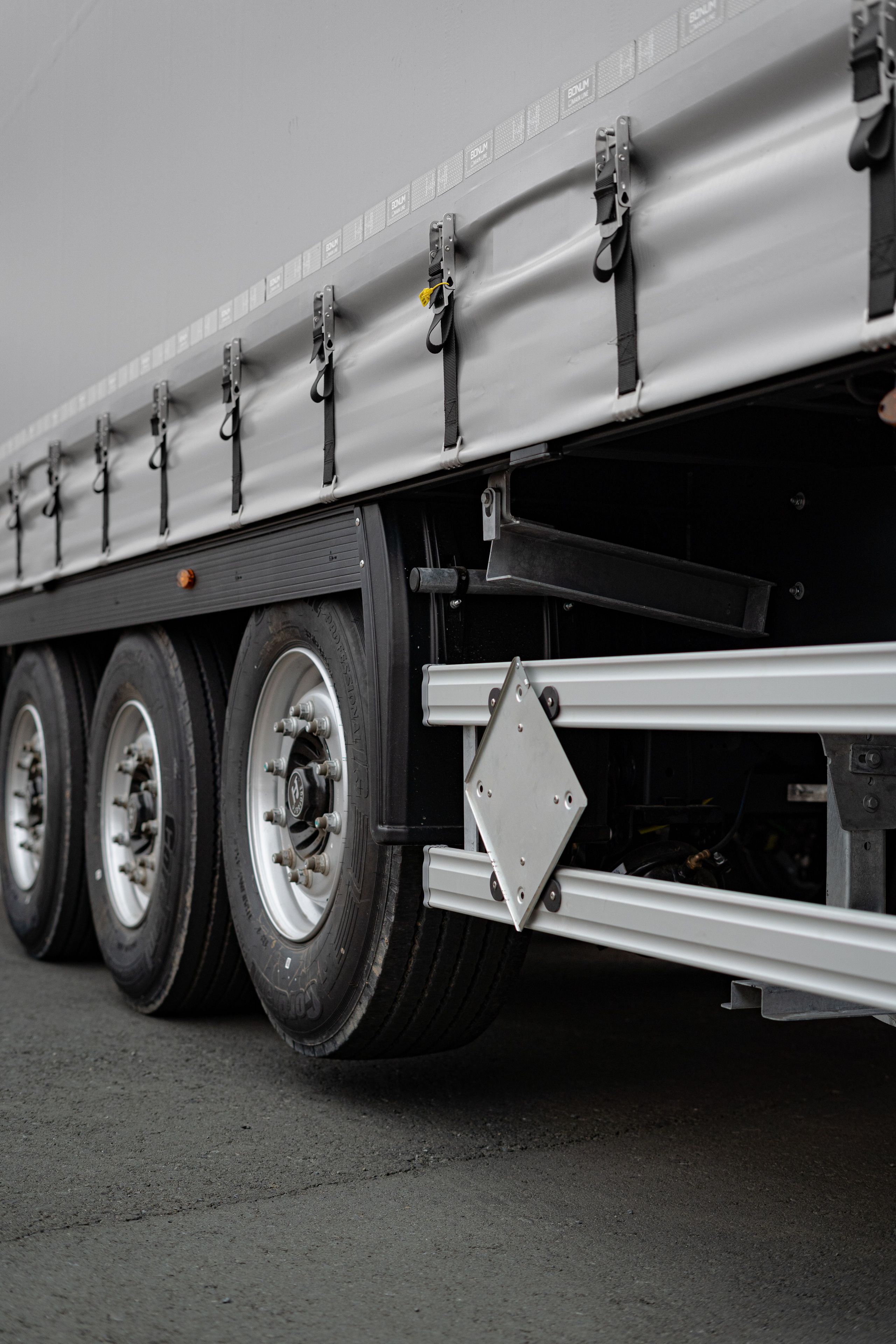

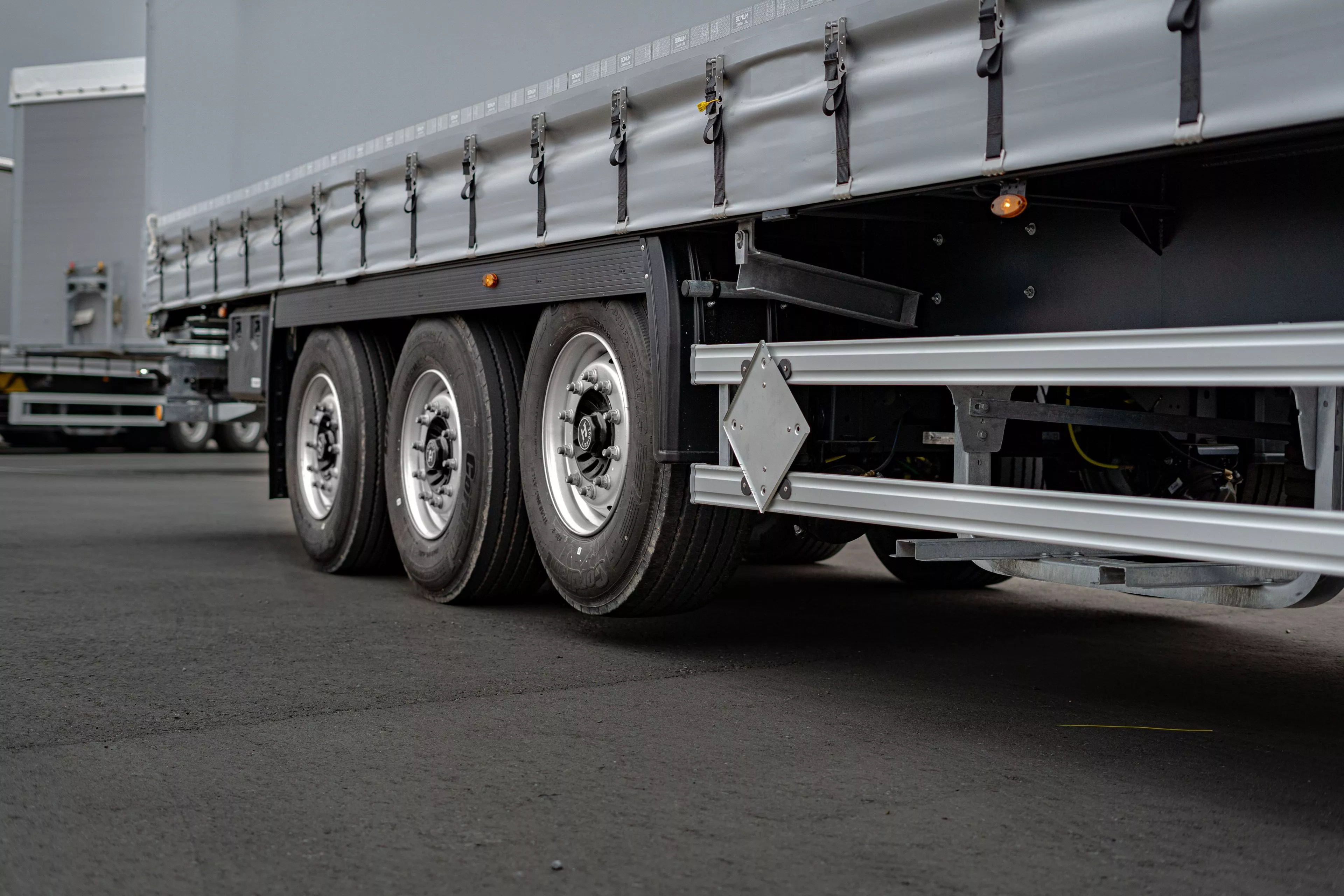

Suspension and tires
- 3 axes
- drum/disc type brake mechanisms
- tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 6 pc
-

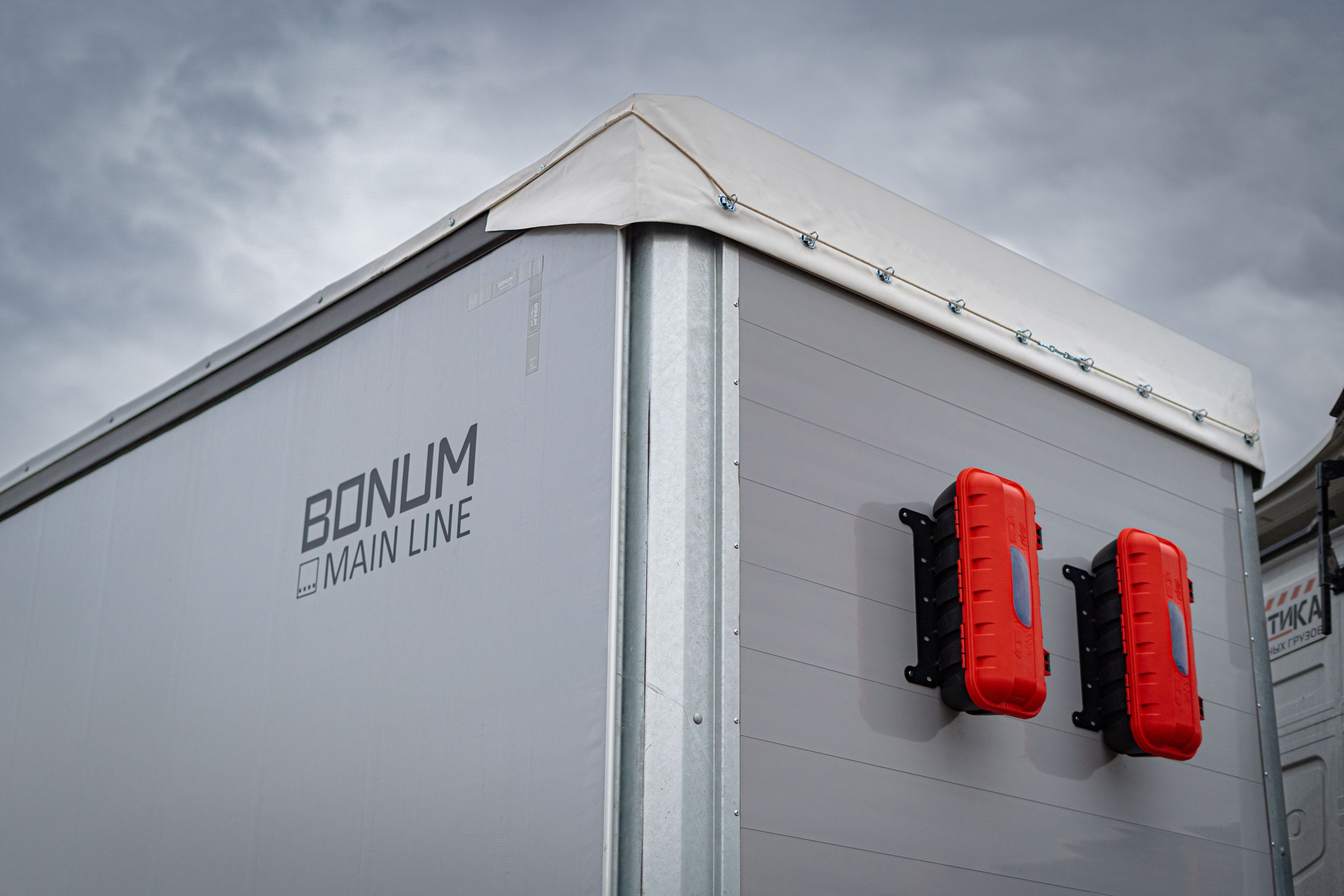

Awning and roof
- side awning (gray/silver) made of high-strength PVC fabric 900 gr./m2 of European production
- side awning tensioning mechanisms (European production) – in the rear on both sides
- roof awning (white) made of PVC fabric with a density of 680 gr./m2 of European production
- movable roof of European production
-
Add - on
- front portal made of aluminum profile with steel posts

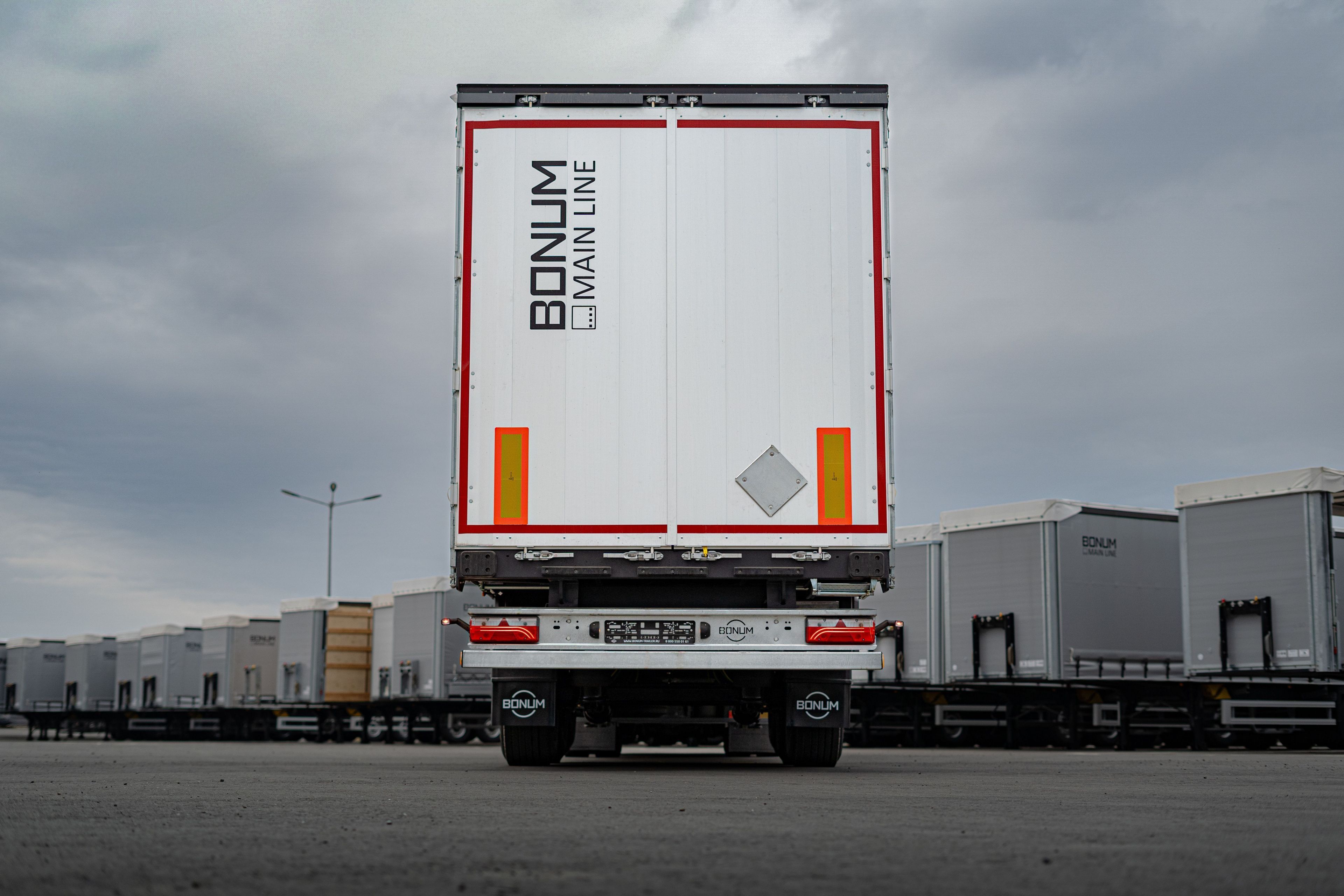

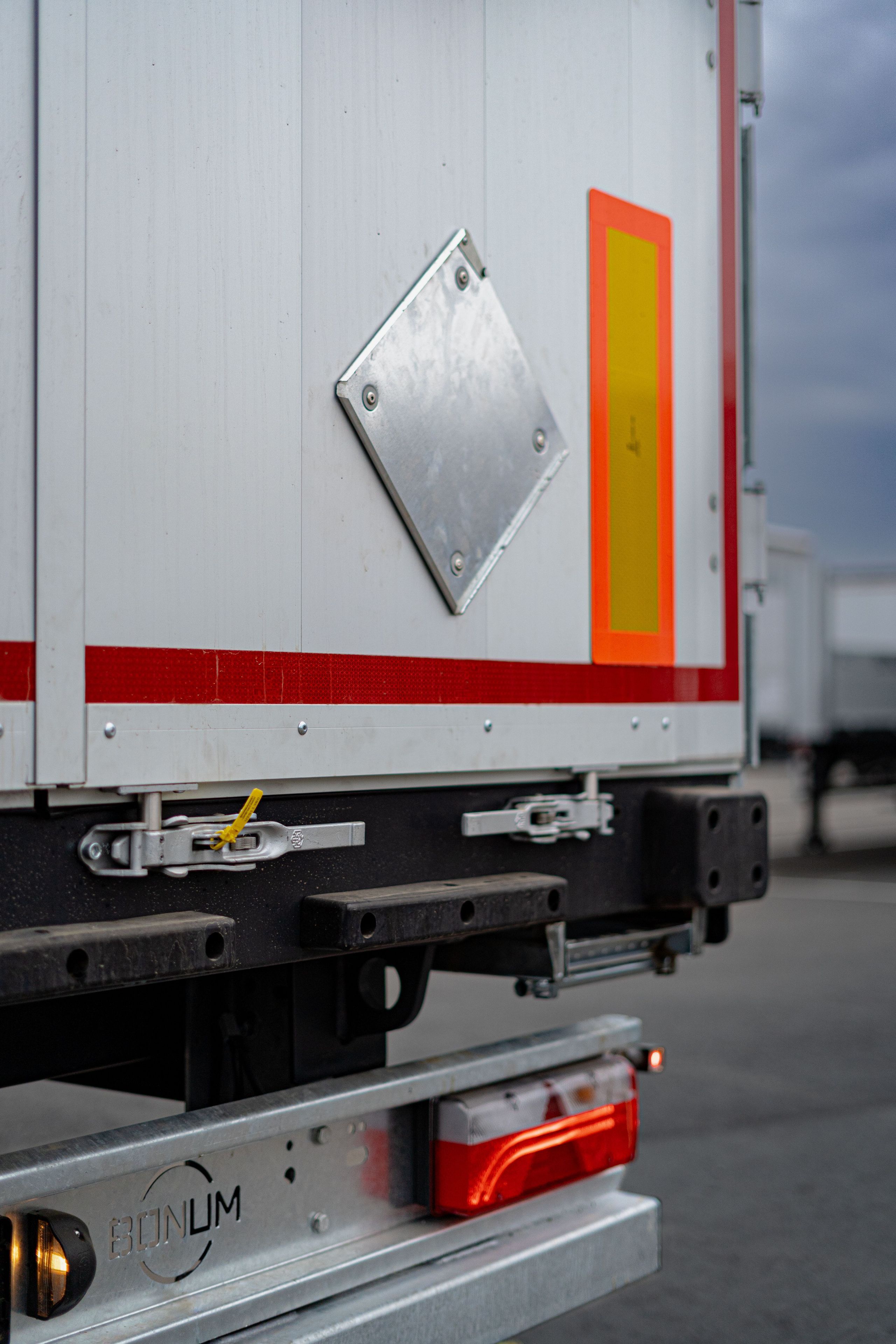

- rear aluminum swing gates with 4 locks (2 per leaf) and steel posts
- 3 pairs of side sliding racks with pockets under the crate
- laminated plywood floor with a thickness of 27-30 mm
- sealing cord
- reflective marking
- crate
