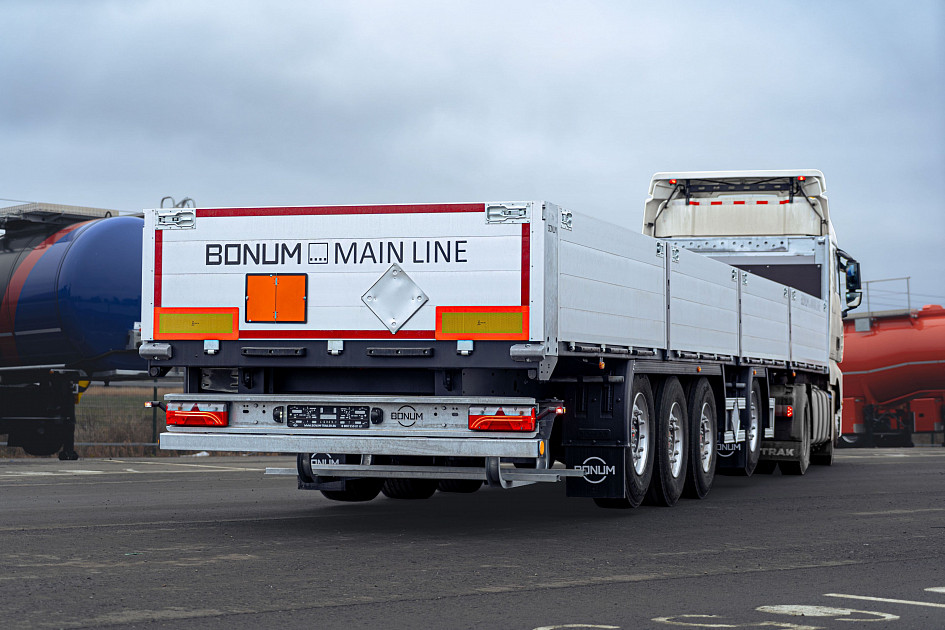

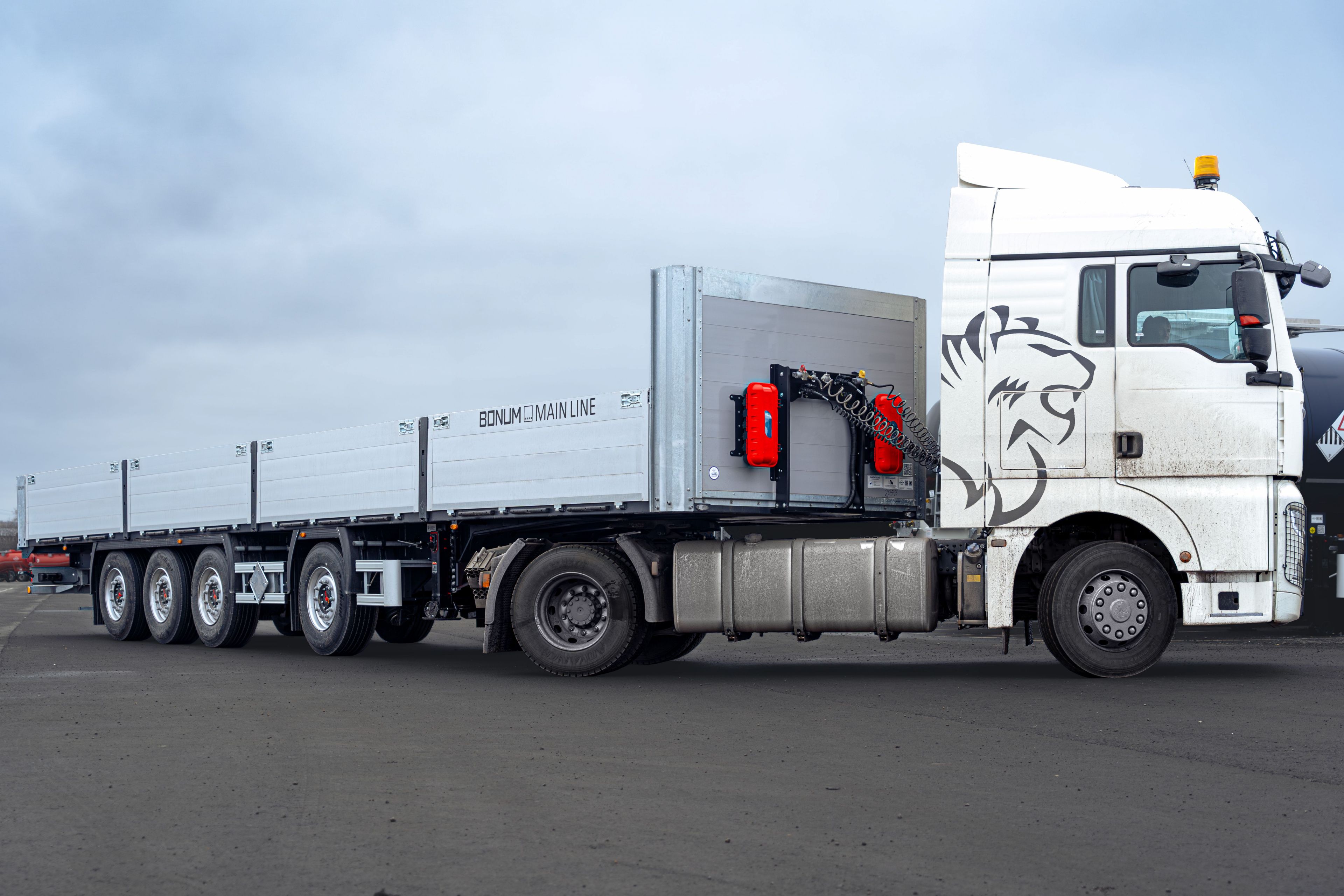

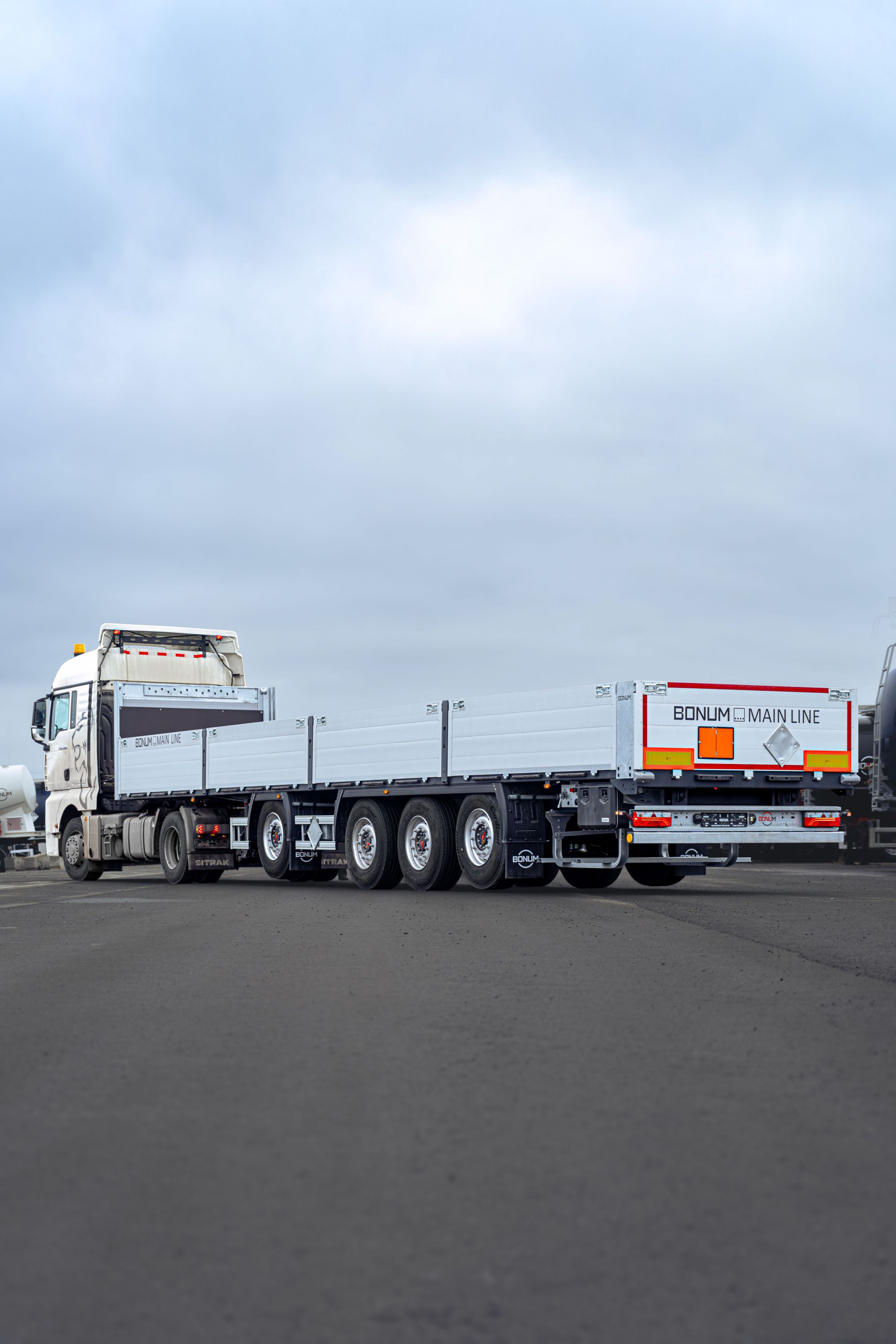

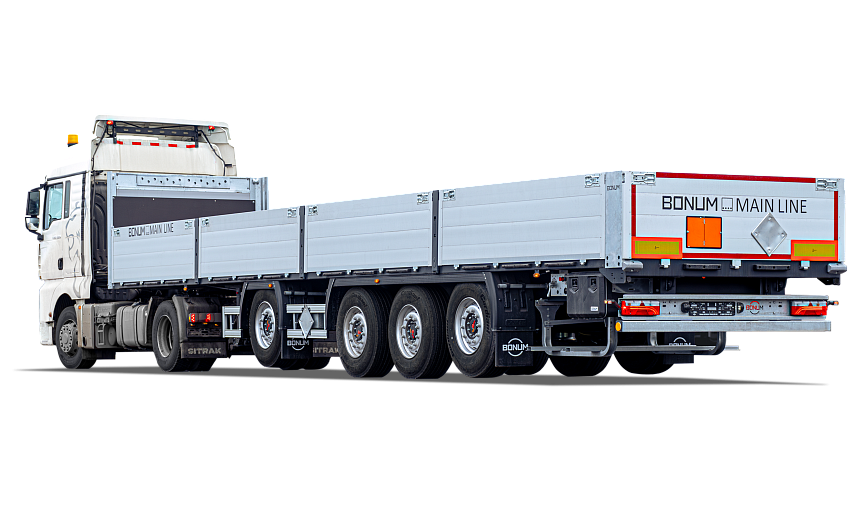

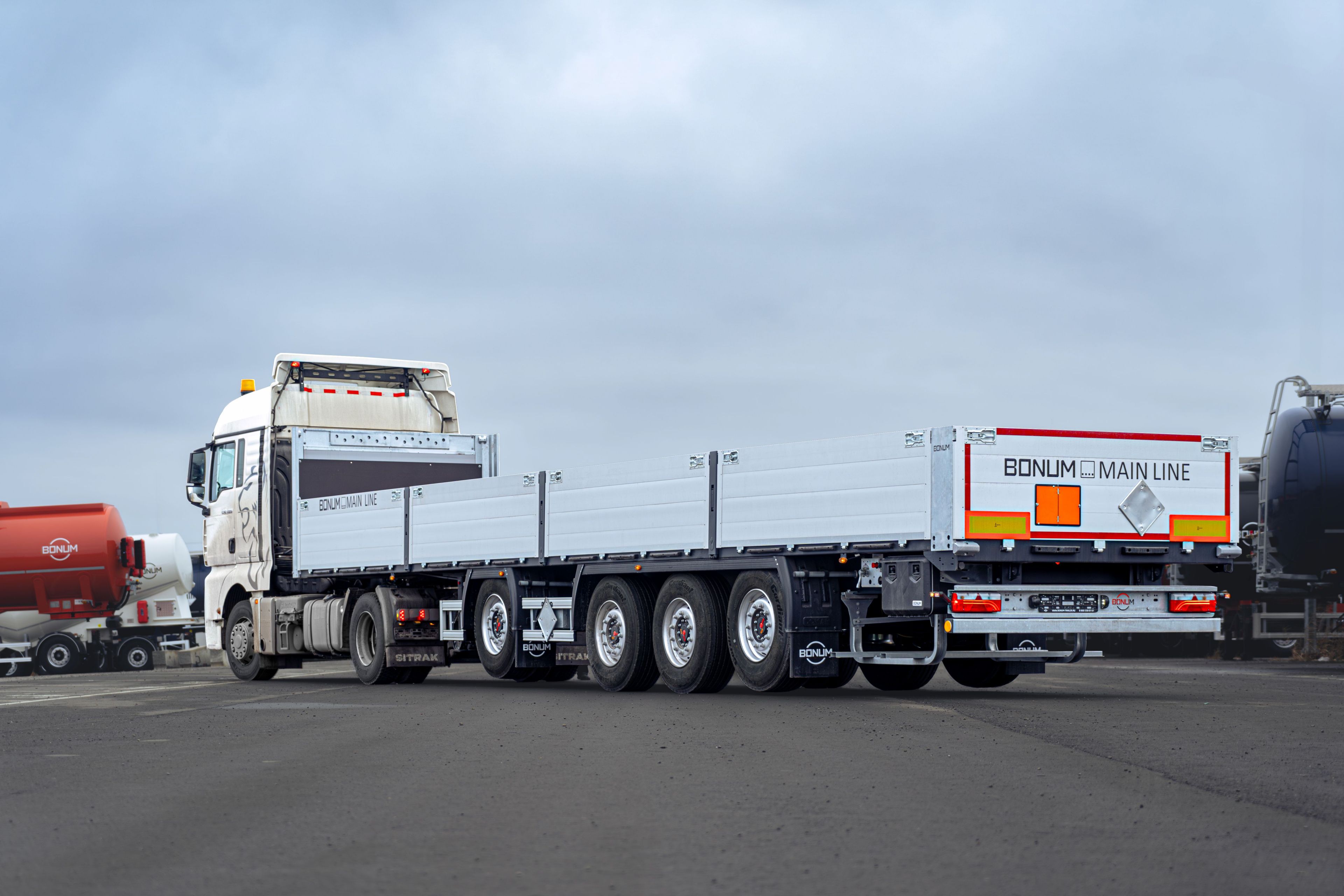

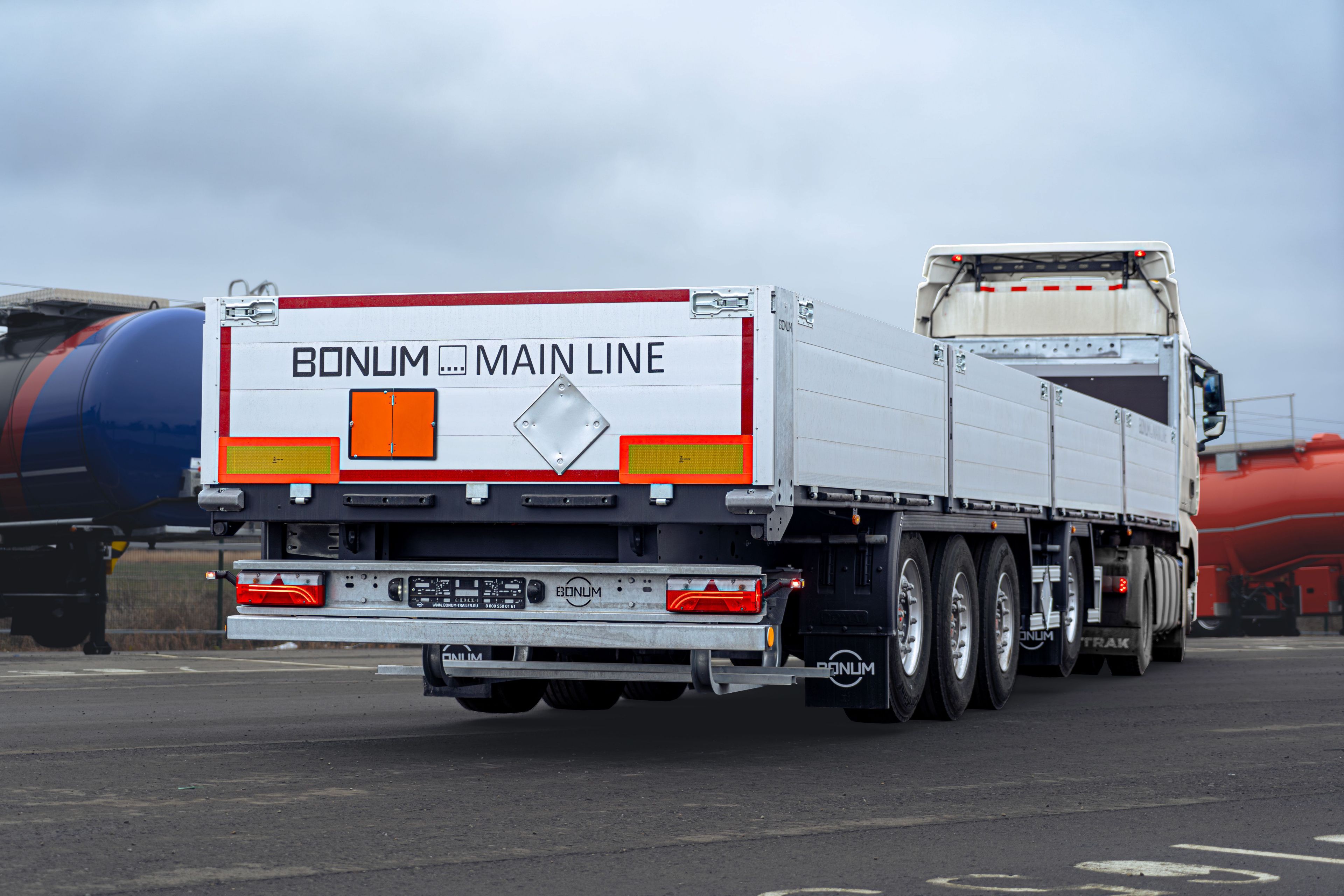

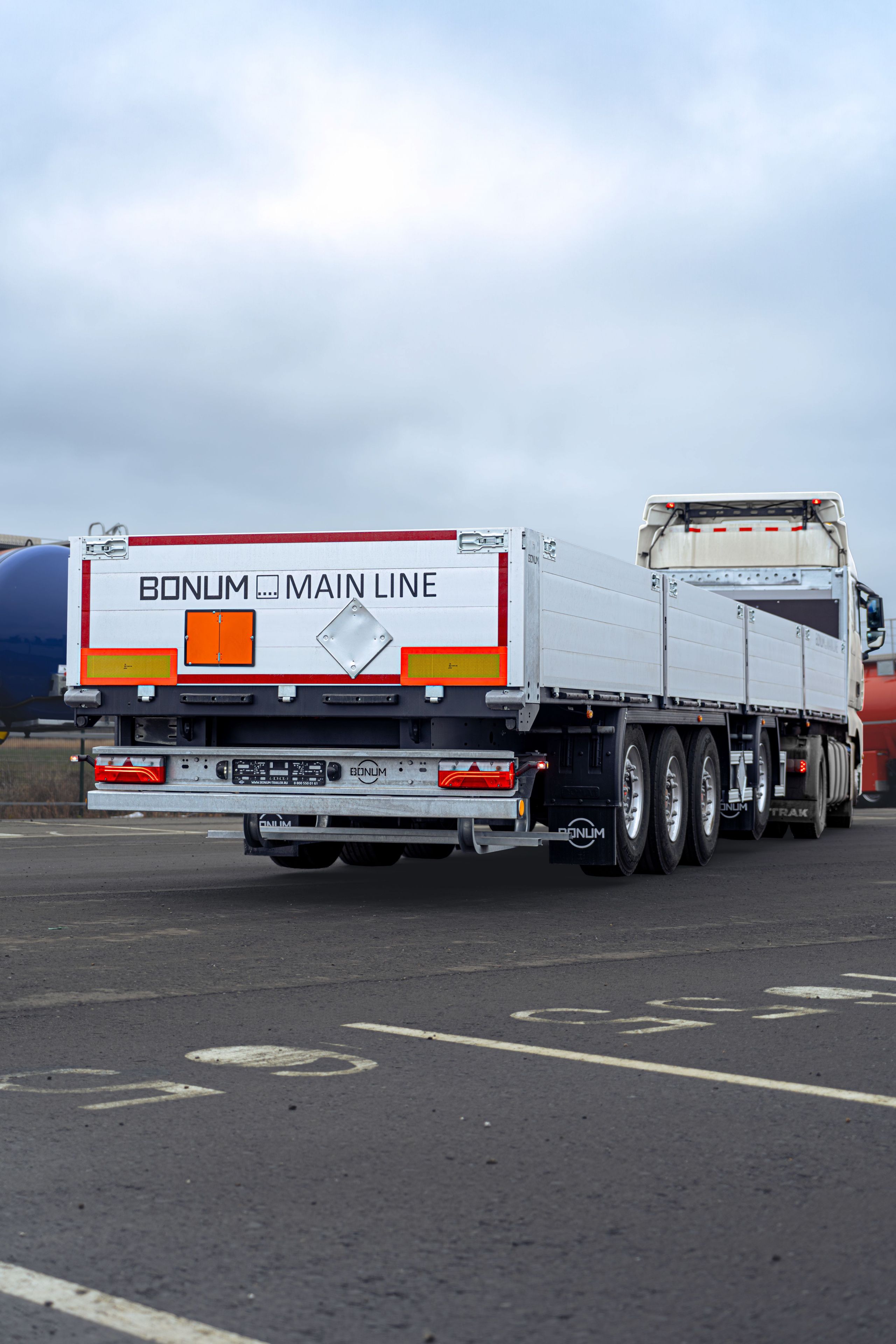

On-board semi-trailer 13,62 m with outrigger axle for transporting of dangerous goods
Photo gallery
Technical data
-
Curb weight
from 6,550 kg -
Type of equipment
on-board semi-trailer -
Overall dimensions
length 13,920 mm
width 2,550 mm
height from 2,455 / 2,655 mm
-
Electrical equipment
Aspoeck / Hella / Ermax or similar -
Brake system
pneumatic two-circuit -

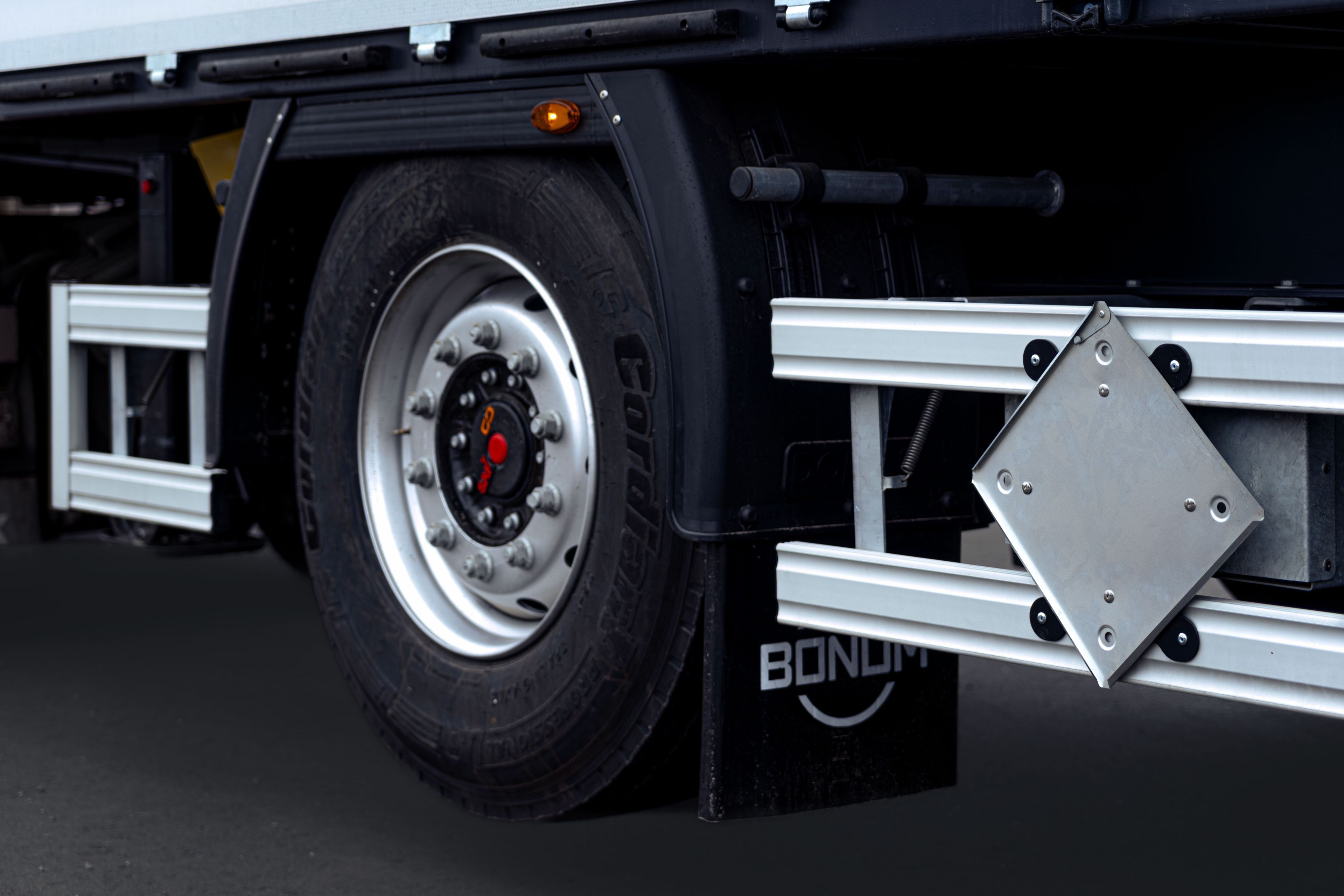

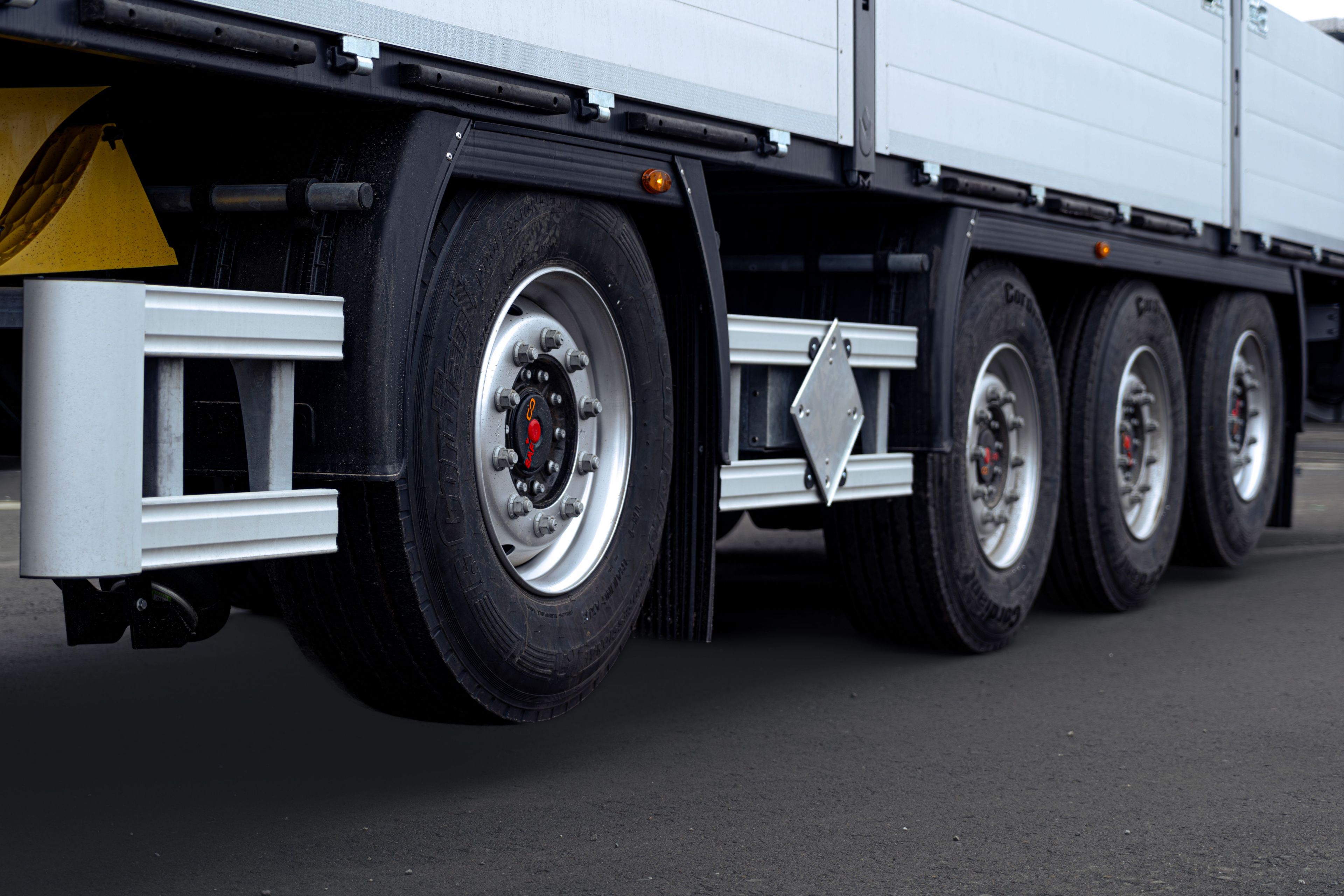

Suspension and tires
- 4 axes
- 2 lifting axles
- drum/disc type brake mechanisms
- tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 8 pcs
-
Painting
the frame is painted according to the proprietary three-stage painting system
«Prime System»
- surface treatment in a shot blasting chamber
- coating with a primer containing anticorrosive elements
- painting with premium enamel
-
Add - on
- 1200 mm / 1600 mm front portal made of aluminum profile with steel posts
- 8 aluminum side boards with a height of 600 mm / 800 mm
- 1 aluminum tailboard with a height of 600 mm / 800 mm
- 3 pairs of removable side racks, 2 rear racks
- reflective marking
