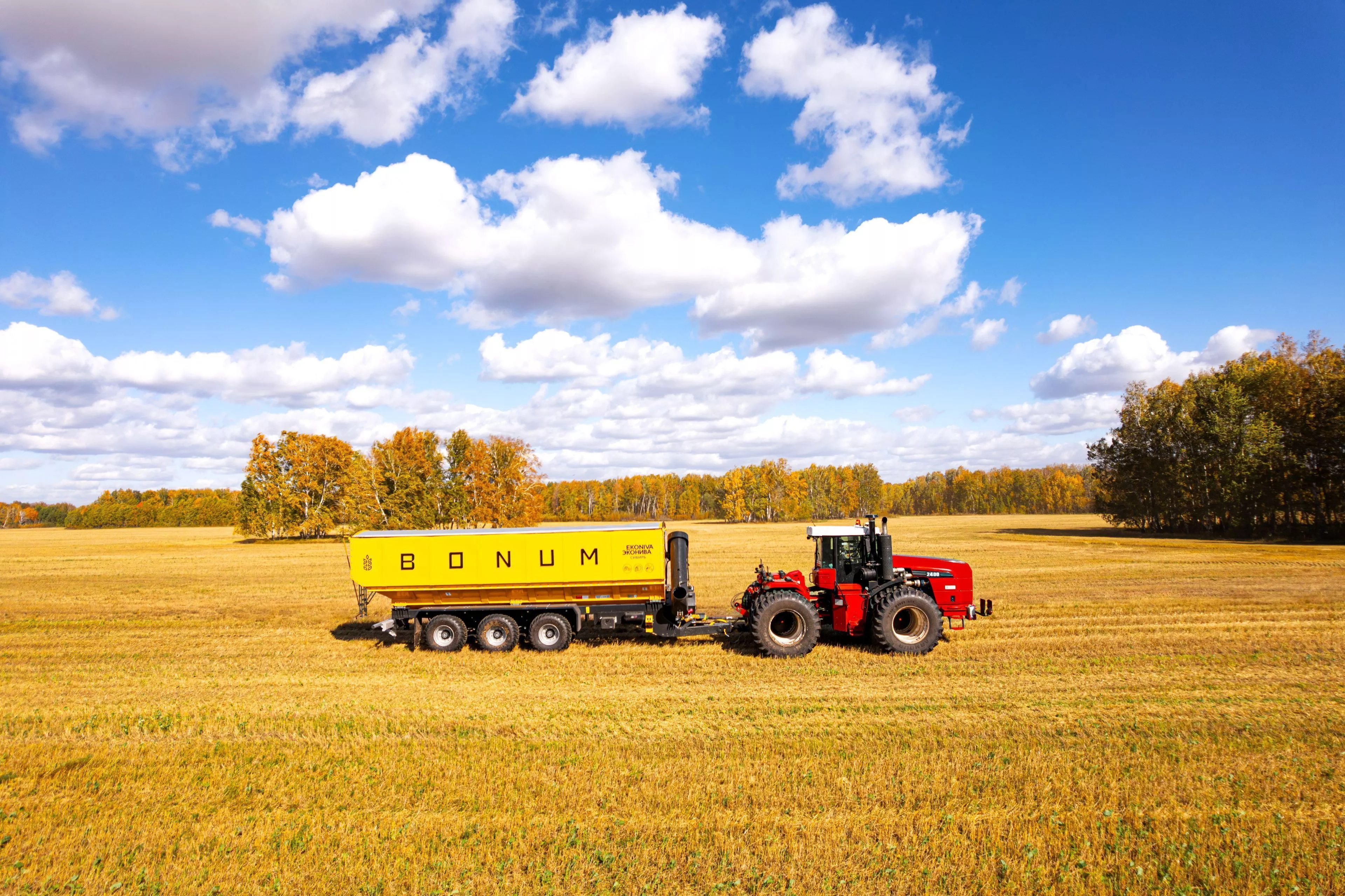

Hopper loader 40 m3
Photo gallery
Technical data
-
Volume
40 m3 -
Type of equipment
tractor semi-trailer -
Curb weight
from 9 500 kg -
Load capacity
30 000 kg
-
Number of axes
3 axes -
Overall dimensions
length: 11,700 mm
width: 2,550 mm
height: 3,750 mm -
Suspension and tires
- Alliance low-pressure tires or an analog (at the discretion of the manufacturer) of dimensions 600/55 R26.5, 550/60 R22.5, 560/60 R22.5;
- 3-axle suspension ADR (Italy) / Osman Koc (Turkey) / CYR (Turkey) or similar with pivoting high-strength axles.
-
Brake system
- pneumatic (single-circuit or double-circuit);
- drum type brakes.
-
Painting
THE HOPPER LOADER IS PAINTED ACCORDING TO THE PROPRIETARY THREE-STAGE PAINTING SYSTEM "PRIME SYSTEM":
- surface treatment in a shot blasting chamber;
- coating with a primer containing anticorrosive elements;
- painting with premium enamel.
-
Electrical equipment
- parking lights;
- illumination on the discharge screw (LED spotlight);
- illumination inside the body to control the filling level at night (LED spotlight);
- mains voltage - 12V.
